Smittybilt 76750 Installation Instructions

NOTE: Carefully read entire instructions thoroughly before attempting

Parts Included

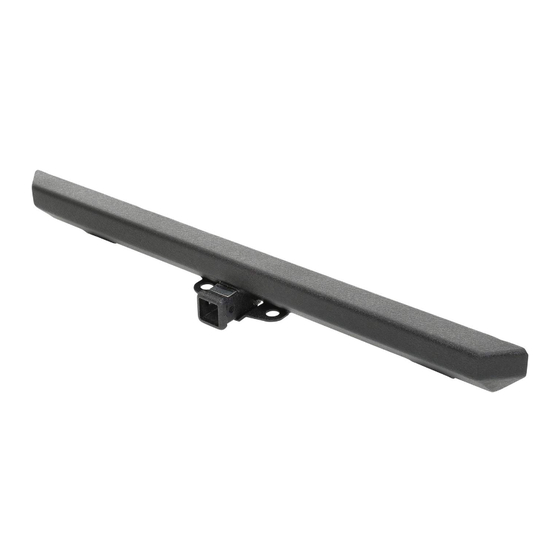

Rear Bumper
Backing Plates
3/8" x 1 ¼" Hex Bolts
3/8" Flat Washers
3/8" Lock Washers
7/16" x 1 ¼" Hex Bolts
7/16" Flat Washers
7/16" Lock Washers
This bumper
is rated with
a Class IV
receiver.
(9,000lbs
GVWR)
1. Remove factory bumper, if equipped.
2. Locate (2) Backing Plates, (4) 3/8" Hex Bolts, (4) 3/8" Flat Washers, and (4) 3/8" Lock Washers. With a
helpers assistance attach backing plates to the rear of the vehicle frame. Align holes in rear plate on the
Bumper to those existing holes in the frame. Loosely attach to one side of vehicle with the hardware
listed in this step. (See illustration below)
3. Repeat Step 2 for opposite side; loosely attach bolts at this time.
4. Align the lower mount brackets (one per side) with the holes on the bottom of the frame. Using (1) 7/16"
Hex Bolt, (1) 7/16" Flat Washer, and (1) 7/16" Lock Washer attach and secure the bottom bracket to the
frame. Note: if equipped, the factory bolt can be used in this step.
5. Repeat Step 4 for opposite side.
SRC Classic
to assemble and/or install this product.
Qty
1
Note: Actual hardware may be Metric,
4
which would coincide with the standard
8
size shown.
8
8
2
2
2
Note: Check with OEM towing specifications and
operation before towing anything with your vehicle.
Installation Instructions
Installation Instructions
Rear Bumper
1987-2006 Jeep Wranglers
(#76750)
