Dynojet Power Commander V Installation Instructions Manual page 7

FIG.N
FIG.O
FIG.P
21-029 www.powercommander.com

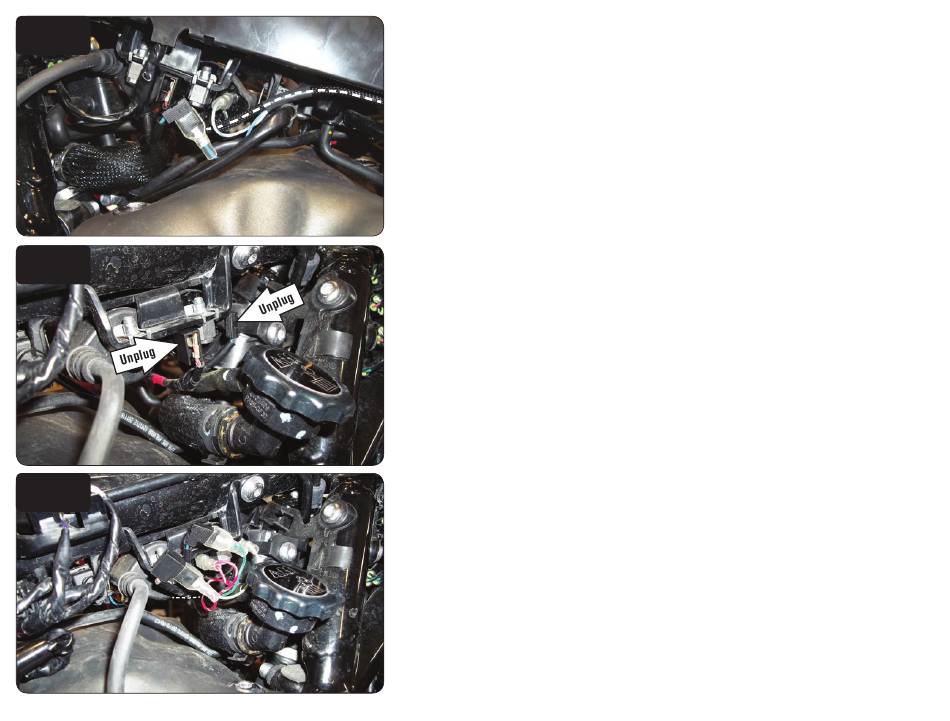

18 Plug the pair of PCV wires with spade connectors (BLUE and WHITE/BLUE
wires) in-line of the right cylinder ignition coil and the stock GREEN/RED wire
(Fig. N).
19. From the right side of the bike, unplug the BROWN (power) wire and the
GREEN/BLUE (signal) wire from the left cylinder ignition coil (Fig. O).
20 Plug the pair of PCV wires with spade connectors (RED/WHITE wires) in-line
of the left cylinder ignition coil and the stock BROWN wire.
21 Plug the pair of PCV wires with spade connectors (GREEN and
WHITE/GREEN wires) in-line of the left cylinder ignition coil and the stock
GREEN/BLUE wire (Fig. P).
Make sure all spade terminals are properly seated and all insulators are well
placed and secure. Keeping all metal well covered at these connections is critical.
22 Re-assemble the bike.
2019 Triumph Scrambler 1200 - PCV F/I - 7
