Dynojet Power Commander V Installation Instructions Manual page 3

FIG.A
FIG.B
FIG.C
21-029 www.powercommander.com
1 Remove the seat and side covers.
2 Remove the fuel tank.

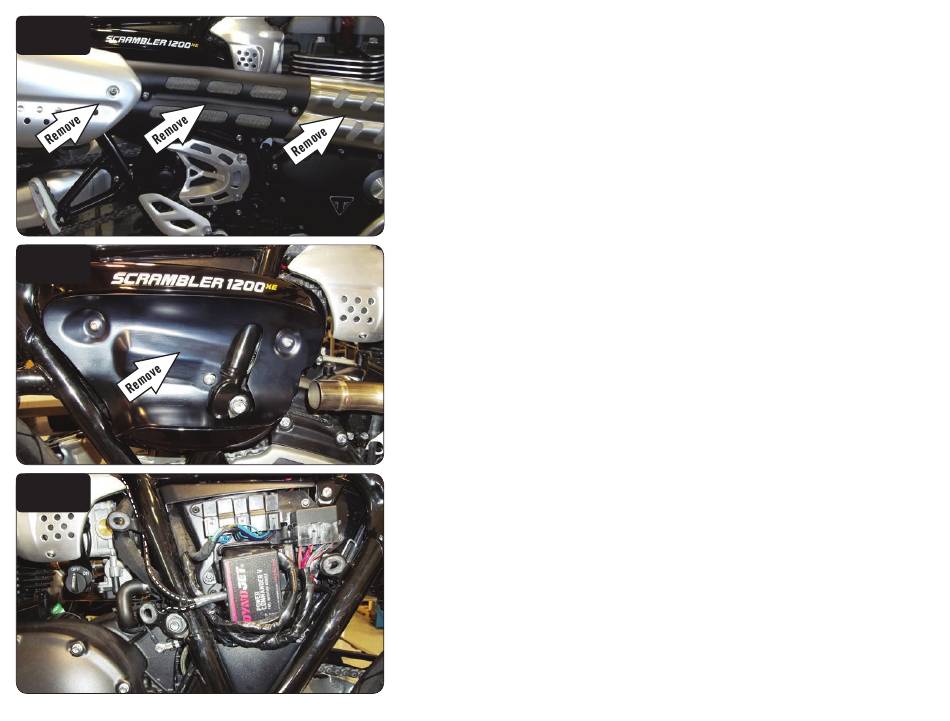

3 Remove the exhaust shields (Fig. A).
4 Remove the muffler and mid-pipe.
5 Remove the right side cover (Fig. B).
6 Install the PCV module behind the left side cover (Fig. C).
Use the Velcro to secure the module. Clean surfaces with the alcohol swab before
attaching the Velcro.
7 Route the PCV wiring harness as shown. The longer branch goes up and
towards the top of the engine along the left side of the frame. The shorter
branch goes through the bike to the right hand side. The pair of two pin
connectors will go under the air box and under the frame spar towards the
removed right side over.
2019 Triumph Scrambler 1200 - PCV F/I - 3
