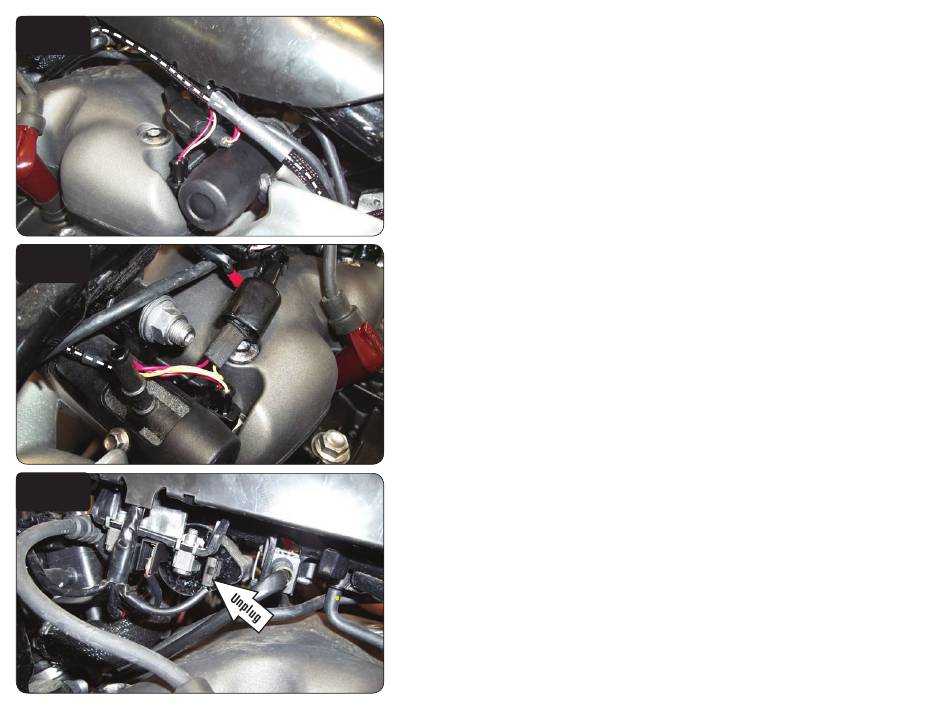

14 Plug the pair of PCV connectors with ORANGE colored wires in-line of the left
fuel injector and the stock connector (Fig. K).
15 Route the pair of connectors with YELLOW colored wires to the right fuel
injector. Route the wires with spade connectors forward towards the ignition
coils.
16 Plug the pair of PCV connectors with YELLOW colored wires in-line of the
right fuel injector and the stock connector (Fig. L).
17 From the left side of the frame, unplug the GREEN/RED (signal) wire from the
right cylinder ignition coil (Fig. M).
