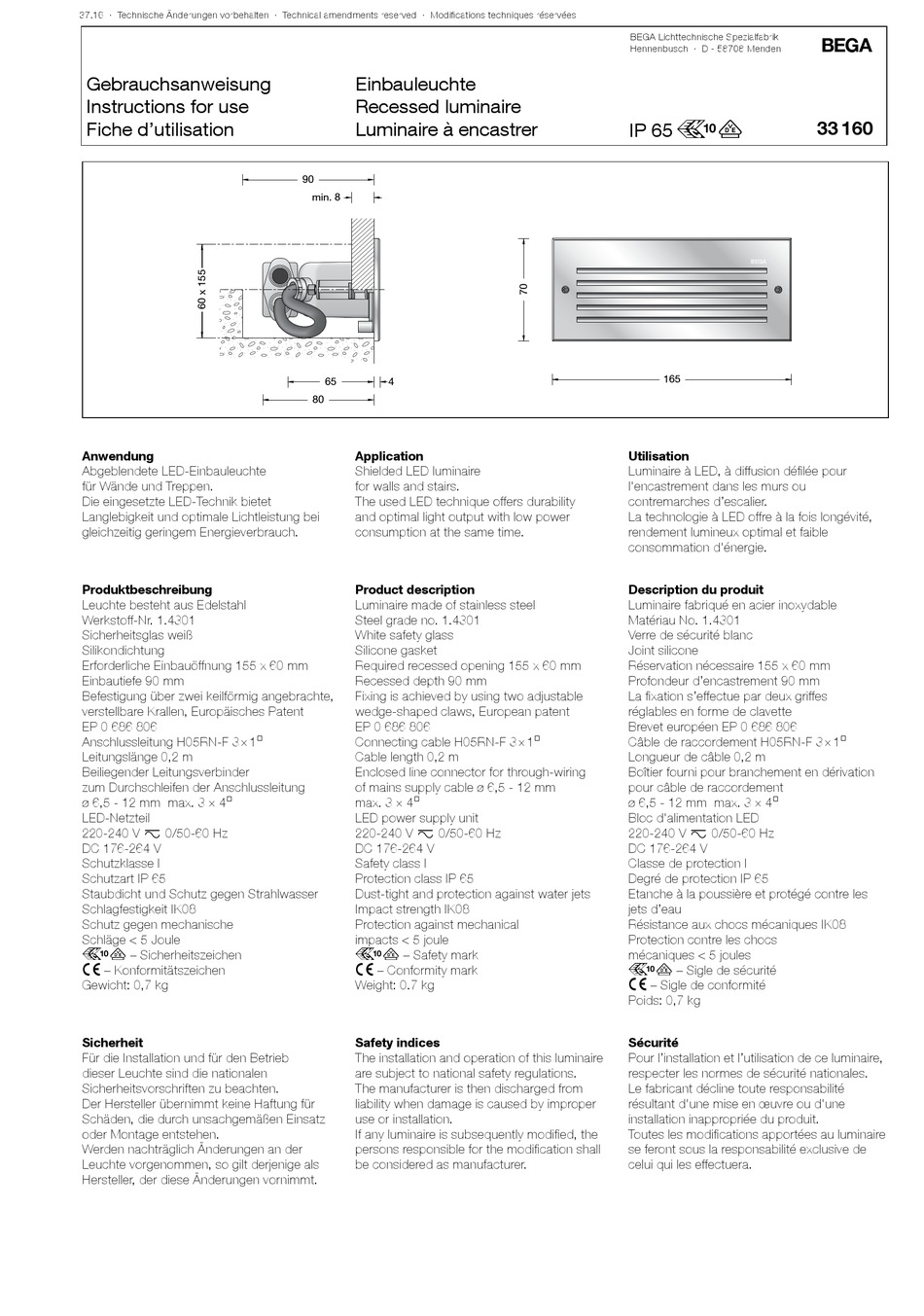

37.16 · Technische Änderungen vorbehalten · Technical amendments reserved · Modifications techniques réservées
Gebrauchsanweisung
Instructions for use
Fiche d'utilisation
Anwendung
Abgeblendete LED-Einbauleuchte
für Wände und Treppen.
Die eingesetzte LED-Technik bietet
Langlebigkeit und optimale Lichtleistung bei
gleichzeitig geringem Energieverbrauch.
Produktbeschreibung
Leuchte besteht aus Edelstahl
Werkstoff-Nr. 1.4301
Sicherheitsglas weiß
Silikondichtung
Erforderliche Einbauöffnung 155 x 60 mm
Einbautiefe 90 mm
Befestigung über zwei keilförmig angebrachte,
verstellbare Krallen, Europäisches Patent
EP 0 686 806
Anschlussleitung H05RN-F 3 × 1@
Leitungslänge 0,2 m
Beiliegender Leitungsverbinder
zum Durchschleifen der Anschlussleitung
ø 6,5 - 12 mm max. 3 × 4@
LED-Netzteil
220-240 V x 0/50-60 Hz
DC 176-264 V
Schutzklasse I
Schutzart IP 65
Staubdicht und Schutz gegen Strahlwasser
Schlagfestigkeit IK08
Schutz gegen mechanische
Schläge < 5 Joule
r – Sicherheitszeichen
c – Konformitätszeichen
Gewicht: 0,7 kg
Sicherheit
Für die Installation und für den Betrieb
dieser Leuchte sind die nationalen
Sicherheitsvorschriften zu beachten.
Der Hersteller übernimmt keine Haftung für
Schäden, die durch unsachgemäßen Einsatz
oder Montage entstehen.
Werden nachträglich Änderungen an der
Leuchte vorgenommen, so gilt derjenige als
Hersteller, der diese Änderungen vornimmt.
Einbauleuchte
Recessed luminaire
Luminaire à encastrer
90
min. 8
65
4
80

Application

Shielded LED luminaire
for walls and stairs.
The used LED technique offers durability
and optimal light output with low power
consumption at the same time.

Product description

Luminaire made of stainless steel
Steel grade no. 1.4301
White safety glass
Silicone gasket
Required recessed opening 155 x 60 mm
Recessed depth 90 mm
Fixing is achieved by using two adjustable
wedge-shaped claws, European patent
EP 0 686 806
Connecting cable H05RN-F 3 × 1@
Cable length 0,2 m
Enclosed line connector for through-wiring
of mains supply cable ø 6,5 - 12 mm
max. 3 × 4@
LED power supply unit
220-240 V x 0/50-60 Hz
DC 176-264 V
Safety class I
Protection class IP 65
Dust-tight and protection against water jets
Impact strength IK08
Protection against mechanical
impacts < 5 joule
r – Safety mark
c – Conformity mark
Weight: 0.7 kg

Safety indices

The installation and operation of this luminaire
are subject to national safety regulations.
The manufacturer is then discharged from
liability when damage is caused by improper
use or installation.
If any luminaire is subsequently modified, the
persons responsible for the modification shall
be considered as manufacturer.
BEGA Lichttechnische Spezialfabrik
Hennenbusch · D - 58708 Menden
r
IP 65
165
Utilisation
Luminaire à LED, à diffusion défilée pour
l'encastrement dans les murs ou
contremarches d'escalier.
La technologie à LED offre à la fois longévité,
rendement lumineux optimal et faible
consommation d'énergie.
Description du produit
Luminaire fabriqué en acier inoxydable
Matériau No. 1.4301
Verre de sécurité blanc
Joint silicone
Réservation nécessaire 155 x 60 mm
Profondeur d'encastrement 90 mm
La fixation s'effectue par deux griffes
réglables en forme de clavette
Brevet européen EP 0 686 806
Câble de raccordement H05RN-F 3 × 1@
Longueur de câble 0,2 m
Boîtier fourni pour branchement en dérivation
pour câble de raccordement
ø 6,5 - 12 mm max. 3 × 4@
Bloc d'alimentation LED
220-240 V x 0/50-60 Hz
DC 176-264 V
Classe de protection I
Degré de protection IP 65
Etanche à la poussière et protégé contre les
jets d'eau
Résistance aux chocs mécaniques IK08
Protection contre les chocs
mécaniques < 5 joules
r – Sigle de sécurité
c – Sigle de conformité
Poids: 0,7 kg
Sécurité
Pour l'installation et l'utilisation de ce luminaire,
respecter les normes de sécurité nationales.
Le fabricant décline toute responsabilité
résultant d'une mise en œuvre ou d'une
Installation inappropriée du produit.
Toutes les modifications apportées au luminaire
se feront sous la responsabilité exclusive de
celui qui les effectuera.
!
33 160
