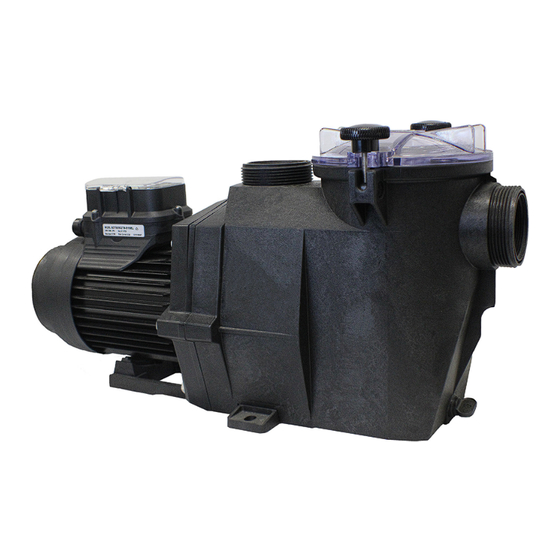

Super II Economy VS™
Variable Speed Pump
Owner's Manual
To prevent potential injury and to avoid unnecessary service calls
read this manual carefully and completely.
Hayward Pool Products (Australia) Pty Ltd.
Melbourne-Sydney-Brisbane-Perth
Email: sales@hayward-pool.com.au | Website: www.hayward-pool.com.au
PO Box 4384 | Dandenong South VIC 3164
ABN 66 083 413 414
Sales Contact Ph: 1300POOLS1 Fax: 1300POOLS2
USE ONLY HAYWARD® GENUINE REPLACEMENT PARTS
30-LITINSB0020
21/11/2019 3:23:10 PM
21/11/2019 3:23:10 PM
Advertisement
Table of Contents
Related Manuals for Hayward Super II Economy VS SP3011DIVS
Summary of Contents for Hayward Super II Economy VS SP3011DIVS
- Page 1 To prevent potential injury and to avoid unnecessary service calls read this manual carefully and completely. SAVE THIS INSTRUCTION MANUAL Hayward Pool Products (Australia) Pty Ltd. Melbourne-Sydney-Brisbane-Perth Email: sales@hayward-pool.com.au | Website: www.hayward-pool.com.au PO Box 4384 | Dandenong South VIC 3164...
-
Page 2: Important Safety Instructions
Automatic Restart. The pump motor is automatically protected from overload and overheating. If such an error occurs the controller will automatically try to restart the pump. If a power failure occurs while the pump is running, it will automatically restart once the power has been restored. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS ®... - Page 3 In addition to installing two or more suction outlets per pump, follow all National, State and Local regulations and » AS 1926.3 Latest Edition. Installation of a vacuum release or vent system, which relieves entrapping suction, is recommended. » USE ONLY HAYWARD GENUINE REPLACEMENT PARTS ® SP3011DIVS REV1 30-LITINSB0020.indd 3 SP3011DIVS REV1 30-LITINSB0020.indd 3...
- Page 4 Input kW Input Amps Noise Weight Ingress Head (kg) Protection SP3011DIVS 15.5m / 152kPa 0.93kW 5.85 < 70 IPX5 USE ONLY HAYWARD GENUINE REPLACEMENT PARTS ® SP3011DIVS REV1 30-LITINSB0020.indd 4 SP3011DIVS REV1 30-LITINSB0020.indd 4 21/11/2019 3:23:10 PM 21/11/2019 3:23:10 PM...
-
Page 5: Installation
INTRODUCTION This manual contains information for the proper installation and operation of the Hayward Super II Economy Variable Speed Pump. The instructions in this manual MUST be followed precisely. Failure to install according to defined instructions will void warranty. Product Dimensions... - Page 6 Note: If the pump is being installed using the standard Hayward Universal Union that is supplied with the pump then there is no need to apply any type of thread sealant. The union gasket supplied will seal sufficiently.
-
Page 7: Maintenance
» Have a professional perform this test. » Ensure all Hayward pump and system components are removed from the system prior to performing the test. However: WARNING – If circulation equipment must remain in the plumbing system during water pressure test, do not apply more than 68 kPa (10 psi) pressure to the system. - Page 8 9. Advance through the “Service Menu”. When you get to “Filter Pumps”, select the VSP as described in the AquaRite+ AU Owner’s Manual. The default pump type is “standard” (single speed) and will need to be changed to “Hayward variable”.
- Page 9 Only qualified personnel should attempt to replace the shaft seal. Contact your local authorised » Hayward Dealer or service center if you have any questions. Exercise extreme care in handling both the rotating and stationary sections of the two-part »...
-
Page 10: Components & Parts
BOLT-3/8-16 X 7/8, 300 SS, HEX SPX3000FDI MOTOR MOUNTING PLATE SPXPLDI100VM MOTOR MOUNTING PLATE SPX1600Z4 BOLT 316 SS 3/8" UNC * 2" LONG USE ONLY HAYWARD GENUINE REPLACEMENT PARTS ® SP3011DIVS REV1 30-LITINSB0020.indd 10 SP3011DIVS REV1 30-LITINSB0020.indd 10 21/11/2019 3:23:13 PM 21/11/2019 3:23:13 PM... -
Page 11: Troubleshooting
The motor will auto-restart when a safe heat level is reached. If the motor fails to restart, switch the power off and contact an authorised Hayward Pump Service Technician. -
Page 12: Warranty
Hayward Pool Products (Australia) warrants that its products are free from defects in materials and manufacture for 12 months from date of supply by Hayward Pool Products (Australia) plus 90 days to allow for installation and supply (unless otherwise specified). Hayward Pool Products (Australia) will at its discretion, except in the circumstances... - Page 13 Local Branch Customer Service Manager to dispose of them. Hayward Pool Products (Australia) reserves the right to provide replacement or credit for any items authorised under this warranty program.
- Page 14 NOTES USE ONLY HAYWARD GENUINE REPLACEMENT PARTS ® SP3011DIVS REV1 30-LITINSB0020.indd 14 SP3011DIVS REV1 30-LITINSB0020.indd 14 21/11/2019 3:23:13 PM 21/11/2019 3:23:13 PM...
- Page 15 NOTES USE ONLY HAYWARD GENUINE REPLACEMENT PARTS ® SP3011DIVS REV1 30-LITINSB0020.indd 15 SP3011DIVS REV1 30-LITINSB0020.indd 15 21/11/2019 3:23:13 PM 21/11/2019 3:23:13 PM...
- Page 16 Hayward Pool Products (Australia) Pty Ltd. Melbourne-Sydney-Brisbane-Perth Email: sales@hayward-pool.com.au | Website: www.hayward-pool.com.au PO Box 4384 | Dandenong South VIC 3164 Hayward and Super II Economy are ABN 66 083 413 414 registered trademarks of Hayward Sales Contact Ph: 1300POOLS1 Fax: 1300POOLS2 Industries, Inc.
