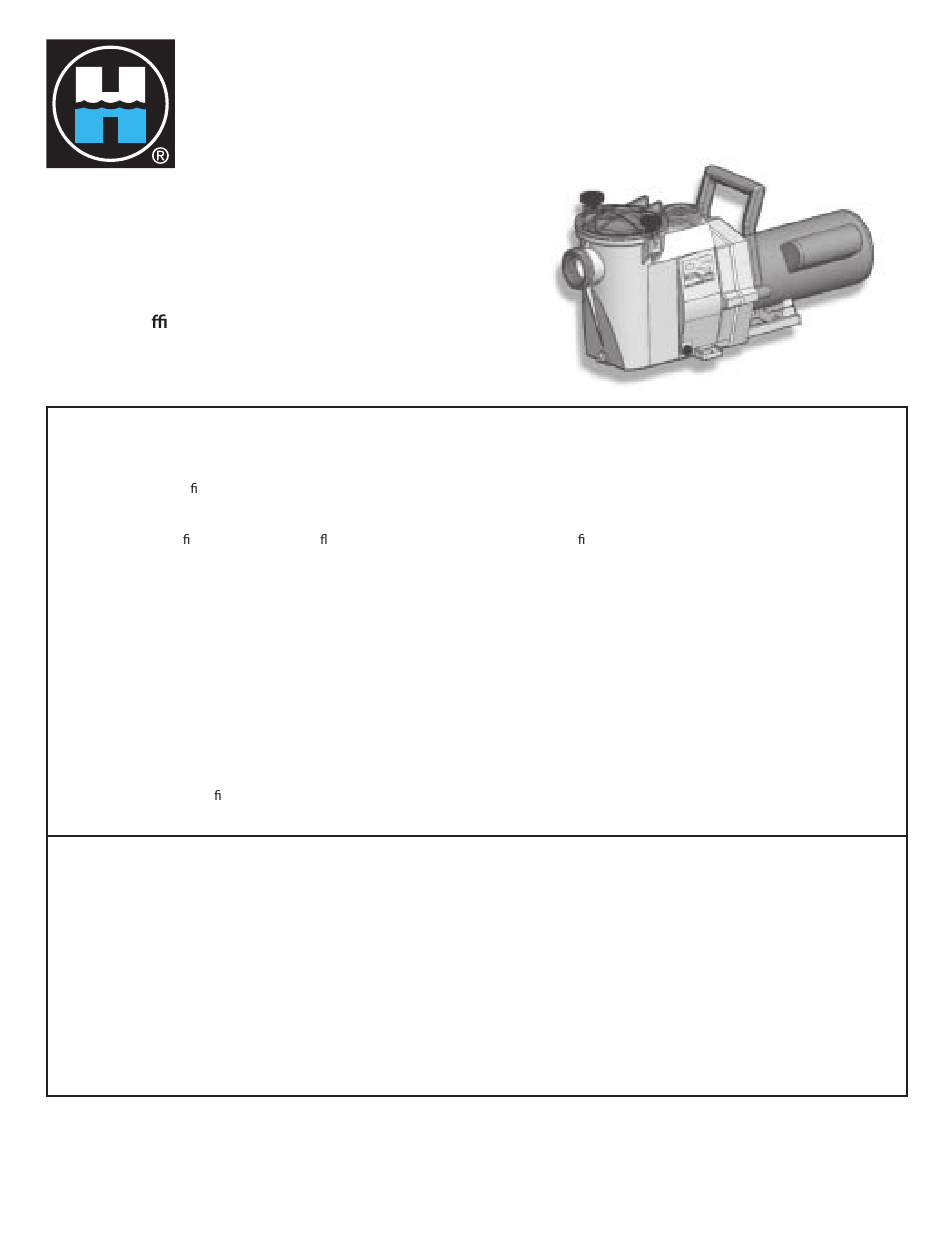

Super II Pump
Your Hayward self-priming centrifugal pump has
been quality-built and engineered to give you many
years of e cient, dependable, corrosion-free
service. The advanced design reduces operation and
maintenance to simple, common-sense procedures.
GENERAL TIPS ON PUMP INSTALLATION
Locate the pump as close to the pool as practical and run
suction line as direct as possible. This cuts down on friction loss
through pipe and ttings.
Never overtighten pipe connections — use only pipe sealants
formulated speci cally for Plastics, i.e. Te on Tape, Permatex No.
2, etc.
Suction line should have continuous slope from lowest point in
line. Make sure suction joints are tight. Suction pipe should be
as large or larger than discharge pipe.
Damp, non-ventilated locations should be avoided. Motors
require free circulation of air to aid in cooling.
Insure electrical supply agrees with motor voltage, phase and
cycle, and that wire size is adequate for the HP/KW rating and
distance from power source. Motor must always be properly
grounded. Electrical circuits should be protected by proper size
ground fault circuit interrupter (GFCI). Electrical wiring should
be performed by quali ed personnel, and must conform to local
codes and regulations.
MAINTENANCE
1.
Clean strainer basket regularly. Do not strike basket to clean.
Inspect strainer cover gasket regularly and replace as
necessary.
2.
Hayward pumps have self-lubricating motor bearings and
shaft seals. No lubrication is necessary.
3.
Keep motor housing clean. Insure air vents are free from
obstructions, debris, etc.
4.
Occasionally, shaft seals must be replaced, due to wear or
damage. See instructions
MANUFACTURED EXCLUSIVELY BY HAYWARD
® Hayward Pool Products Canada, Inc. -- Licensee
OWNER'S GUIDE
2880 PLYMOUTH DRIVE, OAKVILLE, ONTARIO L6H 5R4 • 1-888-238-POOL
www.haywardcanada.com
STARTING AND PRIMING INSTRUCTIONS
Fill strainer/housing with water to suction pipe level. Never
operate the pump without water. Water acts as a coolant and
lubricant for the mechanical shaft seal.
Open all suction and discharge valves, as well as air bleed (if
available) on lter. (The air that is to be displaced from the
suction line must have someplace to go.)
Turn on power and allow a reasonable time for priming. Five
minutes is not unreasonable. (Priming time depends on suction
lift and horizontal length of suction piping). If pump will not
start, or will not prime, see TROUBLE SHOOTING GUIDE on back
page.
WlNTERIZING/STORAGE
1.
Drain pump by removing drain plug(s) and store in strainer
basket.
2.
Disconnect electrical wires and pipe connections, and store
pump in a dry, well-ventilated room. Or:
Disconnect electrical wires. Remove six (6) bolts holding
bracket and motor assembly to Strainer/Housing and store
assembly in a dry, well ventilated room. Protect remaining
Strainer/Housing assembly from the elements by covering.
NOTE: Before Re-Activating pump, thoroughly clean and remove
scale, dirt, etc.
IS-3005X7 HC-07
