2753 Michigan Road • Madison, Indiana 47250 • 855-743-3427

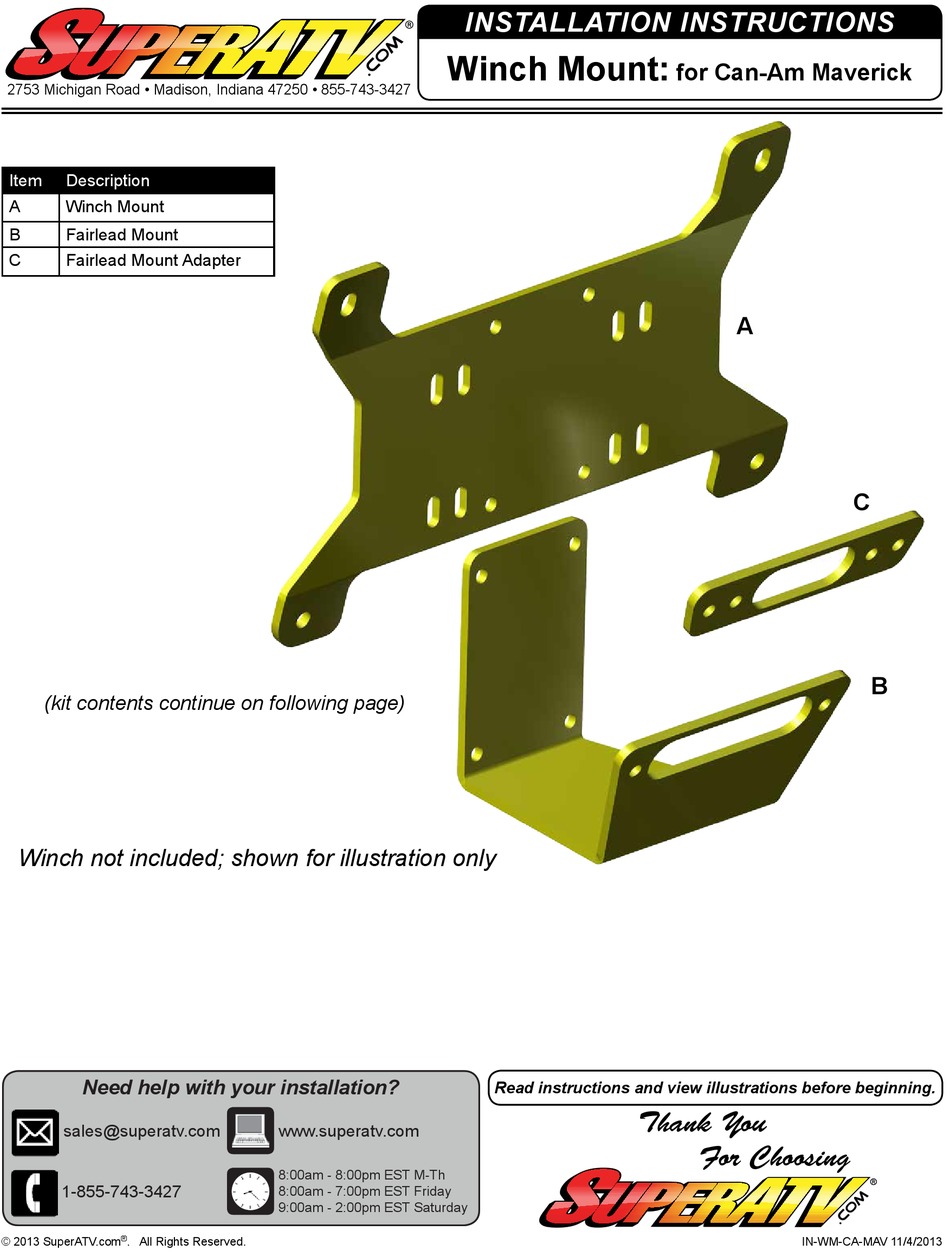

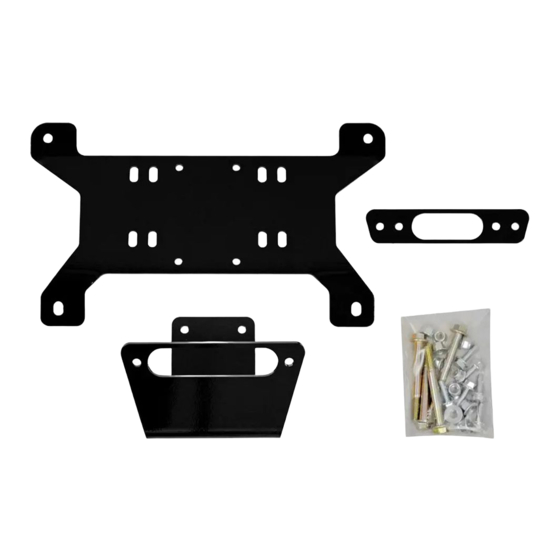

Item
Description
A
Winch Mount
B
Fairlead Mount
C
Fairlead Mount Adapter
(kit contents continue on following page)
Winch not included; shown for illustration only
Need help with your installation?
sales@superatv.com
1-855-743-3427
®
© 2013 SuperATV.com
. All Rights Reserved.
Winch Mount:
www.superatv.com
8:00am - 8:00pm EST M-Th
8:00am - 7:00pm EST Friday
9:00am - 2:00pm EST Saturday
INSTALLATION INSTRUCTIONS
Read instructions and view illustrations before beginning.
Thank You
for Can-Am Maverick
A
C
For Choosing
IN-WM-CA-MAV 11/4/2013
B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SuperATV WM-CA-MAV
Summary of Contents for SuperATV WM-CA-MAV
- Page 1 Need help with your installation? Read instructions and view illustrations before beginning. Thank You sales@superatv.com www.superatv.com For Choosing 8:00am - 8:00pm EST M-Th 1-855-743-3427 8:00am - 7:00pm EST Friday 9:00am - 2:00pm EST Saturday ® © 2013 SuperATV.com . All Rights Reserved. IN-WM-CA-MAV 11/4/2013...
- Page 2 The Buyer is also responsible to obey all ® applicable federal, state, and local laws and ordinances when operating his/her vehicle while using this product, and the Buyer agrees to hold SuperATV harmless from any ®...
- Page 3 Do not tighten hardware completely unless noted. Keep all components removed from machine. - Remove Bumper from machine. - Remove and replace forward most hardware from A-Arms with hardware shown; Bolt heads to face rear of machine. Do not install Nuts. Bumper (Driver Side) remove Bumper hardware M10 x 90mm IN-WM-CA-MAV...
- Page 4 - Join Winch Mount (A) to Fairlead Mount (B) with hardware shown. 4x - M8 Nut 4x - M8 x 25mm IN-WM-CA-MAV...
- Page 5 M8 Flat Washer 2 each M8 Lock Washer Fairlead for SuperATV Winch, item #4500-W-N, shown M8 Nut - SuperATV 3500 Lb. Winch will require installation of Fairlead Mount Adapter (C) as shown. M8 x 25mm 2 each M8 Nut IN-WM-CA-MAV...
- Page 6 - Install Winch to Winch Mount (A). Hardware included with Winch. SuperATV Winch, item #4500-W-N, shown IN-WM-CA-MAV...
- Page 7 - Install Winch Mount (A) on to previously installed M10 Bolts and secure with provided M10 Nuts. - Reinstall Bumper and tighten all hardware completely. (Driver Side) previously installed M10 Bolts 4x - M10 Nut IN-WM-CA-MAV...
