Signature Hardware Ryle Installation Instructions

RYLE FREESTANDING TUB FAUCET
INSTALLATION INSTRUCTIONS
Installation on a concrete slab is not recommended. Observe
all local plumbing and building codes.
Unpack and inspect faucet and parts for damage. If any
damage is found, contact Customer Service at
1-866-855-2284 If you need assistance while installing your
new faucet, call our Customer Service number.
We recommend consulting a professional if you are
unfamiliar with installing bathroom fixtures and plumbing.
Signature Hardware accepts no liability for any damage to the
floor, walls, plumbing, or personal injury during installation.

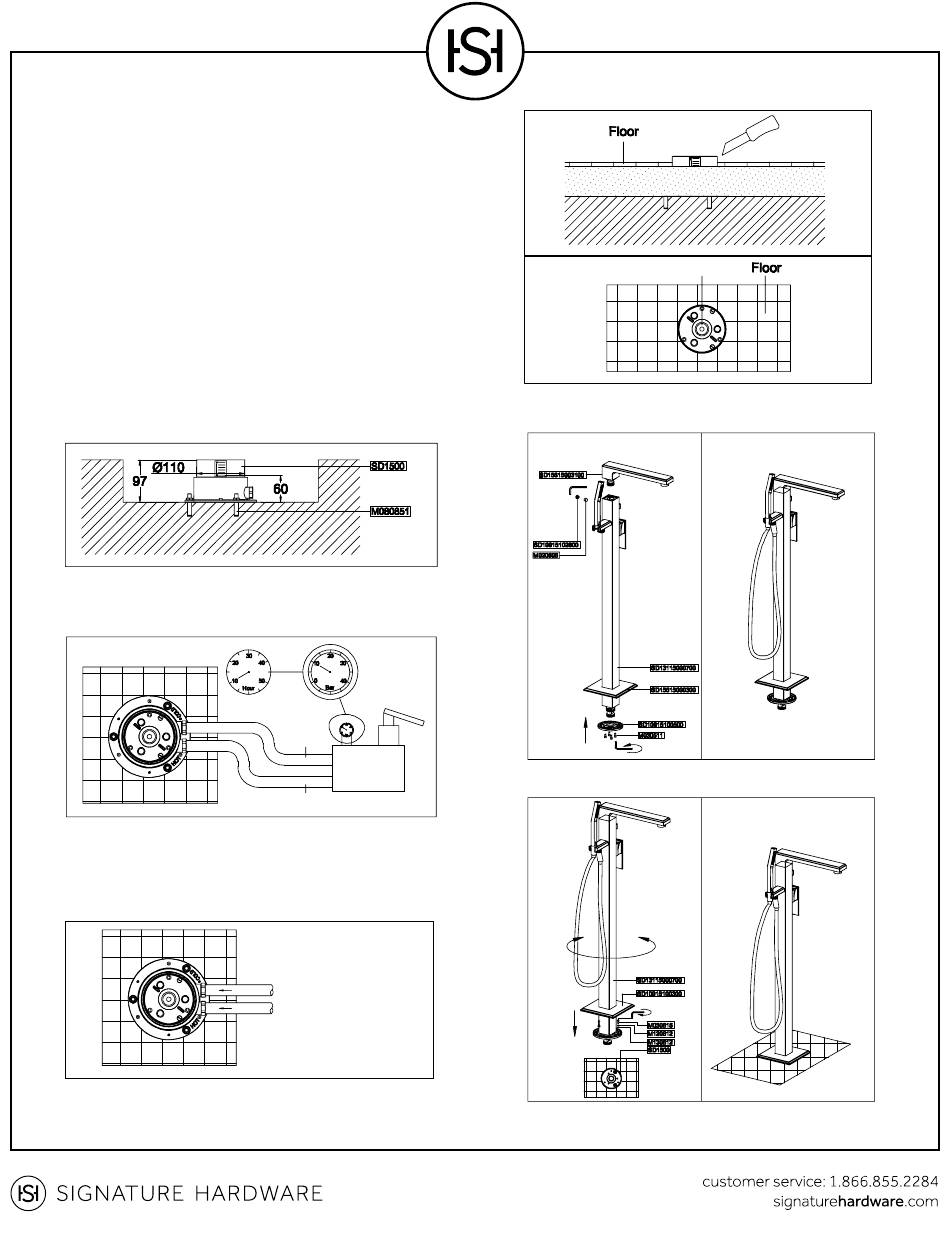

1. Install the rough-in valve SD1500 beneath the finished
floor with the provided M0808051 hardware.
2. Test the water pressure to ensure there is no leakage
before continuing installation. We recommend consulting
a plumbing professional if you are unfamiliar with water
pressure testing.
3. Connect the water supplies to the valve.
Water
Water
Cold
Hot
4. After the finished floor material is installed, trim away
the excess rough-in valve material.
5. Assemble the faucet as specified in the above drawing.
6. Remove the cap from the rough-in valve and install the
faucet.
Ryle Freestanding Tub Faucet Installation Instructions
Level
