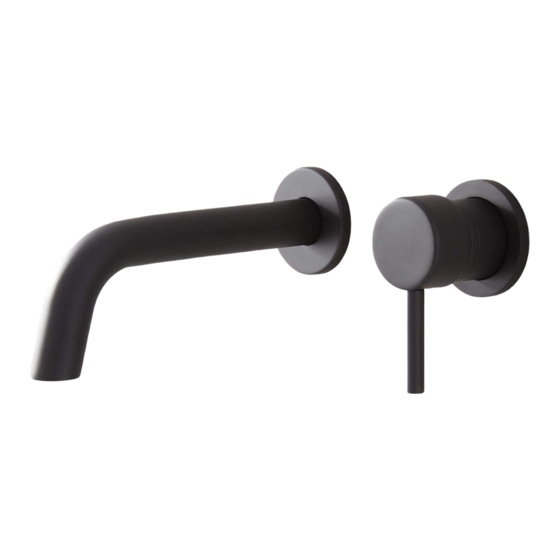

ROTUNDA WALL-MOUNT FAUCET
INSTALLATION INSTRUCTIONS
Before installing, read entire Rotunda Wall-Mount Faucet Installation Instructions. Observe all local building and safety
codes.
For the following installation instructions for your new wall-mount faucet it is assumed that any old fixtures have been
removed and the water supply lines have been relocated to the proper installation location.
Unpack and inspect the product for any shipping damages. If you find damages, do not install. Contact Customer
Service at 1-866-855-2284. If you need assistance or have questions while installing your wall-mount faucet, contact
Customer Service.
We recommend consulting a professional if you are unfamiliar with installing bathroom fixtures. Signature Hardware
accepts no liability for any damage to the floor, walls, plumbing or for personal injury during installation.
TOOLS AND MATERIALS
Allen Wrench (provided)
Wood Screws

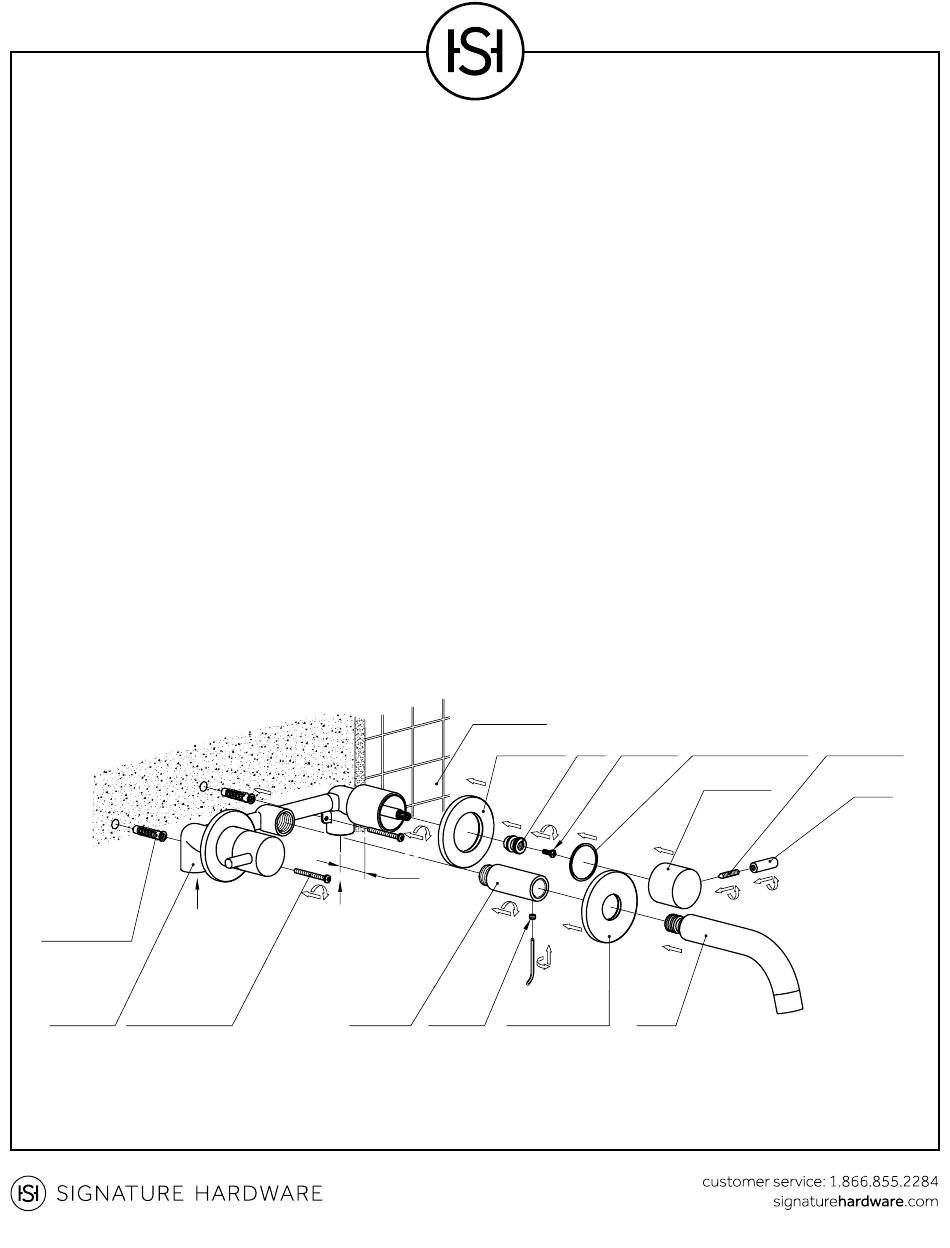

INSTALLATION DIAGRAM
Hot Water Inlet
Wall Anchor
Self-tapping
Valve Body
Screw
Drill
Silicone Sealant
Finished Wall
1-1/4"-2-1/4"
Cold Water Inlet
Spout Joint
M6 Screw
Level
Escutcheon
Core
Stop Screw
Spout
Escutcheon
Spout
Rotunda Wall-Mount Faucet Installation Instructions
Plastic Ring
Locking Screw
Handle Body
Handle
