AMBERLEY

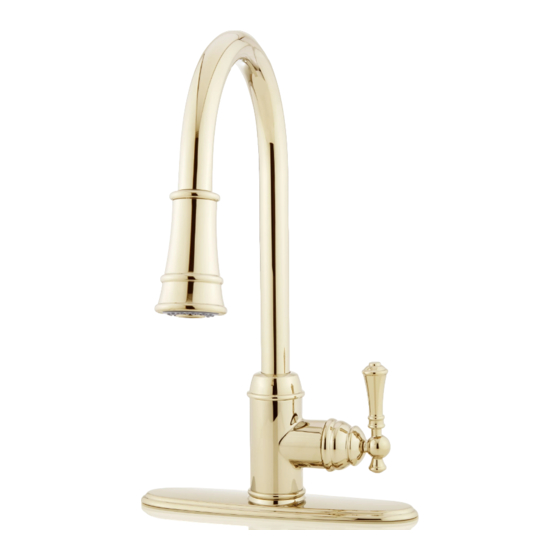

SINGLE-HOLE PULL-DOWN KITCHEN FAUCET
GRIFO DE COCINA EXTRAÍBLE CON ÚNICO ORIFICIO
SKU: 948399
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing fixtures. Signature
Hardware accepts no liability for any damage to the
to the faucet, plumbing, sink, countertop,
personal injury during installation.
Observe all local plumbing and building codes.
Unpack and inspect the product for shipping
damage. If any damage is found, contact our
Customer Relations team at 1-800-221-3379.
ANTES DE COMENZAR
Le recomendamos que consulte a un profesional si no
sabe cómo instalar accesorios de plomería. Signature
Hardware no asume ninguna responsabilidad con
respecto a los daños causados al grifo, plomería,
fregadero, encimera o por lesiones personales que
ocurran durante la instalación.
Cumpla con todas las normas locales de plomería y
construcción.
Retire el producto del empaque y verifique si no sufrió
daños durante el envío. Si encuentra algún daño,
comuníquese con nuestro Equipo de Servicio al Cliente
al 1-800-221-3379.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
CÓMO COMENZAR
Garantiza haber reunido todos los materiales que se
requieren para la instalación.
TOOLS AND MATERIALS:
HERRAMIENTAS Y MATERIALES:
or for
Safety Glasses
1
Adjustable
Gafas de
Wrench
Seguridad
Llave Ajustable
Silicone Sealant
(100% Neutral
Cure)
Sellador de silicona
(100 % de curado
neutro)
Plumbers Tape
Cinta de Plomería
REVISED 7/22/2019
CODES:
SHXCAM101
1.800.221.3379
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Signature Hardware Amberley 948399
Summary of Contents for Signature Hardware Amberley 948399
- Page 1 AMBERLEY SINGLE-HOLE PULL-DOWN KITCHEN FAUCET GRIFO DE COCINA EXTRAÍBLE CON ÚNICO ORIFICIO SKU: 948399 BEFORE YOU BEGIN TOOLS AND MATERIALS: HERRAMIENTAS Y MATERIALES: We recommend consulting a professional if you are unfamiliar with installing plumbing fixtures. Signature Hardware accepts no liability for any damage to the to the faucet, plumbing, sink, countertop, or for personal injury during installation.
- Page 2 AMBERLEY SINGLE-HOLE PULL-DOWN KITCHEN FAUCET GRIFO DE COCINA EXTRAÍBLE CON ÚNICO ORIFICIO SKU: 948399 INSTALLATION 4. Retract hose up through faucet body until the pull-down hose fitting is flush with the bottom of INSTALACIÓN shank. Do not pull hose fitting past the shank. Insert faucet body through the hole in sink.
- Page 3 AMBERLEY SINGLE-HOLE PULL-DOWN KITCHEN FAUCET GRIFO DE COCINA EXTRAÍBLE CON ÚNICO ORIFICIO SKU: 948399 6. Thread the quick connector onto the free end of 7. Connect the hot and cold water supply lines to the the hose. Align block and tabs on quick connect. Push angle stop (not included).
