Eldat Easywave RTM08 Series Quick Start Manual page 2

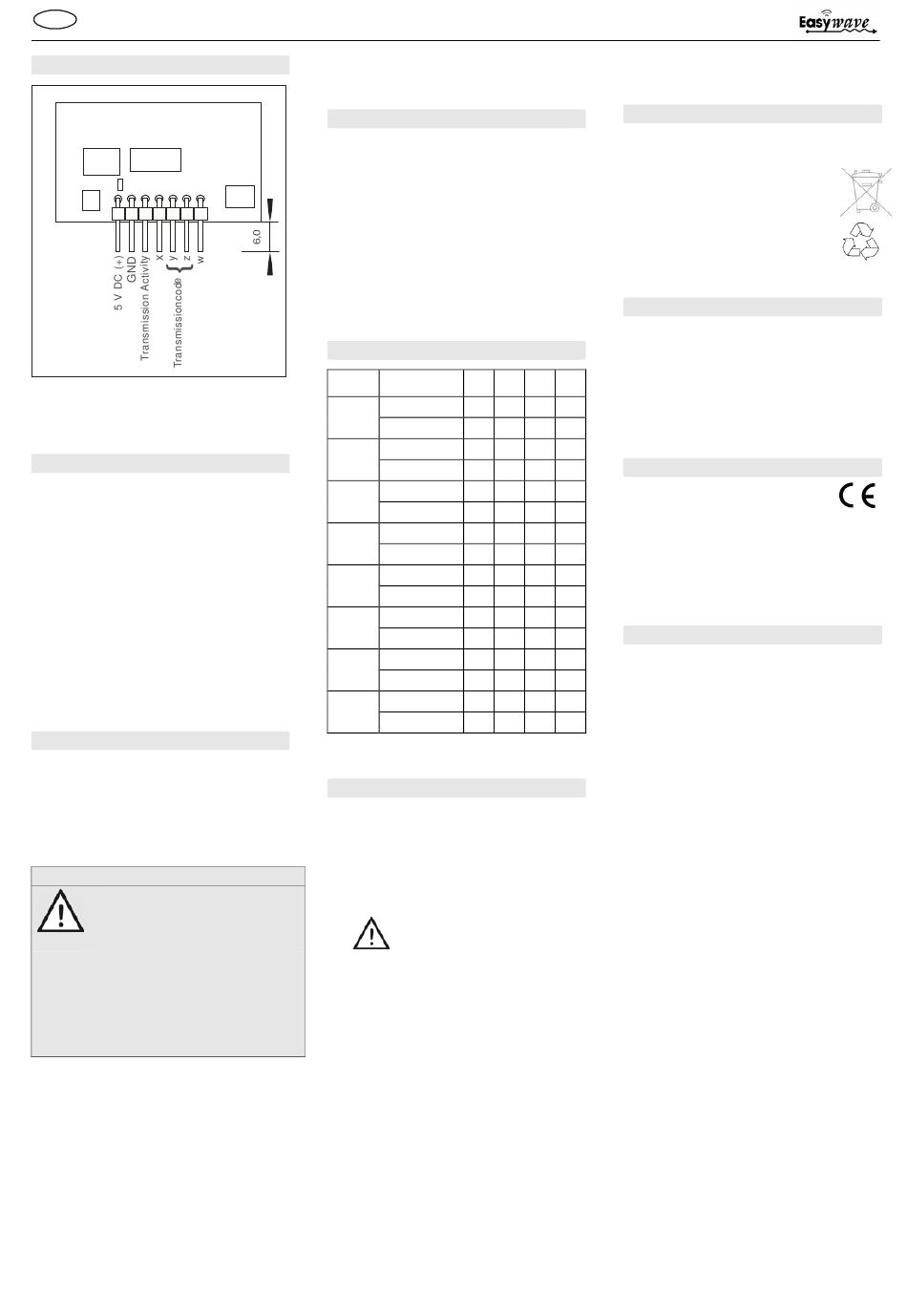

GB Transmitter Module RTM08
Model
1 2 3 4 5 6 7
Grid:
2.54 mm
RTM08E5008-01
RTM08E6008A01
Technical Details
Frequency: 868.30 MHz or
916.00 MHz
Radiated power: 868,30 MHz: 0.25 mW
Modulation: FSK
Power supply: 5 V DC
Standby current: max. 1,5 mA
Transmitting
current: max. 13 mA
Transmission
range: approx. 100 m at optimal
free field conditions
Operating
temperature: -20 °C to +60 °C
Dimension: 40 x 22 x 5,8 mm
Intended Use
The transmitter module may only be used
to operate radio controls.
The manufacturer does not assume any
liability for damage caused as a result of
improper or non-intended use!
Safety Advice
Before connecting and operating
the transmitter module, carefully
read through the operating in-
structions!
Note also the operating instructions of the
radio control(s)!
Have faulty transmitter modules checked by
the manufacturer!
Do not make any unauthorized alterations or
modifications to the transmitter module!
Function
The Transmitter Module RTM08 is a de-
vice designed for transmitting a maximum
of 16 different digital states. It is perma-
nently under voltage.
The integrated micro controller carries out
all necessary important functions for the
transmission process. The maximal trans-
mission time is 36 seconds.
In case PIN 3 receives a high a radiogram
according to the coding at PIN 4-7 is
transmitted.
Coding
Group
868.30 MHz
1
916.00 MHz
2
3
4
5
6
7
8
Start-Up
1. Connect the module as follows:
• Power Supply:
PIN1:
PIN2:
• Kanäle:
PIN4-7: transmission code
PIN 3:
2. Register the transmission code with
the radio control. Please read the op-
erating instructions supplied with the
radio controls.
Transmission x y z
code
A 0 0 0
B 0 0 0
A 0 0 1
B 0 0 1
A 0 1 0
B 0 1 0
A 0 1 1
B 0 1 1
A 1 0 0
B 1 0 0
A 1 0 1
B 1 0 1
A 1 1 0
B 1 1 0
A 1 1 1
B 1 1 1
0 = GND, 1 = nc
5 V DC
GND
(see coding)
(High) transmission activity
Activate the transmission ac-
tivity (PIN3) only after setting
the codings x, y, z, w (PIN4 to
PIN7).
Disposal
Waste electrical products should not be
disposed of with household waste!
Dispose of the waste product via a
collection point for electronic scrap
or via your specialist dealer.
Put the packaging material into the
recycling bins for cardboard, paper
and plastics.
Warranty
Within the statutory warranty period we
undertake to rectify free of charge by
repair or replacement any product defects
arising from material or production faults.
w
Any non-authorized alterations or modifi-
cations to the product shall render this
0
warranty null and void.
1
0
Conformity
1
Hereby, ELDAT GmbH declares
0
that the radio equipment type
1
RTM08 is in compliance with
0 Directive 2014/53/EU.
The Declaration of Conformity can be
1
acquired from the supplier referred to in
0
the delivery documents.
1
0
Customer Service
1
If, despite correct handling, faults or mal-
0
functions occur or if the product was da-
1
maged, please contact your retailer or the
manufacturer.
0
1
ELDAT GmbH
Im Gewerbepark 14
15711 Zeesen/Deutschland
Telefon: + 49 (0) 33 75 / 90 37-0
Telefax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
E-Mail: info@eldat.de
UM86057A 0917 D/GB
