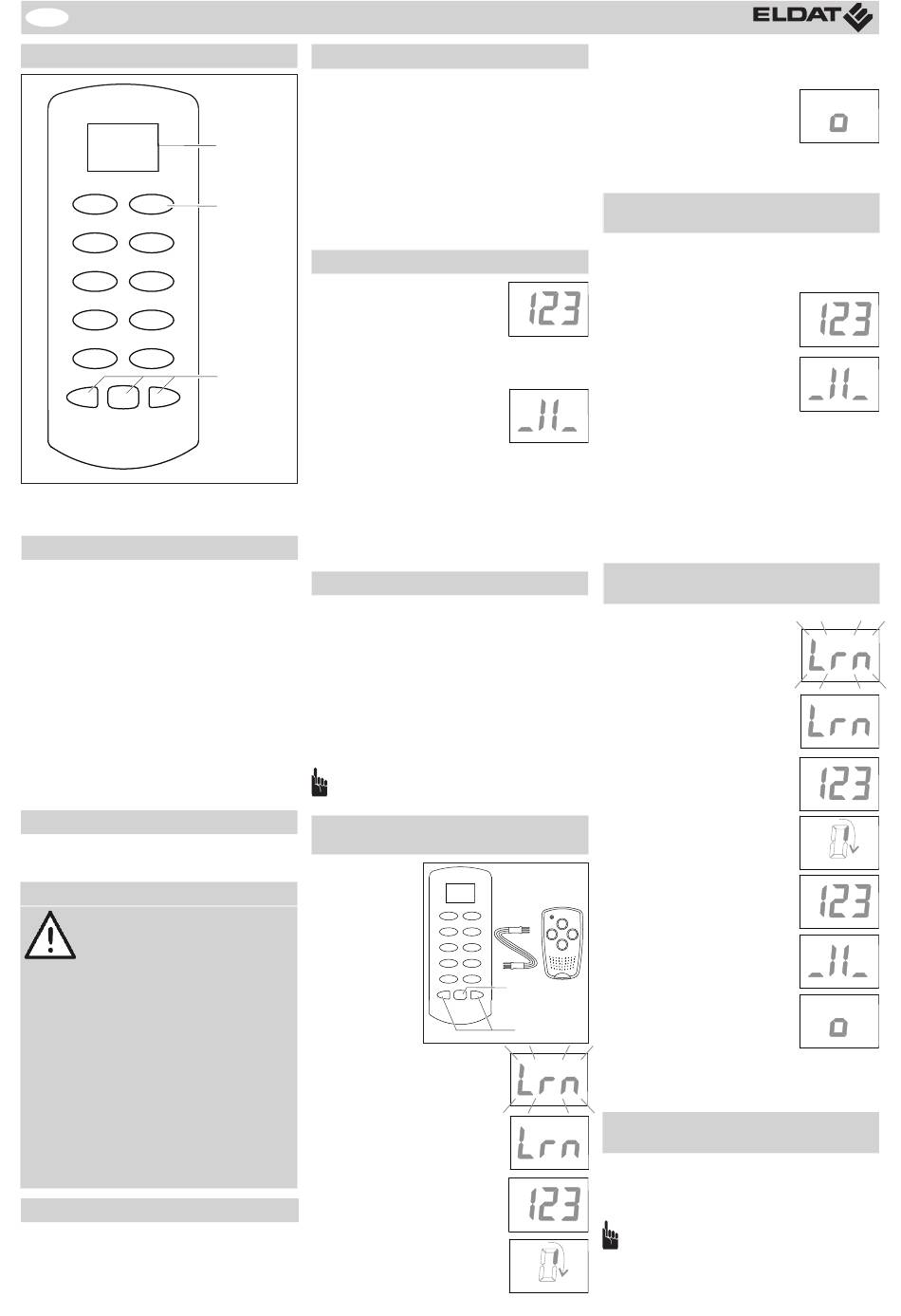

Eldat RT31 Quick Start Manual

Multi Channel Transmitter RT31
GB
Model
1 2
3
4
5 6
8
7
9 0
E N T E R
RT31-4139M-01 (Puls)
RT31-5039M-01 (Puls)
Technical Details
Frequency: 433.92 or 868.30 MHz
Modulation: ASK
Channels: 999
Power supply: 1 x 3V-Battery, CR2032
Indicator: Display (LCD)
Current consumption: approx. 10.4 mA
Degree of Protection: IP54
Operating
temperature: 0°C to +50°C
Range: approx. 150 m at
optimal free field conditions
Dimensions W/L/H: 60/150/22 mm
Weight: approx. 100 g
Scope of Delivery
Multi Channel Transmitter RT31 incl. battery,
Programming Cable, Operating Instructions
Safety Advice
Before using the transmitter,
carefully read these operating
instructions!
Also read the operating instructions of the
radio receiver!
Never operate doors or other devices which
are out of your sight. Persons could be
endangered!
At regular intervals make sure that the unit is
ready to transmit !
Do not make any unauthorized changes or
modifications to the Multi Channel Trans-
mitter!
Have faulty transmitters checked by the
manufacturer!
Intended Use
The Multi Channel Transmitter has been
designed to operate ELDAT radio receiver.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use!
Function
The Multi Channel Transmitter RT31 is a
Transmitter with several channels wich can be
selected by a three digit numerical code and
hich you can see on the display
w
LCD Display
one of the ENTER-buttons the transmission
code is sent and the receiver is switched in
the selected operation mode.
Channel The Multi Channel Transmitter is supplied
buttons
factory-coded. You can change the coding and
0 bis 9
store up to 999 different codes (Channels).
Use the Transmitter
1. Type in the channel number
by pressing the respective
button combination. The
channel number is shown
on the Display.
ENTER- 2. Now press one of the ENTER-buttons
Buttons
The transmission symbol is
shown on the display and the
transmitter transmits for max.
36 seconds.
After releasing the button the transmitter
stays active for 12 seconds. In this time
433.92 MHz
transmission can be activated again
868.30 MHz immediately by pressing one of the ENTER-
buttons.
You cannot send with the button 0.
Transfering Codes
Individual transmission codes can be trans-
ferred from existing transmitters. Similarly,
individual codes of the Multi Channel Trans-
mitter can be transferred to other transmitters.
Code Transfer is only possible between the
transmitters of the same kind. It is not possible
to transfer codes from transmitters with
direction function. If in doubt ask your retailer
or the manufacturer.
Press the left or right ENTER-button
to cancel the transfer process.
A Transmitter to Multi Channel
Transmitter
1. Connect the
transmitter
and Multi
Channel
Transmitter
with the
programming
cable.
2. Keep button 2 on the Multi
Channel Transmitter
pressed until the
memorizing symbol flashes
in the display.
3. Press Enter. The symbol in
the display is shown
continuously.
4. Type the channel number
into the Multi Channel
Transmitter. Press and hold
down the ENTER button.
The display shows the
memorizing process.
5. Within 10 s press the button of the hand
. By pressing
6. Release both buttons and remove the
B Multi Channel Transmitter to
1.
2. Type the channel number
3. On the hand transmitter keep the channel
4. Release both keys and remove the
C Multi Channel Transmitter to
1.
2. Keep button 2 on the Multi
3. Press Enter. The symbol in
4. Type the channel number
5. Type the channel number
1 2
3 4
5 6
7 8
9 0
OK
E N T E R
Cancel
6. Release both ENTER buttons and remove
Duplicating Multi Channel
Transmitter RT31
The codes of all the channels can be trans-
ferred from one Multi Channel Transmitter to
another Multi Channel Transmitter at once.
transmitter of which the code is supposed
to be transferred.
Keep it pressed until
the display shows the
completed process.
programming cable.
Transmitter
Connect the Multi Channel Transmitter and
the hand transmitter with the programming
cable.
into the Multi Channel
Transmitter and keep the
middle ENTER button
pressed.
The transmission process is
displayed.
button pressed of which the code is
supposed to be transferred. The LED of
the hand transmitter flashes rapidly and
lights up continuously after the code has
been memorized.
programming cable.
Multi Channel Transmitter
Connect the source and target transmitters
with the programming cable.
Channel Transmitter pressed
until the display flashes.
the display is shown
continuously.
into the target transmitter.
Press and hold down the
middle ENTER button.
The display shows the
memorizing process.
into the source transmitter.
Press and hold down the
ENTER button.
The display shows the
memorizing process.
The display of the target
transmitter shows the
completed process.
the programming cable.
Press Up or DOWN to abort the
duplication process.
Please note that all codes which have
already been transferred are stored in
the target transmitter!
