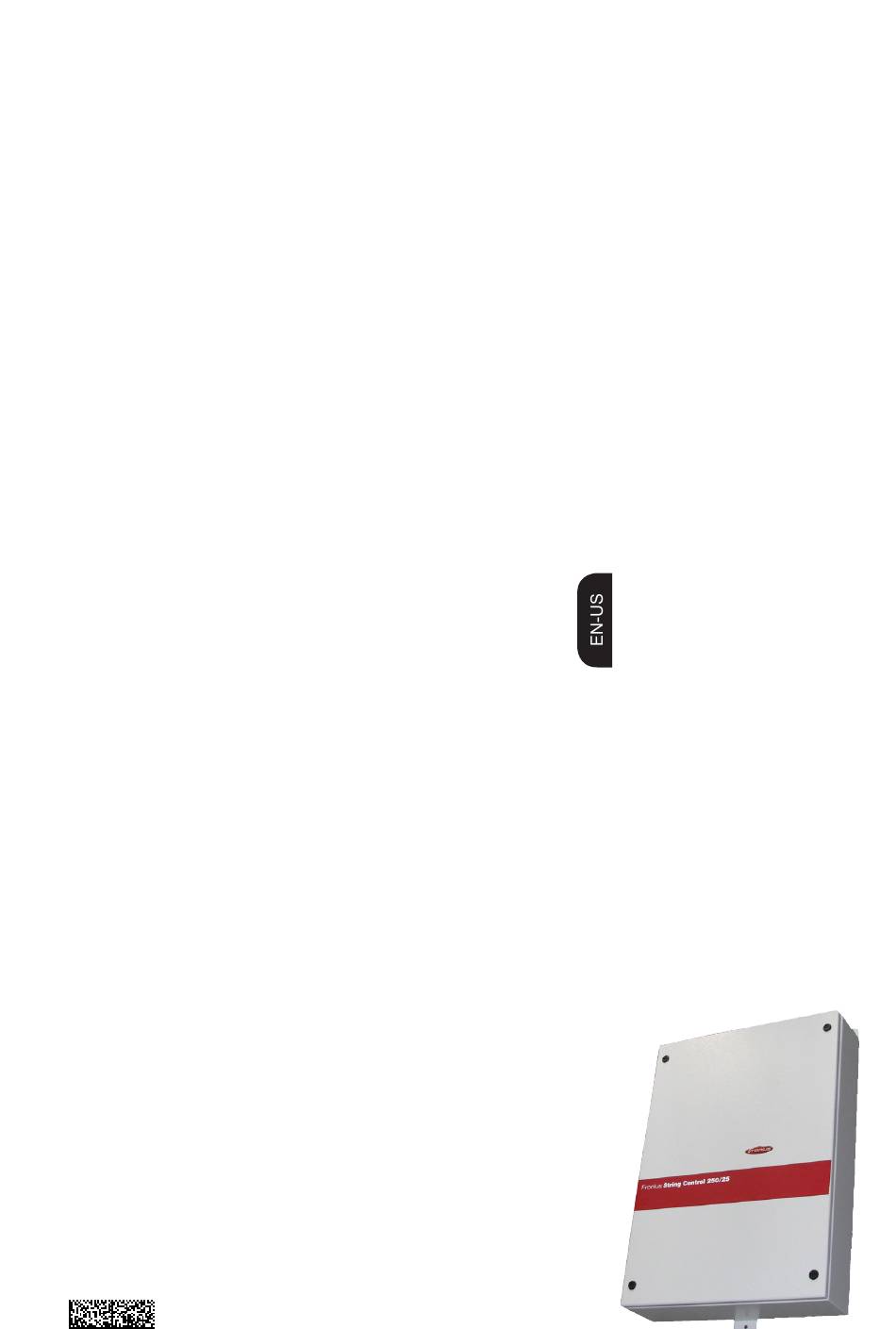

- Page 1 / Battery Charging Systems / Welding Technology / Solar Electronics Operating Instructions Fronius String Control 250/25 Data Communication 42,0426,0082,EA 005-12042012...
- Page 3 Fronius product. This introduction should provide you with general information about the equipment. Please read it carefully to learn about the many great features of your new Fronius product. This is the best way to get the most out of all the advantages that it has to offer.
- Page 4 ud_fr_st_et_01382 012008...
- Page 5 It calls attention to a procedure or practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the Fronius string Control 250/25 and/or other equipment connected to the Fronius String Control 250/25 or personal injury.
- Page 7 Safety Instructions Explanation of „DANGER!“ Indicates an immediate danger. Death or serious injury may Safety Warnings! result if appropriate precautions are not taken. „WARNING!“ indicates a potentially dangerous situation. Death or serious injury may result if appropriate precautions are not taken. „CAUTION!“...
- Page 8 Intended Use The equipment may only be operated in compliance with its intended use. Any other purpose does not constitute intended use. The manufacturer is not responsible for any damages resulting from unintended use. Intended use also includes: reading and complying with all general information as well as safety information and warnings from the operating instructions compliance with all inspection and maintenance requirements installation as per operating instructions...
- Page 9 Information on The inverter generates a maximum sound power level of <80dB(A) (ref. Noise Emission 1pW) at full-load operation according to IEC 62109-1. Values The cooling of the device takes place via an electronic temperature control system at the lowest possible noise level and depends on the power used, ambient temperature and the soiling level of the device, etc.
- Page 10 Electrical Installa- Electrical installations may only be carried out in accordance with relevant tions national and local standards and regulations. ESD Precautions Danger of damage to electronic components due to electrostatic discharge. Take appropriate ESD precautions when replacing and installing compon- ents.
-
Page 11: Table Of Contents
Safety ..........................8 Drilling Pattern ........................ 9 Attaching the Fronius String Control 250/25 to a Concrete or Brick Wall ......9 Attaching the Fronius String Control 250/25 to a Wooden Wall ........10 Attaching the Fronius String Control 250/25 to a Metal Carrier ........10 Knocking out Cable Input Openings and Mounting Conduits on the Fronius String Control 250/25 .......................... - Page 12 Additional Insulation for Data Communication Cables ........... 25 Configuration example ....................26 Safety ........................... 26 Connecting RJ 45 Data Communication Cables to the Fronius String Control 250/25 ... 27 Connecting Unterminated Multi-core Data Communication Cables to the Fronius String Control 250/25 ......................27 Terminal assignments ....................
-
Page 13: General
Fronius String Control 250/25 (open) Status messages can be sent via e-mail or SMS when using the “Fronius Solar.access“ software together with the “Fronius Datalogger.“ This allows a defective solar module to be detected quickly. -
Page 14: Fcc Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Standards and Your Fronius String Control 250/25 complies with the requirements for the Regulations following standards "Inverters, converters and controllers for use in inde- pendent power systems": UL1741-2005 ANSI / IEEE C62.41... -
Page 15: Product Description
The following documentation should be read and understood in its entirety before the described func- tions are carried out: These operating instructions All system component operating instructions including safety instructions Fronius String Control 250/25 - Housing Item Description Cover screws (4 x) Cover... -
Page 16: Fronius String Control 250/25 - Connection Area
Fronius String (15) (14) Control 250/25 - Connection Area (13) (12) (11) (10) Item Description Address switches Measuring channel 5 Measuring channel 4 Measuring channel 3 25 Terminals with fuse holders for DC cable ‘IN’ cable cross section AWG 14 - AWG 8... - Page 17 Fronius String Item Description Control 250/25 (14) 2 RJ 45 connections for data communication cable - Connection (15) Connection for external 12 V DC power supply Area (continued)
-
Page 18: Selecting A Location
Screws um screws capable of supporting 46.26 lbs. for Mounting Installation The Fronius String Control 250/25 can be installed in any position from Position horizontal to vertical. However, the cable inputs and outputs should point downwards as much as possible. -
Page 19: Drilling Pattern
Drilling Pat- (a) = 8.86 in (225 mm) tern (b) = 28.86 in. (733 mm) (c) = 29.4 in. (746 mm) (d) = 9.84 in. (250 mm) (b) (c) Attaching the Fronius String Control 250/25 to a Concrete or Brick Wall... -
Page 20: Attaching The Fronius String Control 250/25 To A Wooden Wall
Attaching the Fronius String Control 250/25 to a Wooden Wall Attaching the Fronius String Control 250/25 to a Metal Carrier... -
Page 21: Knocking Out Cable Input Openings And Mounting Conduits On The Fronius String Control 250/25
Take care that safety notes and rating plates located on the housing are not damaged when knocking out cable input openings. Cable Input Generally cables can be lead into the Fronius String Control 250/25 from Areas below or sidwise. The following figure shows all possible cable input areas and the approp- riate measurements. -
Page 22: Maximum Conduit Size
Maximum The Fronius String Control 250/25 is designed for a maximum conduit Conduit Size size of 4 in. Recommenda- Fronius recommends inserting all cables from below into the Fronius tion for Inser- String Control 250/25. ting Cables The following working steps refer to inserting cables from below. Connec- ting sidewise inserted cables is similar and will not be described in these operating instructions. -
Page 23: Knocking Out Cabel Input Openings On The Fonius String Control 250/25
250/25 is powered up. When removing knockouts, make sure String Control that: 250/25 no loose metal parts fall into the fronius string Control 250/ any metal pieces that do fall into the Fronius String Control 250/25 are removed immediately 3/4 in. -
Page 24: Connecting Solar Module Strings To The Fronius String Control 250/25
More exact data for sizing the solar array for the particular location can be obtained using calculation tools such as the Fronius Configura- tion Tool (available on http://www.fronius-usa.com). See NEC table 690.7 for the appropriate code-related voltage adjust- ment factor for crystalline silicon modules, or use the manufacturer’s... -
Page 25: Necessary Inside Cable Length Of The Fronius String Control 250/25
Necessary To ensure problem-free DC cable connections to the terminals, all DC Inside Cable cables inside the Fronius String Control 250/25 must have a certain mini- Length of the mum length. Fronius String Depending on which side the DC cables are inserted from into the Fronius... -
Page 26: Notes For Connecting Solar Module Strings To The Fronius String Control 250/25
Notes for NOTE! Connecting the DC wiring with the Connecting wrong polarity may cause damage to the Solar Module Fronius String Control 250/25. Strings to the Check both the polarity and the open Fronius String circuit voltage. Control 250/25 The DC Voltage must not exceed 600 V, regard- less of temperature. -
Page 27: Connecting Solar Module Strings To The Fronius String Control 250/25
Connecting CAUTION! Danger of damaging the Fronius String Control 250/ Solar Module 25 by overload. Connect a maximum of 20 A to any DC input Strings to the terminal, maximum 50 A per measuring channel. Fronius String Control 250/25 Tightening torque 1.48 ft lb. -
Page 28: Connecting The Fronius String Control 250/25 To The Inverter
Connecting the Fronius String Control 250/25 to the Inverter Safety WARNING! An electrical shock can be fatal. Danger from DC voltage from solar modules. Make sure that the input and output sides in front of the device are not charged before connecting anything. -
Page 29: Cable Lugs For Dc Cable 'Out
CAUTION! Danger of damaging the Fronius String Control 250/ 25 from improperly connected terminals. Improperly connected terminals can cause thermal damage to the Fronius String Control 250/25 and may cause a fire. -
Page 30: Connecting Dc Cable 'Out' To The Fronius String Control 250/25
Connecting DC Cable ‘OUT’ to the Fronius String Control 250/25 Tightening torque 20.65 ft lb. Tightening torque 20.65 ft lb. NOTE! Label the DC cables ‘OUT’ according to their designated polarity. Tightening torque 20.65 ft lb. Connection of 1 or 2 cables per DC output Important! When connecting 2 cables with a 2-hole cable lug consi- der, that both cable lugs may only be put together on their flat side. - Page 31 Connecting 1. Connect the DC cable ‘OUT’ to the inverter as per the inverter opera- the Fronius ting instructions. String Control 250/25 to the NOTE! Note the following points when connecting: Inverter String fuses must always be in the ungrounded conductor Connect the DC cable ‘OUT’...
-
Page 32: Criteria For The Proper Selection Of String Fuses
Criteria for the Proper Selection of String Fuses General The use of string fuses in the Fronius String Control 250/25 US also adds fuse protection to the solar modules. A crucial factor for the fuse protection of solar modules is the maximum short circuit current I of the respective solar module. -
Page 33: Fuses
Application Example: Maximum short circuit current (I ) of the solar module = 5.75 A Example According to the criteria for selecting the correct fuse, the fuse must have a nominal current greater than 1.8 times and less than 2.4 times the short circuit current: 5.75 A x 1.8 = 10.35 A 5.75 A x 2.4 = 13.8 A... -
Page 34: Inserting String Fuses
Inserting String Fuses Safety WARNING! An electrical shock can be fatal. Danger from DC voltage from solar modules. Make sure that the input and output sides in front of the device are not charged before connecting anything. Any and all connections should only be carried out by quali- fied electricians. -
Page 35: Connecting Data Communication Cables To The Fronius String Control 250/25
Connecting Data Communication Cables to the Fronius String Control 250/25 Connection There are two options for connecting the Fronius String Control 250/25 to Options Solar Net: Via connection-ready data communication cables with RJ 45 plugs Recommended cable size: CAT 5 Via unterminated multi-core data communication cables Max. -
Page 36: Configuration Example
Configuration Inverter Fronius Fronius Datalogger Web example with Fronius Com Card String Control 250/25 Line/ISDN +12V +12V +12V +12V +12V +12V OUT 1 +12V OUT 1 +12V OUT 1 +12V +12V +12V +12V *) Termination plug Safety WARNING! An electrical shock can be fatal. Danger from DC voltage from solar modules. -
Page 37: Connecting Rj 45 Data Communication Cables To The Fronius String Control 250/25
NOTE! Procedure when only 1 data communication cable is being connected to the Fronius String Control 250/25 (e.g., when the Fronius String Control 250/25 is the last component in a Solar Net): Insert the termination plug in the free RJ 45 connection. The termination plug is included with the Fronius Datalogger. -
Page 38: Terminal Assignments
NOTE! Procedure when only 1 unterminated multi-core data Unterminated communication cable is being connected to the Fronius String Multi-core Control 250/25 (e.g., when the Fronius String Control 250/25 is Data Commu- the last component in a Solar Net): nication Ca- If the data communication cable is connected to the „IN“... -
Page 39: Connecting An External Power Supply
Connecting an External Power Supply General The Fronius String Control 250/25 is supplied power through Solar Net. The power supply from Solar Net, however, may not be sufficient when combined with additional DATCOM components or when data communi- cation cables exceed a length of 66 m. -
Page 40: Setting The Address
Follow the safety rules in these operating instructions. General Solar Net allows up to 200 Fronius String Control 250/25’s to operate simultaneously. The individual Fronius String Controls are assigned addresses to distinguish them from one another. The address switch is used to set the address (0 to 199): Jumper for the hundreds’... -
Page 41: Installing The Protection Against Contact And Closing The Fronius String Control 250/25
Installing the Protection Against Contact and Closing the Fronius String Control 250/25 Safety WARNING! An electrical shock can be fatal. Danger from DC voltage from solar modules. Make sure that the input and output sides in front of the device are not charged before connecting anything. -
Page 42: Settings
Settings General Settings for the Fronius String Control 250/25 are made in the “Fronius Solar.access“ software. Initial Steps Install Fronius Solar.access software on a PC Administration / Create PV System PV Systems / [System Name] / Settings / String Control... -
Page 43: Strings Per Measuring Channel
If the Fronius String Control 250/25 detects that one of the measuring channels deviates too much from the average, a status message is sent to the Fronius Datalogger. -
Page 44: Display Of Data And Status Messages
SMS, fax or e-mail. For further details please refer to the DATCOM opera- ting instructions. The Fronius String Control 250/25 service codes are states 901 to 905. These service codes indicate an excessive deviation in measuring chan- nels 1 to 5. -
Page 45: Replacing String Fuses
Replacing String Fuses Safety WARNING! Operating the equipment incorrectly can cause serious injury and damage. The following activities must only be carried out by trained and qualified personnel. Follow the safety rules in these operating instructions. WARNING! An electrical shock can be fatal. Danger from DC voltage from solar modules. -
Page 46: Finally
Find out and correct the cause of the defective fuse Finally... Reattach the cover Remove the short circuit to the solar module strings Reconnect solar module strings to the Fronius String Control 250/25 Reestablish the connection to the AC supply lines... -
Page 47: Technical Data
Technical Data Input data DC input voltage range 0 - 600 V Max. input voltage 600 V (at 1000 W/m² / 14°F in open circuit operation) Max. array short circuit current 12.5 A per string (1.25 * Imax) Max. number of strings (with solar module fuse) Admissible cable cross section min. -
Page 48: General Data
General Data Protection type NEMA 3R Protection class Type 1 (grounded) Ambient conditions -13°F - +140°F -25°C - +60°C Dimensions w x h x d (without mounting clips) 27.56 x 19.53 x 5.00 in. 700 x 496 x 127 mm Dimensions w x h x d (with mounting clips) 30.63 x 19.53 x 5.00 in. - Page 52 Fronius USA LLC Solar Electronics Division 4600 Wels, Froniusplatz 1, Austria 10421 Citation Drive, Suite 1100, Brighton, MI 48116 E-Mail: pv@fronius.com E-Mail: pv-us@fronius.com http://www.fronius.com http://www.fronius-usa.com Under http://www.fronius.com/addresses you will find all addresses of our sales branches and partner firms! ud_fr_se_so_00913 012011...
