Fronius String Control 250/25 - Connection Area - Fronius String Control 250/25 Operating Instructions Manual

Fronius String
Control 250/25
- Connection
Area

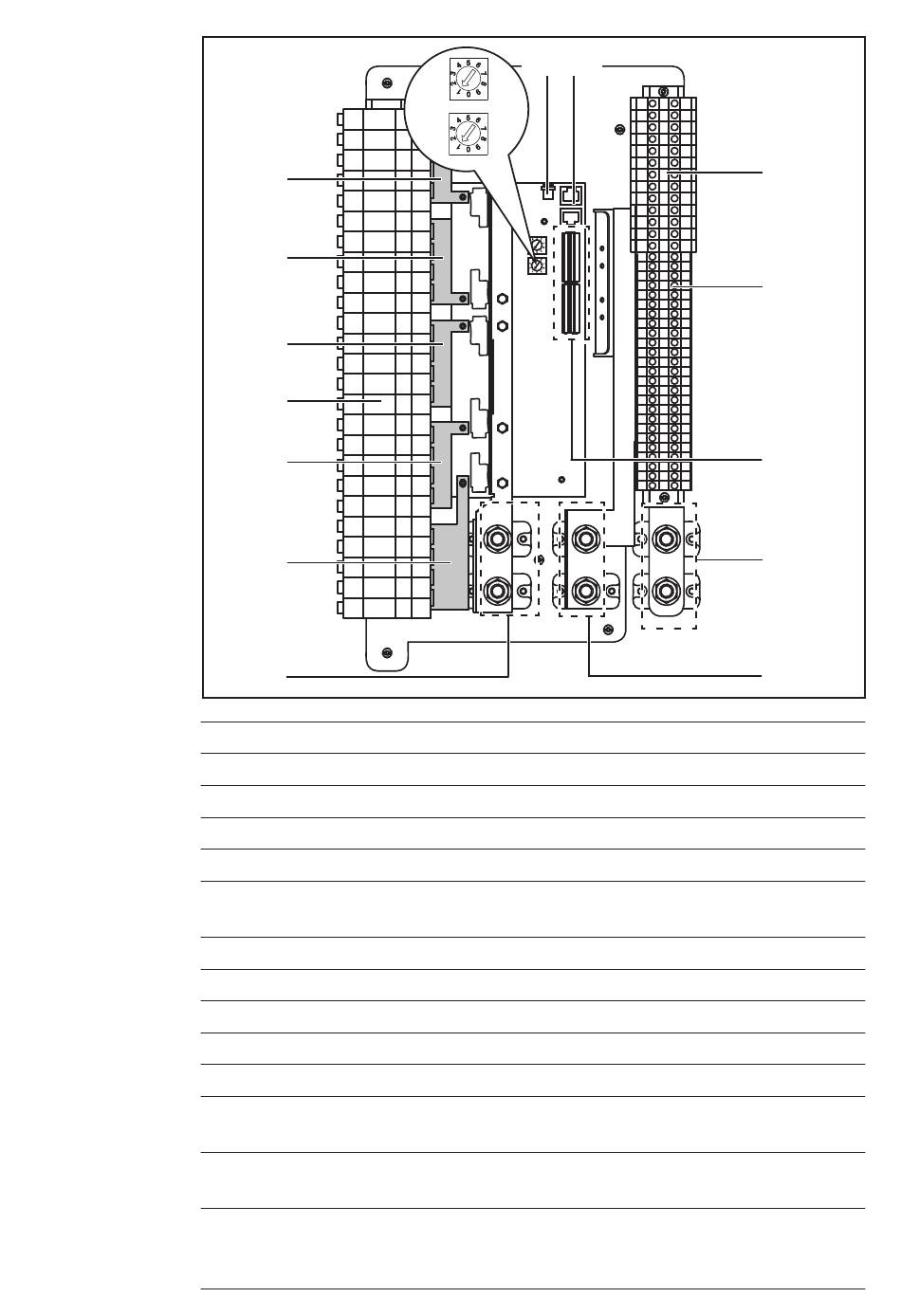

Item Description
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
Address switches
Measuring channel 5
Measuring channel 4
Measuring channel 3
25 Terminals with fuse holders for DC cable 'IN'
cable cross section AWG 14 - AWG 8
Measuring channel 2
Measuring channel 1
Connection 2 x M12 for DC cables 'OUT'
Connection 2 x M12 for DC cables 'OUT'
Connection 2 x M12 for grounding
2 x 8 Pressure type terminals for data communication cable
cable cross section max. AWG 14
25 Terminals for DC cable 'IN'
cable cross section AWG 14 - AWG 8
13 Grounding terminals (e.g. for grounding of max. 25 solar
module frames)
cable cross section max. AWG 6
