SYNC FUNCTION

Install a 10k R20 resistor if the board is synchronized from
an external signal generator.
Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from
DEMO MANUAL DC1161B

EMI FILTER

Install EMI filters on the backside of the DC1161, however,
a trace cut is required for the insertion of the option circuit.
See Figure 3 for the cut line.

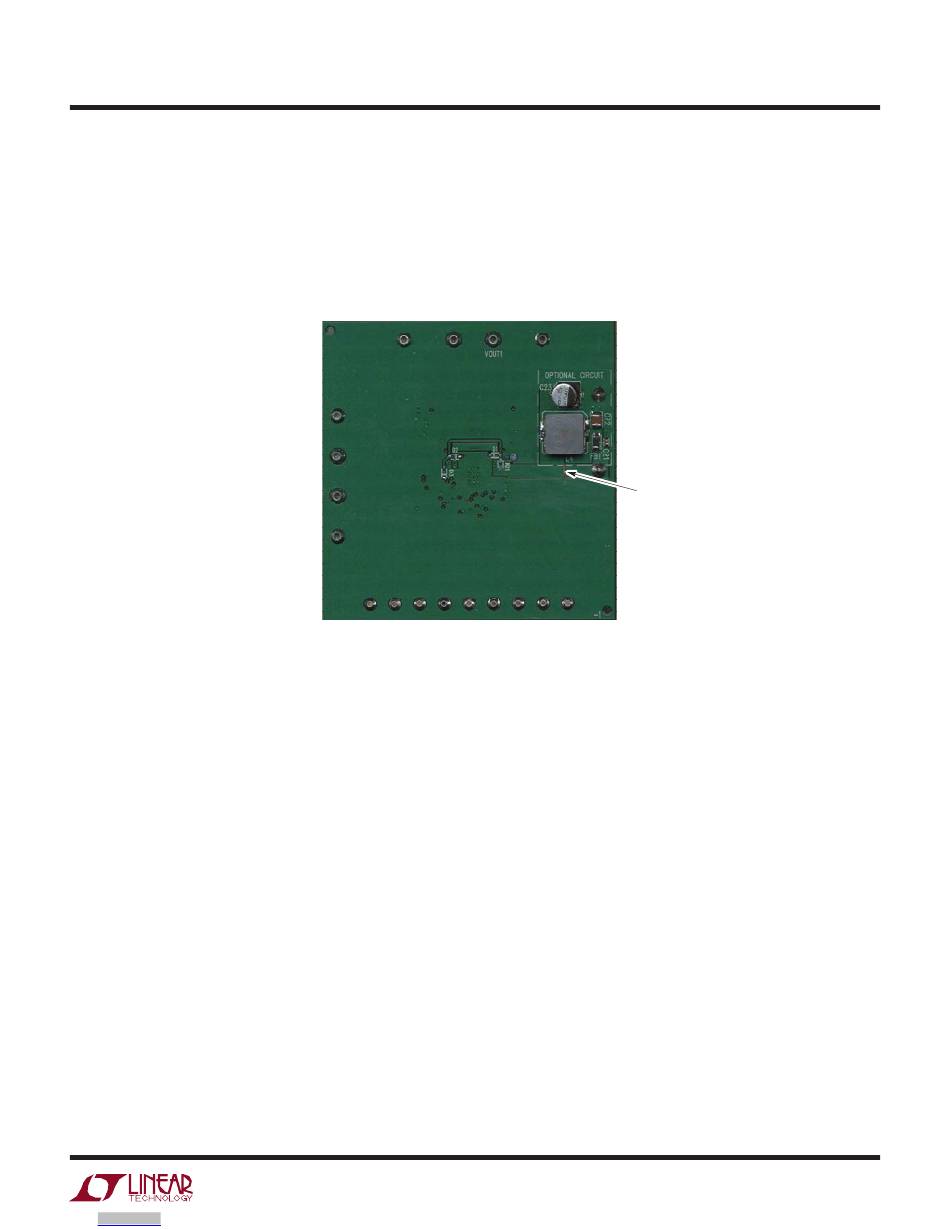

Figure 3. Cut Line for the EMI Filter Installation
CUT HERE
