DESCRIPTION

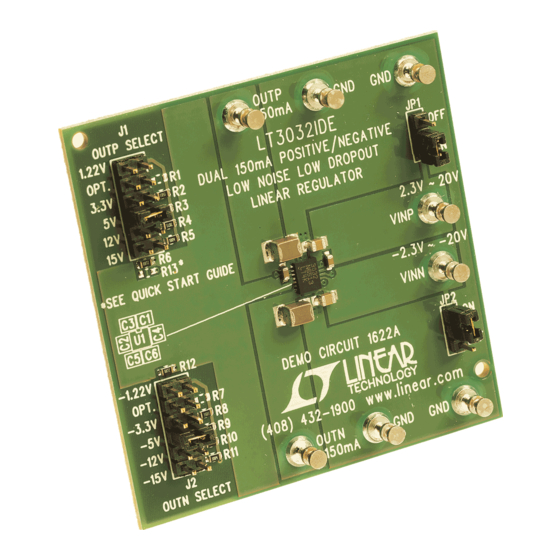

Demonstration circuit 1622A is a dual 150mA linear regula-
tor featuring the LT ® 3032. The LT3032 is a dual, positive
and negative low dropout linear regulator. Each regulator
supplies up to 150mA of output current with a typical 300mV
dropout voltage. Each regulator's quiescent current is low
(<3μA total in shutdown) and well controlled in dropout,
making it an excellent choice for battery-powered circuits.
A 0.01μF bypass capacitor to each regulator reduces output
voltage noise to 20μV
RMS
(negative regulator) over a 10Hz to 100kHz bandwidth.
The LT3032 is stable with minimum output capacitor of
2.2μF . The regulators do not require any additional ESR.
Internal protection circuitry includes reverse output protec-
tion, current limiting and thermal limiting. Each regulator
PERFORMANCE SUMMARY
PARAMETER
Minimum INP Input Voltage
Minimum INN Input Voltage
Maximum Input Voltage
Output Voltage V
OUT
Maximum Output Current
(positive regulator)/30μV
(T = 25°C)
A
CONDITION
I = 150mA
LOAD
I = –150mA
LOAD
V = 5V, I
OUTP LOAD
V = –5V, I
OUTN LOAD
J1, J2 Shunt in 7, 8
V = 7V, V
INP OUTP
V = –7V, V
INN OUTN

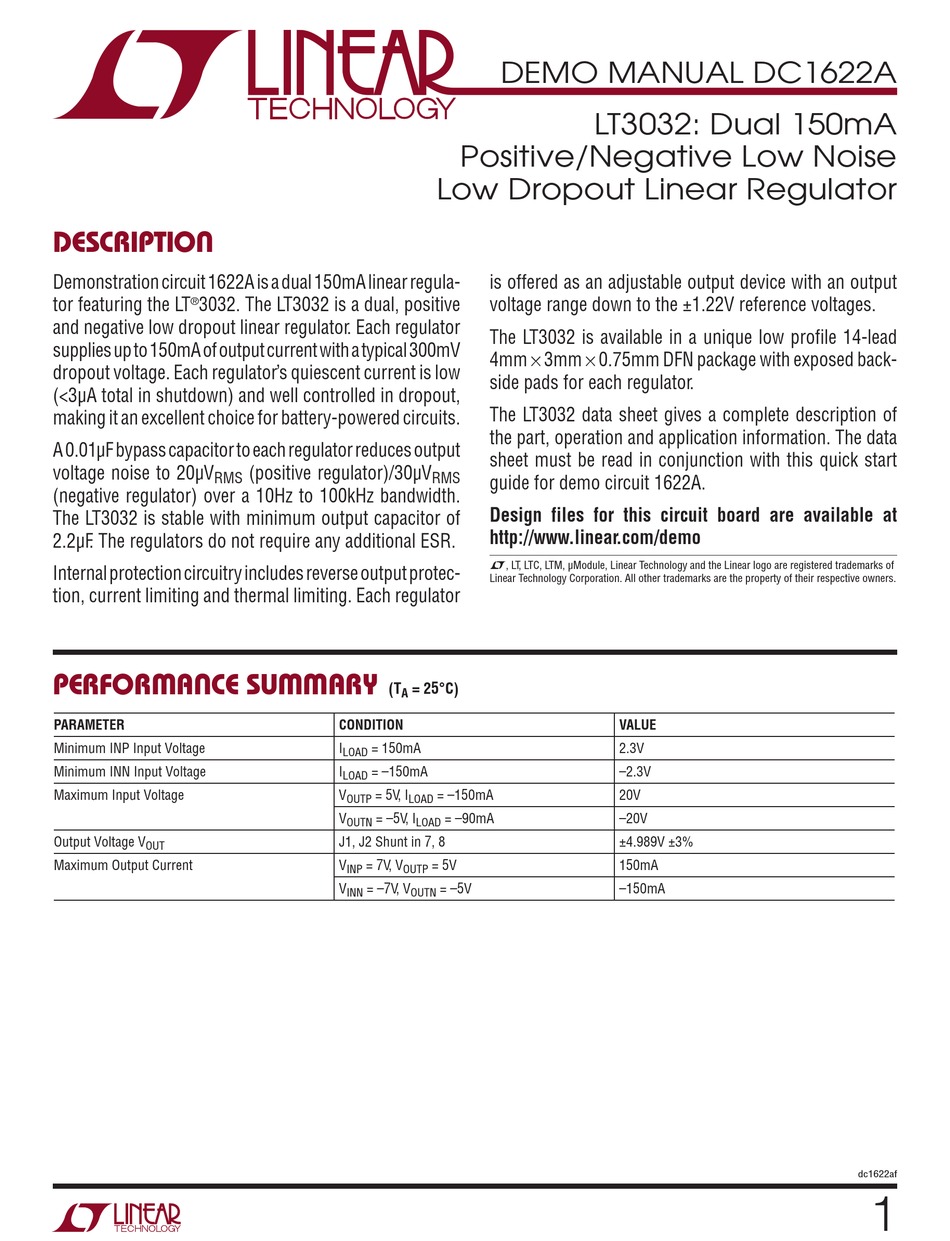

DEMO MANUAL DC1622A
LT3032: Dual 150mA
Positive/Negative Low Noise
Low Dropout Linear Regulator
is offered as an adjustable output device with an output
voltage range down to the ±1.22V reference voltages.
The LT3032 is available in a unique low profile 14-lead
4mm × 3mm × 0.75mm DFN package with exposed back-
side pads for each regulator.
The LT3032 data sheet gives a complete description of
the part, operation and application information. The data
sheet must be read in conjunction with this quick start
RMS
guide for demo circuit 1622A.
Design files for this circuit board are available at
http://www.linear.com/demo
