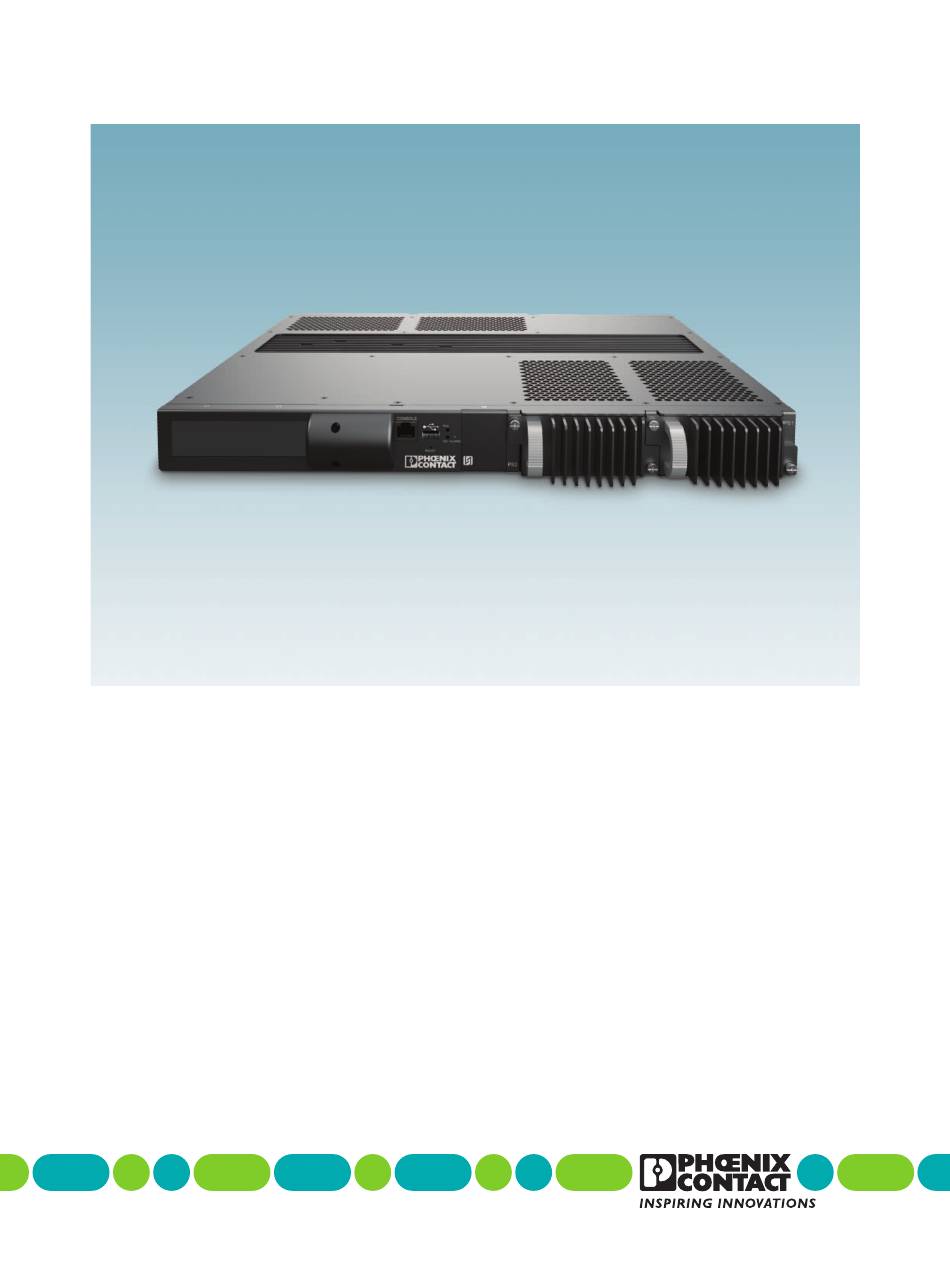

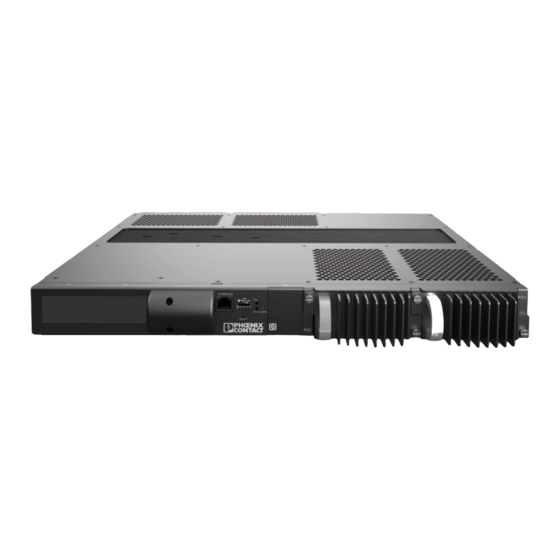

- Page 1 Hardware and installation for FL SWITCH EP74… User manual UM EN FL SWITCH EP74... HDWE...
- Page 2 FL SWITCH EP7400-PS-MV-C1 FL SWITCH EP7400-PS-HV-C1 FL SWITCH EP7400-M8GRJ45 FL SWITCH EP7400-M8GRJ45-C1 FL SWITCH EP7400-M8GSFP FL SWITCH EP7400-M8GSFP-C1 FL SWITCH EP7400-M4GSFP FL SWITCH EP7400-M4GSFP-C1 FL SWITCH EP7400-ABLK PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany phoenixcontact.com...
-
Page 3: Table Of Contents
DC power .....................21 4.5.3 Connecting the ground ................22 4.5.4 Alarm relay connections ...............23 Device management.........................25 Serial console ......................25 Ethernet ports and communication cabling............25 RJ45 Ethernet pinout ...................26 Recommendations for cables in high electrical noise environments....27 SFP........................27 3/40 4083_en_A PHOENIX CONTACT... - Page 4 General fiber optic cable handling instructions ........27 5.5.2 SFP application considerations ............28 Technical appendix........................29 Switch base ....................... 29 Power supply modules ..................30 Port/line modules....................31 Appendixes..........................35 List of figures ...................... 35 List of tables ....................... 37 4/40 PHOENIX CONTACT 4083_en_A...
-
Page 5: For Your Safety
FL SWITCH EP74… switch. Hardware assembly, environmental conditions, wire con- nections, and associated application factors are included. Configuring the firmware for a switch to perform in a way it is not capable of will result in no action. 5/40 4083_en_A PHOENIX CONTACT... -
Page 6: Product Changes
Incorrect operation or modifications to the device can endanger your safety or damage the device. Do not repair the device yourself. If the device is defective, please contact Phoenix Contact. This document was created with content and permission of IS5 Communications, Inc. -
Page 7: Overview And Ordering Data
FL SWITCH EP700-PS-MV- 1216669 coated Power supply module, AC/DC (85 … 264 V AC/88 … FL SWITCH EP700-PS-HV- 1216920 300 V DC), conformal coated Port/line module, 8 RJ45 ports, 10/100/1000 Mbps FL SWITCH EP7400- 1144375 M8GRJ45 7/40 4083_en_A PHOENIX CONTACT... - Page 8 SFP module, single mode fiber, 30 km, 1310 nm, LC, 1 Gbps FL SFP LX 2891767 SFP module, multimode fiber, 300 m, 850 nm, LC, 10 Gbps FL SFP-10G-SR 1145046 SFP module, single mode fiber, 20 km, 1310 nm, LC, FL SFP-10G-ER20 1145203 10 Gbps 8/40 PHOENIX CONTACT 4083_en_A...
-
Page 9: Components
The management port, a 10/100 Base-T Ethernet port, that is used as an out-of-band factory service port. It is disabled by default and not available for user access. – Power status LEDs indicate the status of the installed power supply modules. 9/40 4083_en_A PHOENIX CONTACT... - Page 10 This slot does NOT support IEEE 1588-based PTP signals. The FL SWITCH EP7400-ABLK blank slot filler plate protects empty slots from envi- ronmental contamination and unauthorized access to slot connectors. It may be in- stalled over slots 1-4. 10/40 PHOENIX CONTACT 4083_en_A...
-
Page 11: Port/Line Modules
4 accepts a module with four SFP+ ports that operates at 1000/10000 Mbps. Port/line module slot (LM1) Port/line module slot (LM4) Port/line module slot (LM2) Port/line modules Port/line module slot (LM3) Figure 3-4 Port/line module installation 11/40 4083_en_A PHOENIX CONTACT... -
Page 12: Power Supply Modules
FL SWITCH EP7400-PS-HV (Order No. 1144175) accepts 88 to 300 V DC and 85 to 264 V AC, 50/60 Hz input signals. Power supply slot 1 (PS1) Power supply modules Power supply slot 2 (PS2) Figure 3-6 Power supply module installation 12/40 PHOENIX CONTACT 4083_en_A... -
Page 13: Status Indicators
Table 3-2 Front LED indicators Label Color Indication PS1 and PS2 Green Normal operating status No power or module not installed Alarm Green Alarms cleared or acknowledged Active alarms 13/40 4083_en_A PHOENIX CONTACT... - Page 14 RJ45 SFP+ Figure 3-9 Port LEDs Table 3-3 Port status LEDs Port type Indication Indication RJ45 Left-side LED On Linked (on) Right-side LED flashing Data transfer in process SFP/SFP+ Linked (on) Flashing Data transfer in process 14/40 PHOENIX CONTACT 4083_en_A...
-
Page 15: Installation
Power and port module packaged items – Installation instruction sheet The blank slot filler module comes with screws for securing to the switch base. If there any missing or damaged items, contact your local Phoenix Contact office. 15/40 4083_en_A PHOENIX CONTACT... -
Page 16: Electrical/Mechanical Hazards Prevention
(e.g. power strips). Ensure that the rack mount adapters are installed on the correct side of the chassis. Do not store the switch in locations where it will be subject excessive dirt and dust and high humidity. Conformal coating is recommended for humid/moist applications. 16/40 PHOENIX CONTACT 4083_en_A... -
Page 17: Installation
When both front and rear brackets are used, the switch must have clearance above or below in the rack to be angled (with the mounting brackets installed) and placed in- side the rack mounting rails. O LE Figure 4-2 Rack mounting brackets showing four mounting brackets 17/40 4083_en_A PHOENIX CONTACT... -
Page 18: Power Supply Module Installation
To remove a power supply module, remove the screws securing the module in the slot. If a replacement module will not be installed, a blank cover (Order No. 1144428) must be in- stalled on the slot. 18/40 PHOENIX CONTACT 4083_en_A... -
Page 19: Port/Line Module Installation
(Order No. 1144428) must be installed on the slot. 4.4.4 SD card SD cards provide extra Syslog memory and allow manual transfer of Syslog files to a com- puter. 19/40 4083_en_A PHOENIX CONTACT... -
Page 20: Connections
The plug connector and wire gauge sizing is to be selected with appropriate design as per the electrical code for a 60 W, 1-phase device. All equipment must be installed according to applicable local wiring codes and standards. 20/40 PHOENIX CONTACT 4083_en_A... -
Page 21: Dc Power
Wire gauge sizing is to be selected with appropriate design as per the electrical code for a 60 W, 1-phase device. Remove the transparent plastic finger-safe cover from the terminal block. For an FL SWITCH EP7400-PS-MV or FL SWITCH EP7400-PS-LV power module in PS1: 21/40 4083_en_A PHOENIX CONTACT... -
Page 22: Connecting The Ground
If the FL SWITCH EP74… is used as cord-connected mains equipment for reliable ground- ing use it as: – pluggable equipment type B. – stationary pluggable equipment type A in a location with equipotential bonding or with a permanently connected protective earthing conductor. 22/40 PHOENIX CONTACT 4083_en_A... -
Page 23: Alarm Relay Connections
The contacts are energized upon power up of the unit and remain energized unless a critical error occurs. One common application for this output is to raise an alarm if a power failure or removal of control power occurs. 23/40 4083_en_A PHOENIX CONTACT... - Page 24 FL SWITCH EP74… 24/40 PHOENIX CONTACT 4083_en_A...
-
Page 25: Device Management
10Base-T Cat. 3, 4, 5, 100 Ω UTP 100 m (328 ft.) RJ45 100Base-T Cat. 5, 100 Ω UTP UTP 100 m (328 ft.) RJ45 1000Base-T Cat. 5/5e, 100 Ω UTP 100 m (328 ft.) RJ45 25/40 4083_en_A PHOENIX CONTACT... -
Page 26: Rj45 Ethernet Pinout
MDI/MDI-X pin assignments. 10/100 Base-T(X) MDI/MDI-X pin assignments is as follows: Table 5-5 10/100 Base-TX MDI port MDI-X port RJ45 pin Assignment TD+ (transmit) RD+ (receive) TD- (transmit) RD- (receive) RD+ (receive) TC+ (transmit Not used Not used RD- (receive) TD- (transmit) Not used Not used 26/40 PHOENIX CONTACT 4083_en_A... -
Page 27: Recommendations For Cables In High Electrical Noise Environments
For fiber connections always connect the TX fiber connection of switch A to the RX fiber connection of switch B. The SFP modules must be purchased separately. 5.5.1 General fiber optic cable handling instructions WARNING: Never look into fiber optic cables. Laser radiation might be emitted from disconnected fibers or connectors. 27/40 4083_en_A PHOENIX CONTACT... -
Page 28: Sfp Application Considerations
The 10 Gigabit industrial SFP technology is relatively new. Variances in technology impact compatibility with the switch. The Phoenix Contact 10 Gig SFPs, recommended in the ac- cessories section, use the SGMII 10 Gigabit SFP technology required for compatibility with the FL SWITCH EP74…... -
Page 29: A Technical Appendix
5 … 95% Air pressure, operation 86 … 106 kPa (up to 2000 m) Overvoltage category Pollution degree Shock test (IEC 60255-21-2, Class 1) Vibration (IEC 60255-21-1, Class 1) Seismic (Single axis sweep) Class 1 Free fall 29/40 4083_en_A PHOENIX CONTACT... -
Page 30: Power Supply Modules
60 A for 0.4 ms FL SWITCH EP7400-PS-MV 104 A for 0.4 ms FL SWITCH EP7400-PS-HV 45 A @ 230 V AC for 2 ms Overload current protection 3.15 A internal fast-acting fuse, not replaceable Type Hot-swappable 30/40 PHOENIX CONTACT 4083_en_A... -
Page 31: A 3 Port/Line Modules
FCC Part 15, subpart B, CISPR 32/EN 55032 and CISPR 24/EN 55024 Class A Damped oscillatory wave, 1 MHz IEC 61850-3 clause 6.7.3, IEC 61000-4-18, IEEE 1613 clause 6, IEEE 1613.1 clause 5, 2.5 kV CM 31/40 4083_en_A PHOENIX CONTACT... - Page 32 10, 100 A/m continuous, 1000 A/m for 3 s Voltage dips and drops (AC/DC) IEC 61850-3 clause 6.7.3, IEC 61000-4-29, IEC 61000-4-11 Damped oscillatory magnetic field IEEE 1613.1 clause 11, IEC 61000-4-10, 100 A/m (peak) Flammability V1, IEC 61850-3 clause 6.6.6 32/40 PHOENIX CONTACT 4083_en_A...
- Page 33 RFC 2068: HTTP RFC 2131, 2132: DHCP RFC 2236: IGMP v2 RFC 3376: IGMP v3 RFC 2474: DiffServ Precedence RFC 3580: 802.1x RADIUS RFC 4250-4252 SSH Protocol Approvals Country specific CE, RoHS II, EAC Safety IEC 62368-1 33/40 4083_en_A PHOENIX CONTACT...
- Page 34 FL SWITCH EP74… 34/40 PHOENIX CONTACT 4083_en_A...
-
Page 35: Appendixes
Figure 4-3: Power supply module installation ............18 Figure 4-4: Port/line module structure ..............19 Figure 4-5: Terminal block connections ..............20 Figure 4-6: AC power connections ................20 Figure 4-7: DC power connections ................21 Figure 4-8: Connecting ground ................22 35/40 4083_en_A PHOENIX CONTACT... - Page 36 FL SWITCH EP74… 36/40 PHOENIX CONTACT 4083_en_A...
-
Page 37: List Of Tables
Ethernet cable types ................25 Table 5-3: RJ45 pinout for 10/100 Base-T(X) ............26 Table 5-4: RJ45 pinout for 1000 Base-T(X) ............26 Table 5-5: 10/100 Base-TX MDI port MDI-X port ..........26 Table 5-6: 1000 Base-TX MDI port MDI-X port .............27 37/40 4083_en_A PHOENIX CONTACT... - Page 38 FL SWITCH EP74… 38/40 PHOENIX CONTACT 4083_en_A...
- Page 39 The receipt of technical documentation (in particular user documentation) does not constitute any further duty on the part of Phoenix Contact to furnish information on modifications to products and/or technical documentation. You are responsible to verify the suitability and intended use of the products in your specific application, in particular with regard to observing the applicable standards and regulations.
- Page 40 Middletown, PA 17057 Should you have any suggestions or recommendations for improvement of the contents and layout of our manuals, please send your comments to: tecdoc@phoenixcontact.com 40/40 PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany phoenixcontact.com...
