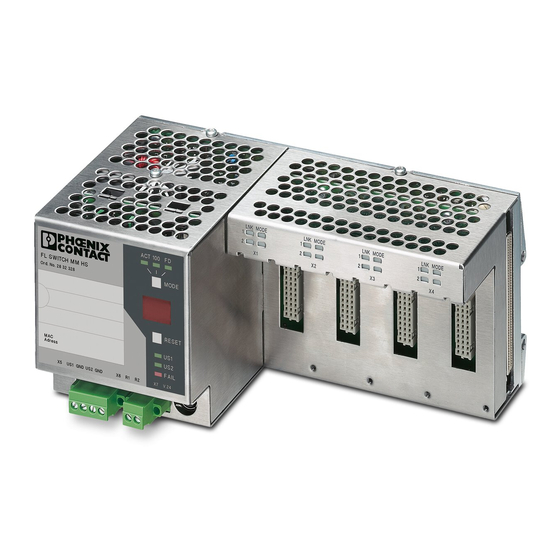

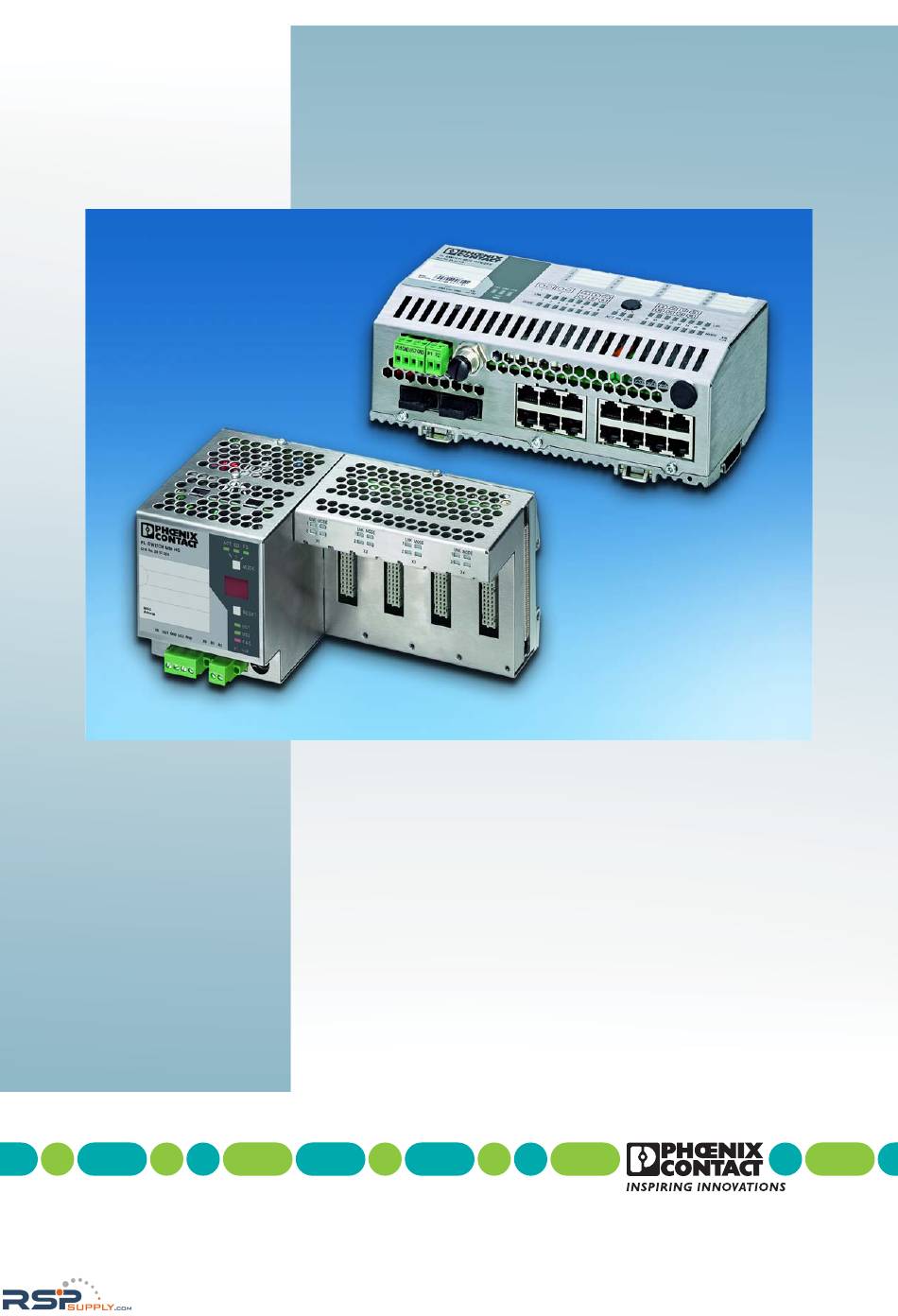

Page 1 AUTOMATION User manual FL SWITCH MM HS UM E for FL SWITCH MM HS FL SWITCH MCS ... Modular Managed (Compact) Switch System RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 2 Modular Managed Switch System (MMS) with firmware Version 4.70a and the Managed Compact Switch (MCS) with firmware Version 4.72 2012-01-23 Designation: FL SWITCH MM HS UM E Revision: Order No.: — This user manual is valid for (see ordering date in chapter 12): The MMS and the MCS with firmware Version 4.70a (MMS)/4.72 (MCS) in the Factory Line product range.
Page 3 How to contact us Internet Up-to-date information on Phoenix Contact products and our Terms and Conditions can be found on the Internet at: www.phoenixcontact.com Make sure you always use the latest documentation.
Page 4 All information made available in the technical data is sup- plied without any accompanying guarantee, whether expressly mentioned, implied or tacitly assumed. In general, the provisions of the current standard Terms and Conditions of Phoenix Contact apply exclusively, in par- ticular as concerns any warranty liability.
Page 5: Table Of Contents
FL SWITCH MM HS/M for GL-certified operation ......2-11 2.7.3 Alarm contact ..................2-12 2.7.4 V.24 (RS-232) interface for external management ......2-13 Grounding......................2-13 Startup and functions ......................3-1 Basic settings ..................... 3-1 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 6 (1.3.6.1.2.1.17.7) ............4-65 4.3.8 rstp MIB (1.3.6.1.2.1.17.11) .............. 4-68 4.3.9 IANAifType MIB (1.3.6.1.2.1.30) ............4-69 4.3.10 IF MIB (1.3.6.1.2.1.31) ..............4-69 4.3.11 pnoRedundancy MIB 1.3.6.1.4.1.24686 ........... 4-72 4.3.12 Private MIBs ..................4-73 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 7 "General Multicast Configuration" web page ........7-8 Multicast source detection..................7-9 7.5.1 Properties of multicast source detection ..........7-9 Virtual Local Area Network (VLAN) ..................8-1 Basics.........................8-1 Enabling the VLAN web pages in web-based management ....... 8-1 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 8 Technical data ....................12-1 12.1.1 Technical data (MMS) ............... 12-1 12.1.2 Technical data (MCS) ............... 12-5 12.1.3 Revision history of this manual ............12-7 12.2 Typical current consumption (MMS) - (Example)..........12-8 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 9 Ordering data ....................12-9 12.3.1 Ordering data (MMS) ................12-9 12.3.2 Ordering data for GL-certified components (GL Certificate No. 24 2750 4 HH) ............12-9 12.3.3 Ordering data (MCS) ..............12-10 12.3.4 Accessories (MMS/MCS) ............... 12-10 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 10 FL SWITCH MM HS / FL SWITCH MCS PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 11: The Modular Managed Switch System (Mms) And The Managed Compact Switch (Mcs)
50 m. This provides cost savings both during installation and for maintenance when replacing mechanically damaged fiber optic cables. HCS fiber technology is available for distances of up to 300 m. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 12 The switches can be operated in PC WorX and Step 7 environments as conformance class B PROFINET IO devices. Connections to PLC systems can be easily implemented for diagnostic and communication applications. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 13: System Components (Mms)
Up to two extension modules can be connected to a head station, which means that the maximum system configuration comprises 24 Ethernet ports. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 14 Interface modules provide the desired interface to the network. The two outlet directions, the various types of media supported, and the port density of two ports per interface module provide a high degree of flexibility in terms of the system configuration. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 15: Mms Firmware Versions And Their Functions
The VLAN for management can be set: VLAN ID to manage (web, SNMP, ping, IGMP query) the switch in "VLAN Tagging" mode – DHCP relay agent can be disabled according to the port – PROFINET alarms and configuration comparison – Fast aging on link down 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 16 Firmware 4.70a offers the following additional functions: – Support of time synchronization using SNTP – Support of the PDEV function for the PROFINET environment – Support of Smart mode for easily selecting the operating mode PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 17: Firmware Functions And The Required Hardware (Mms)
This information is then displayed by all port-specific LEDs (see also example on page 1-13). – Connection for extension module (FL MXT) Connect the first of a maximum of two extension modules here. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 18 Important information is displayed directly on the device. – Connection for second extension module Connect the second extension module here. – Connection for interface modules This is where the various interface modules are inserted and locked in place. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 19 – Ethernet ports These are the ports for the various interfaces and connection directions. – Marking groove for Zackband ZBF ... – Mounting screws to lock the interface modules in place. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 20: Dimensions Of The Modular Managed Switch System For Normal Operation
MMS housing dimensions in millimeters Housing dimensions of the converter board with interface module 110.5 Housing width: 67 mm Figure 1-7 Housing dimensions of the FL CB IF converter board 1-10 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 21: Dimensions Of The Modular Managed Switch System For Gl-Certified Operation
U S 1 G N D U S 2 G N D V . 2 4 6 8 7 4 0 0 2 8 Figure 1-9 Assignment of ports to slots 1-11 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 22: Status And Diagnostic Indicators
Half duplex if Link LED is active ACT and 100 and FD Green Flashing PROFINET device identification simultaneously ACT or 100 or FD Green Flashing No IP parameter present following restart (selected by mode switch) 1-12 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 23 L N K M O D E A C T 1 0 0 M O D E 6 8 7 4 0 0 0 1 Figure 1-10 Example for status indicators 1-13 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 24: Meaning Of The 7-Segment Display (Mms)
FL SWITCH MM HS 1.3.2 Meaning of the 7-segment display (MMS) If the MMS has established a PROFINET connection, a dot appears in the bottom-right corner of the display. 1-14 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 25 The memory module is empty Messages during operation with the MRP memory module: Display Meaning Loop Failure - the MRP manager has detected an error in the redundant ring 1-15 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 26 PROFINET IO device. The configu- – Modify the control program so that it contains the existing ration of the switch and the configu- switch configuration. ration transmitted by the PROFINET engineering tool are different 1-16 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 27 Incorrect ports. Make sure that the MRP ring is only created via ports that are configured as an MRP port. – Unsuitable switches. Make sure that all the switches that form the MRP ring support MRP. 1-17 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 28: Properties (Mcs)
The points under "Remedy" are recommendations; they do not all have to be carried out for every error. For all other message codes that are not listed here, please contact Phoenix Contact. The Managed Compact Switch (MCS) is an Ethernet switch that is suitable for industrial use.
Page 29 – Support of up to 128 multicast groups, of which up to 20 are static groups Firmware 4.70 offers the following additional functions: – Support of time synchronization using SNTP 1-19 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 30 Support of the PDEV function for the PROFINET environment – Support of Smart mode for easily selecting the operating mode – MEM plug support – MRP master function in conjunction with MEM PLUG/MRM 1-20 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 31: Firmware Functions And The Required Hardware (Mcs)
71 mm / 2.795 in. 95 mm / 3.74 in. 10 mm / 0.39 in. Figure 1-12 Housing dimensions of the MCS in millimeters (inches); depth: 71 mm from upper edge DIN rail 1-21 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 32: Device View (Mcs)
The floating alarm contact can be connected here via a 2-pos. COMBICON connector. – Supply voltage connection The supply voltage can be connected redundantly via the 4-pos. COMBICON connector as an option. – Slot for MEM PLUG 1-22 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 33: Mounting And Installation
Mount the head station/MCS on a clean DIN rail according to DIN EN 50 022 (e.g., NS 35 ... from Phoenix Contact). To avoid contact resistance only use clean, corrosion-free DIN rails. Before mounting the modules, an end clamp (E/NS 35N, Order No.
Page 34 Then swivel the bottom of the module away from the DIN rail slightly (A). Next, lift the module upwards away from the DIN rail (B). Figure 2-2 Removing the head station PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 35: Mounting And Removing Extension Modules (Mms)
Removal Mounting Figure 2-4 Mounting/removing extension modules 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 36 Pull down the holding latches using a suitable tool (e.g., screwdriver). Then swivel the bottom of the module away from the DIN rail slightly (A). Next, lift the module upwards away from the DIN rail. Figure 2-5 Removing extension modules PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 37: Mounting And Removing Interface Modules (Mms)
Figure 2-6 Mounting interface modules Now push the interface modules towards the basic module until the connector and the holding clamp are snapped into place. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 38 Removal: Remove the mounting screw. Figure 2-8 Removing the mounting screw on interface modules Press the positive latch (A) and pull out the module (B). Figure 2-9 Removing the interface module PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 39: Arrangement Of The Interface Modules
Port Port Port Port Port Reset 00A0451BDD Address Fail Port Port Port Port Port Port Port Port Port Port Port Port US1 GND V.24 Figure 2-10 Arrangement of the interface modules 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 40: Mounting And Removing The Fl M Label Labeling Field (Accessories)
Push the expansion plug through the mounting holes and into the openings on the top of the MMS (A). – Press down on the expansion plug cap to secure the plug (B). Figure 2-12 Mounting the labeling field PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 41: Removal
MCS. Once inserted, carefully turn the safety screw clockwise. To remove the MEM PLUG, perform the above in reverse order. The MEM PLUG can be inserted and removed during operation. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 42: Installing The Mms Or Mcs
V . 2 4 2 4 V D C 2 4 V D C 6 8 7 4 0 0 0 6 Figure 2-16 Supplying the system using two voltage sources 2-10 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 43: Connecting The Supply Voltage To The Fl Switch Mm Hs/M For Gl-Certified Operation
ACT 100 MODE FL SWITCH MM HS Ord. No. 28 32 32 6 Reset 00A0451BDD Address Fail 1- 3 US1 GND V.24 Figure 2-17 Supplying the system using one voltage source 2-11 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 44: Alarm Contact
Figure 2-15 or Figure 2-17 (for GL on the MMS), or by deactivating redundant power supply monitoring in web-based management. 2-12 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 45: V.24 (Rs-232) Interface For External Management
U S 1 G N D U S 2 G N D V . 2 4 6 8 7 4 0 0 0 8 Figure 2-21 Switch on a grounded DIN rail 2-13 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 46 FL SWITCH MM HS 2-14 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 47: Startup And Functions
(OID 1.3.6.1.2.1.17.4.2). The available setting range is 10 - 825 seconds. For static configuration, an aging time of 300 seconds is recommended. During switch restart, the active configuration including IP parameters is written to a plugged-in memory module or MEM plug. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 48: Using Smart Mode
Table 3-1 Operating modes in Smart mode Mode Display (MMS only) LED 1 LED 2 LED 3 Exit Smart mode without changes Reset to default settings Set PROFINET mode Set Ethernet/IP mode PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 49 Startup and functions Example: When the switch is in Smart mode, exiting Smart mode triggers the following action: Exit without Reset to default changes settings PROFINET Ethernet/IP Figure 3-1 Example for Smart mode 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 50: Assigning Ip Parameters
Classes D and E are hardly ever used. It is therefore usually sufficient if a network device only "recognizes" Classes A, B, and C. Bit 1 Bit 32 61462056 Figure 3-2 Position of bits within the IP address PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 51 Network ID 28 bits Class D Identifier for multicast group 224.0.0.0 - 239.255.255.255 27 bits Class E Reserved for future applications 240.0.0.0 - 247.255.255.255 61492009 Figure 3-3 Structure of IP addresses 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 52 IP address for the network class. Example: An IP address from Class A contains a 1-byte network address and a 3-byte computer address. Therefore, the first byte of the subnet mask may only contain "ones". PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 53 0101 1001.1110 1010.0100 0000.0000 0000 61462012 Subnetwork After ANDing, the software determines that the relevant subnetwork (01) does not correspond to the local subnetwork (11) and the data telegram is forwarded to a subnetwork router. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 54: Flowchart After A Restart
Data in head station Flash valid? Load data from memory module Load default values Load data from head station Flash Boot process completed? Save data Figure 3-4 Flowchart: Loading the configuration data PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 55 If DHCP is selected as the assignment mechanism, the DHCP server must offer a DHCP lease time of at least five minutes, so that the switch accepts the assigned IP parameters. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 56: Starting Up Interface Modules With The Mms
Auto crossing is only available if auto negotiation is activated. – Auto polarity The polarity is changed automatically by the switch if a pair of twisted pair receive cables (RD+ and RD-) are connected incorrectly. 3-10 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 57 Connecting the RJ45 connectors Industrial RJ45 connector with additional latching The figure below shows the VS-08-T-G-RJ45/IP20, which can be snapped directly onto the interface module. Figure 3-7 Using the VS-08-T-G-RJ45/IP20 3-11 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 58: Fl If 2Pof 10/100
To prevent dirt from entering the connectors, do not remove the dust protection caps until just before connecting the connectors. The same applies for the protective caps on the connectors. 3-12 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 59 Startup and functions F-SMA is a standardized fiber optic connection. We recommend the use of easy to operate F-SMA connectors with quick mounting connection from Phoenix Contact. The connectors are secured on the interface module by manually tightening the screw collar.
Page 60 P o r t P o r t P o r t 6 8 7 4 0 0 1 9 Figure 3-11 Assignment of F-SMA ports to the DIP switch 3-14 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 61: Fl If 2Hcs 100
The same applies for the protective caps on the connectors. F-SMA is a standardized fiber optic connection. We recommend the use of easy to operate F-SMA connectors with quick mounting connection from Phoenix Contact. The connectors are secured on the interface module by manually tightening the screw collar.
Page 62 When connecting two HCS interface modules, note the signal direction of the fiber optics. The fiber connection is always from the transmitter to the receiver. Max. 100 m Max. 100 m 68740046 Figure 3-13 HCS connection 3-16 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 63: Fl If 2Fx Sc
Interface modules with older hardware status as the above mentioned can be operated in all modular switches. Older replacement modules can be ordered according to revision. Please contact your Phoenix Contact sales representative. Hot plugging When inserting and removing interface modules, you do not have to switch off the supply voltage.
Page 64 FL IF 2FX SM SC-F FL IF 2FX SM SC-F Figure 3-15 Fiber optic connection between devices The maximum length of the fiber optic cables depends on the interface module/fiber type used. 3-18 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 65: Fl If 2Fx St-D
Interface modules with older hardware status as the above mentioned can be operated in all modular switches. Older replacement modules can be ordered according to revision. Please contact your Phoenix Contact sales representative. Hot plugging When inserting and removing interface modules, you do not have to switch off the supply voltage.
Page 66: Fl If Tx/Pof 10/100
Ports that are not being used are considered cable interrupts. In addition, a POF path to a deactivated termination device is also considered a cable interrupt, as the connected device cannot send a link test pulse because it is switched off. 3-20 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 67: Fl If Tx/Hcs 100
Hot plugging When inserting and removing interface modules, you do not have to switch off the supply voltage. The interface modules are detected automatically and logged to the network management. 3-21 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 68 3.3.7.4 Network connection See "FL IF 2TX VS-RJ ..." on page 3-10 and onwards, and "FL IF 2HCS 100 ..." on page 3-15 and onwards. 3-22 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 69: Fl If Mem 2Tx-D/Fl If Mem 2Tx-D/Mrm
If the user resets the module to the settings default upon delivery, the configuration is also saved on the memory module. See "Default upon delivery/default settings" on page 3-1. 3-23 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 70: Fl If 2Pse-F
If this requirement is not met in the head station or in any extension module, then PoE management is not available in the entire system. The system bus firmware is displayed on the "Device Information/General" web page. 3-24 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 71 (10 Mbps or 100 Mbps data transmission rate and half or full duplex transmission mode) for its RJ45 ports. Automatic port setting eliminates the need for manual intervention by the user. The auto negotiation function can be activated/deactivated via the web interface. 3-25 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 72 PoE supply and a PD (powered device) are connected. The LED flashes if the module is supplied with less than 48 V. Figure 3-17 Connecting the PoE voltage connector 3-26 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 73 Assignment Description Assignment Description RX+/48 V DC Data/PoE + n. c. RX-/48 V DC Data/PoE + TX-/0 V Data/PoE - TX+/0 V Data/PoE - n. c. n. c. n. c. 3-27 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 74 To prevent dirt from entering the connectors, do not remove the dust protection caps until just before connecting the connectors. The same applies for the protective caps on the connectors. 3-28 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 75: Fl If 2Pof Scrj-D
Very detailed information about the SCRJ modules is available in WBM (see Section ""Ports/POF Port Table" menu" on page 4-29), e.g., the port system reserve, alarms or port states are displayed. 3-29 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 76 - the received optical power is below the required minimum value) The actual value of the system reserve can read by the Profinet engeneering and also be used for Profinet alarms. 3-30 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 77: Frame Switching
The aging time is set using the "dot1dTpAgingTime" MIB object (OID 1.3.6.1.2.1.17.4.2). The available setting range is 10 - 825 seconds. For static configuration, an aging time of 300 seconds is recommended. 3-31 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 78: Prioritization
This implies that existing tags must be taken into consideration or that other priority rules must be observed. 3-32 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 79 This function prevents delays in high-priority data transmission, due to large volumes of low- priority data traffic. Low-priority traffic is rejected when the memory or data channel is overloaded. 3-33 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 80 Product designation 3-34 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 81: Configuration And Diagnostics
Factory Manager and displayed in the message window. If you are operating other devices in the same network, messages from these devices may also be displayed. Messages from Phoenix Contact Factory Line components can be easily identified by their MAC address, which starts with 00.A0.45... and is provided on the devices.
Page 82 Specify the desired IP parameters under "TCP/IP" (see also Section "Assigning IP parameters" on page 3-4). Figure 4-2 Input mask for IP parameters Make sure that the assignment of IP parameters via BootP is also activated. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 83 MMS/MCS activates the modified parameters and restores access. To activate the new addresses following a restart, BootP must be activated in the MMS/MCS (on the "IP Configuration" page in WBM). 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 84 In this menu, you can add additional information in the white fields, which will be saved on the MMS/MCS. This information is also available via SNMP and WBM. Diagnostics Figure 4-5 "Diagnostics" menu PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 85 Comprehensive information, e.g., from interface types and states, through transmission data to port levels, is displayed here. All information is automatically created and updated. Trap Targets Figure 4-7 "Trap Targets" menu 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 86 You can monitor the download in the message window (25%, 50%, 75%, 100%). Always wait until all the LEDs light up after approximately two minutes and the device is available again after booting. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 87 In order to enable a firmware update, the firmware image must be located in the "Download" directory of the Factory Manager. An application note for firmware update via TFTP (AH EN TFTP FIRMWARE UPDATE) can be found in the Download Center at www.download.phoenixcontact.com. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 88 The source port is set to "0". Enter the destination port in the relevant multicast group in order to enable multicast packets to be received at the set destination port. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 89 You can jump straight to the web interface from here via a selection menu. The relevant function is described in "Web-based management (WBM)" on page 4-10 and onwards. Configuration Figure 4-12 "Configuration" menu Various options are provided here for saving or loading the configuration. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 90: Web-Based Management (Wbm)
– Device name (assigned by the user) and loading time, to prevent mix-ups. – Navigation tree on the left-hand side. – Information tables, which contain current device information during runtime. 4-10 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 91: Functions/Information In Wbm
Figure 4-13 "Information" web page for the MMS General Instructions Contains a brief description of WBM and a navigation tree (site map), which is linked to every page of WBM. 4-11 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 92 This page describes the meaning of the switchable diagnostic and status indicators, and lists the various display options for the 7-segment display. "Serial Port" menu This page lists the transmission parameters for serial communication. 4-12 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 93 IP parameters. If the BootP reply is disabled, the switch starts after the third request with the last IP parameters saved. If the switch has no saved IP parameters, the switch continues to send BootP requests until it receives a response with a BootP reply. 4-13 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 94 This menu is used to display or modify user-specific device data, e.g., location, device name or function. This device data is also available in SNMP. Figure 4-16 "System Identification" menu 4-14 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 95 The "send traps" function can be globally enabled/disabled here. Figure 4-17 "SNMP Configuration" web page Trap Destination This part of the table is used to view or modify the IP addresses of the two trap receivers. 4-15 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 96 Time synchronization is carried out at fixed synchronization intervals – The local system time of the client is thus constantly corrected – Synchronization is carried out in Universal Time Coordinated (UTC) format 4-16 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 97 NTP server and sent to several clients. Manycast Mode: The client sends a broadcast message to several NTP servers. The client selects the best response from the servers and then operates in unicast mode. 4-17 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 98 NOTE: A voltage failure during a firmware update results in the destruction of the firmware on the MMS/MCS. An update via XMODEM is required, see "Starting with faulty software (firmware)" on page 4-127. 4-18 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 99 The password must be between four and twelve characters long. Please note that the password is always transmitted via the network in unencrypted format. Forgotten your password? Call the Phoenix Contact phone number listed in the Appendix, making sure you have the device serial number and MAC address to hand. "User Interfaces" menu The following actions can be executed here: –...
Page 100 To do so, enter the IP address in dotted notation and select whether read-only or read/write access is to be assigned. As an option, another name can be assigned under "Description". Access to WBM can be configured for a maximum of ten IP addresses. 4-20 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 101 In this menu, select whether the switch is to operate as a PROFINET device. For additional PROFINET device information about operation as a PROFINET device, see Section 9 "Operating as a PROFINET device". Figure 4-23 "Operating Mode" web page 4-21 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 102 WBM can only be called using a valid IP address. Once the switch has been reset to its default settings, it has no valid IP address and the addressing mechanism is set to BootP. 4-22 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 103 Adjust the IP parameters. – Save the configuration ("Save current configuration" function). The duplicated switch can now be operated in the network using the adjusted IP parameters. "Config. Management/Memory Module" menu 4-23 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 104 Figure 4-30 "Configuration comparison" web page If you replace the memory module with another memory module within a few seconds, there is no need to update the configuration comparison manually. 4-24 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 105 "Port/Port Security" web page. Illegal Address Counter Here you can reset the counter that records the unauthorized access attempts to the device. Figure 4-32 "Services" web page 4-25 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 106 This menu provides an overview of the important configuration settings for all ports and also provides the option to set the status, transmission mode, and link monitoring function for all existing ports. 4-26 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 107 "Port Configuration Table" web page "Ports/Port Configuration" menu Offers individual configuration options for each port. Even if the port is switched off, the Link LED for the port remains active. 4-27 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 108 FL SWITCH MM HS Figure 4-35 "Port Configuration" web page 4-28 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 109 This menu provides detailed statistical information about the volume of data for each individual port. On this page, additional counter states can be set to zero for all ports. Figure 4-36 "Port Statistics" web page "Ports/POF Port Table" menu 4-29 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 110 - the received optical power is below the required minimum value) When you click on "details" under the port number, detailed information about the transmit/receive properties of the relevant port are displayed in the window that appears. 4-30 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 111 Configuration and diagnostics Figure 4-38 "Diagnostics" web page 4-31 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 112 MAC address table, another trap is sent. However, if the duration of illegal access is shorter than the aging time, only one trap is sent following the first access attempt. 4-32 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 113 It is not recommended to use this function for backbone or uplink ports, especially if RSTP is activated. Enter the enabled MAC addresses as well as a name under "Allowed MAC Addresses". Figure 4-40 "Port Security" web page 4-33 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 114 No PoE interface module inserted in this slot – The switch does not support PoE interface modules – No PoE devices connected to this port – Port Power over Ethernet Configuration "Ports/Port Power over Ethernet Configuration" menu 4-34 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 115 - No PoE interface module detected at this port - No hardware support due to the system bus - Detected class of a connected termination device (Class 0 to Class 4) - Output voltage and output current 4-35 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 116 FL SWITCH MM HS Figure 4-42 "Port Power over Ethernet Configuration" web page "Diagnostics/Display" menu for the MMS 4-36 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 117 "Display" web page Click on "Online Diagnostics" to display the current view of the diagnostic display in a small browser window. The display is renewed automatically after two seconds. "Diagnostics/Alarm Contact" menu 4-37 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 118 Here, the network capacity of each individual port is displayed as a bargraph. The display is automatically updated according to the refresh interval. Figure 4-45 "Utilization" web page Please note that the % scale is spread according to the capacity utilization. 4-38 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 119 Link down at port xy. – Enabling port xy. – Disabling port xy. – Unpermitted mac address at port xy. – RSTP enabled. – RSTP disabled. – RSTP topology changed. 4-39 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 120 Here, you will find a list of which MAC address has been detected at which switch port and its VLAN ID. If no packets are received at a port for a duration longer than the aging time, the entry is deleted. 4-40 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 121 Section 6 "Media Redundancy Protocol (MRP)". For information about multicast filtering, please refer to Section 7 "Multicast filtering". For information about the VLAN function, please refer to Section 8 "Virtual Local Area Network (VLAN)". 4-41 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 122: Simple Network Management Protocol (Snmp)
ID (object name and parameters) and can be published. If an object is no longer needed, it can be labeled as "expired", but it cannot be reused with other parameters under any circumstances. Phoenix Contact provides notification of ASN1 SNMP objects by publishing their descriptions on the Internet. 4-42...
Page 123 IP address, trap receiver address, port mirroring, etc.), which are not yet saved per- manently. The trap also provides a warning that, if not saved permanently, the modifica- tions will be lost on a reset. 4-43 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 124 MRP manager only: Sent each time the status of the MRP ring port changes. trapManagerConnection 1.3.6.1.4.1.4346.11.11.3.0.99 Description Trap to test the connection between the SNMP agent and the network management sta- tion. 4-44 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 125: Diagram Of Snmp Management
FL IL 24 BK-B FL IL 24 BK-B FL IL 24 BK-B Ord.-No.: 2833000 Ord.-No.: 2833000 Ord.-No.: 2833000 FAIL FAIL FAIL LINK LINK LINK 10/100 10/100 10/100 687407022 Figure 4-48 Diagram of SNMP 4-45 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 126 Not all devices support all object classes. If an unsupported object class is requested, "not supported" is generated. If an attempt is made to modify an unsupported object class, the message "badValue" is generated. 4-46 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 127: Rfc1213 Mib - Mib Ii
This value is located in the SMI enterprises subtree (1.3.6.1.4.1) and describes which type of device is being managed. For example, if the manufacturer "Phoenix Contact GmbH" is assigned subtree 1.3.6.1.4.1.4346, it can then assign its bridge the identifier 1.3.6.1.4.1.4346.2.1.
Page 128 A node, which is a host and provides application services, has the value ) + (2 ) = 72. sysORLastChange 1.3.6.1.2.1.1.8 Syntax TimeTicks Access Read Description Indicates the value of the sysUpTime during the last system modification. 4-48 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 129 The address translation group has mandatory characters for all systems. It contains information about the address assignment. (3) at -- (1) atTable -- (1) atEntry -- (1) atIfIndex -- (2) atPhysAddress -- (3) atNetAddress 4-49 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 130 -- (6) ipRouteMetric4 -- (7) ipRouteNextHop -- (8) ipRouteType -- (9) ipRouteProto -- (10) ipRouteAge -- (11) ipRouteMask -- (12) ipRouteMetric5 -- (13) ipRouteInfo -- (22) ipNetToMediaTable -- (1) ipNetToMediaEntry 4-50 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 131 -- (17) icmpOutTimeExcds -- (18) icmpOutParmProbs -- (19) icmpOutSrcQuenchs -- (20) icmpOutRedirects -- (21) icmpOutEchos -- (22) icmpOutEchoReps -- (23) icmpOutTimestamps -- (24) icmpOutTimestampReps -- (25) icmpOutAddrMasks -- (26) icmpOutAddrMaskReps 4-51 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 132 The User Datagram Protocol group has mandatory characters for all systems that implement UDP. (7) udp -- (1) udpInDatagrams -- (2) udpNoPorts -- (3) udpInErrors -- (4) udpOutDatagrams -- (5) udpTable -- (1) udpEntry -- (1) udpLocalAddress -- (2) udpLocalPort 4-52 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 133 -- (6) snmpInASNParseErrs -- (8) snmpInTooBigs -- (9) snmpInNoSuchNames -- (10) snmpInBadValues -- (11) snmpInReadOnlys -- (12) snmpInGenErrs -- (13) snmpInTotalReqVars -- (14) snmpInTotalSetVars -- (15) snmpInGetRequests -- (16) snmpInGetNexts 4-53 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 134: Rmon Mib (1.3.6.1.2.1.16)
The following groups are supported: – statistics – history – alarm – hosts – hostTopN – matrix – filter – capture and event 4-54 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 135 -- (2) historyControlDataSource -- (3) historyControlBucketsRequested -- (4) historyControlBucketsGranted -- (5) historyControlInterval -- (6) historyControlOwner -- (7) historyControlStatus (2) etherhistoryTable -- (1) etherhistoryEntry -- (1) etherHistoryIndex -- (2) etherHistorySampleIndex -- (3) etherHistoryIntervalStart 4-55 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 136 -- (4) hostControlLastDeleteTime -- (5) hostControlOwner -- (6) hostControlStatus -- (2) hostTable -- (1) hostEntry -- (1) hostAddress -- (2) hostCreationOrder -- (3) hostIndex -- (4) hostInPkts -- (5) hostOutPkts 4-56 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 137 4.3.4.6 matrix (1.3.6.1.2.1.16.6) -- (1) martrixControlTable -- (1) matrixControlEntry -- (1) matrixControlIndex -- (2) matrixControlDataSource -- (3) matrixControlTableSize -- (4) matrixControlLastDeleteTime -- (5) matrixControlOwner -- (6) matrixControlStatus -- (2) matrixSDTable 4-57 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 138 -- (3) channelAcceptTime -- (4) channelDataControl -- (5) channelTurnOnEventIndex -- (6) channelTurnOffEventIndex -- (7) channelEventIndex -- (8) channelEventStatus -- (9) channelMatches -- (10) channelDescription -- (11) channelOwner -- (12) channelStatus 4-58 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 139 -- (3) eventType -- (4) eventCommunity -- (5) eventLastTimeSent -- (6) eventOwner -- (7) eventStatus (2) logTable -- (1) logEntry -- (1) logEventIndex -- (2) logIndex -- (3) logTime -- (4) logDescription 4-59 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 140: Bridge Mib (1.3.6.1.2.1.17)
-- (6) dot1dStpPortDesignatedRoot -- (7) dot1dStpPortDesignatedCost -- (8) dot1dStpPortDesignatedBridge -- (9) dot1dStpPortDesignatedPort -- (10) dot1dStpPortForwardTransitions -- (11) dot1dStpPortPathCost32 -- (16) dot1dStpVersion -- (17) dot1dStpTxHoldCount -- (18) dot1dStpPathCostDefault -- (19) dot1dStpExtPortTable 4-60 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 141 (6) dot1dTpPortOverflowTable -- dot1dTpPortOverflowEntry -- (1) dot1dTpPortInOverflowFrames -- (2) dot1dTpPortOutOverflowFrames -- (3) dot1dTpPortInOverflowDiscards 4.3.5.4 dot1dStatic (1.3.6.1.2.1.17.5) -- (1) dot1dStaticTable -- (1) dot1dStaticEntry -- (1) dot1dStaticAddress -- (2) dot1dStaticReceivePort -- (3) dot1dStaticAllowedToGoTo 4-61 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 142: Pbridgemib (1.3.6.1.2.1.17.6)
-- (3) dot1dPortGmrpLastPduOrigin 4.3.6.2 pBridgeConformance (1.3.6.1.2.1.17.6.2) -- (1) pBridgeGroups -- (1) pBridgeExtCapGroup -- (2) pBridgeDeviceGmrpGroup -- (3) pBridgeDevicePriorityGroup -- (4) pBridgeDefaultPriorityGroup -- (5) pBridgeRegentPriorityGroup -- (6) pBridgePriorityGroup -- (7) pBridgeAccessPriorityGroup 4-62 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 143: Qbridgemib (1.3.6.1.2.1.17.7)
-- (1) dot1qForwardUnregisteredPorts -- (2) dot1qForwardUnregisteredStaticPorts -- (3) dot1qForwardUnregisteredForbiddenPorts -- (3) dot1qStatic -- (1) dot1qStaticUnicastTable -- (1) dot1qStaticUnicastEntry -- (1) dot1qStaticUnicastAddress -- (2) dot1qStaticUnicastReceivePort -- (3) dot1qStaticUnicastAllowedToGoTo -- (4) dot1qStaticUnicastStatus 4-63 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 144 -- (5) dot1qTpVLANPortOutOverflowFrames -- (6) dot1qTpVLANPortInOverflowDiscards -- (7) dot1qPortVLANHCStatisticsTable -- (1) dot1qPortVLANHCStatisticsEntry -- (1) dot1qPortVLANHCInFrames -- (2) dot1qPortVLANHCOutFrames -- (3) dot1qPortVLANHCIn Discards -- (8) dot1qLearningConstraintsTable -- (1) dot1qLearningConstraintsEntry -- (1) dot1qConstraintVLAN 4-64 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 145: Rstp Mib (1.3.6.1.2.1.17.11)
-- (7) dot1dTpSdbGroup -- (8) dot1dTpGroup -- (9) dot1dStaticGroup -- (10) dot1dNotificationGroup -- (2) dot1dCompliances -- (1) BridgeCompliances1493 -- (2) BridgeCompliances4188 4.3.8 rstp MIB (1.3.6.1.2.1.17.11) 4.3.8.1 rstp Conformance (1.3.6.1.2.1.17.11.1) rstp Groups (1.3.6.1.2.1.17.11.1.1) 4-65 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 146 FL SWITCH MM HS -- (1) rstpBridgeGroups -- (2) rstpDefaultPathCostGroup -- (3) rstpPortGroup rstp Compliance Groups (1.3.6.1.2.1.17.11.1.2) -- (1) rstpCompliance 4-66 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 147: Ianaiftype Mib (1.3.6.1.2.1.30)
-- (3) ifTestTable -- (1) ifTestEntry -- (1) ifTestID -- (2) ifTestStatus -- (3) ifTestType -- (4) ifTestResult -- (5) ifTestCode -- (6) ifTestOwner -- (4) ifRcvAddressTable -- (1) ifRcvAddressEntry 4-67 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 148 -- (4) etherStatsBaseGroup -- (5) etherStatsLowSpeedGroup -- (6) etherStatsHighSpeedGroup -- (7) etherDuplexGroup -- (8) etherControlGroup -- (9) etherControlPauseGroup -- (1) etherCompliances -- (1) etherCompliances -- (2) ether100MbsCompliance -- (3) dot3Compliance 4-68 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 149 -- (10) lldpRemSysDesc -- (11) lldpRemSysCapSupported -- (12) lldpRemSysCapEnabled -- (2) lldpRemManAddrTable -- (1) lldpRemAddrSubSubtype -- (2) lldpRemManAddr -- (3) lldpRemManAddrIfSubtype -- (4) lldpRemManAddrIfId -- (5) lldpRemManAddrOID -- (5) lldpConformance 4-69 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 150: Pnoredundancy Mib 1.3.6.1.4.1.24686
-- (7) pnoMRPDomainRingPort1 -- (8) pnoMRPDomainRingPort1State -- (9) pnoMRPDomainRingPort2 -- (10)pnoMRPDomainRingPort2State -- (11) pnoMRPDomainState -- (12) pnoMRPDomainError -- (13) pnoMRPDomainRingOpenCount -- (14) pnoMRPDomainLastRingOpenChange -- (15) pnoMRPDomainRoundTripDelayMax -- (16) pnoMRPDomainRoundTripDelayMin -- (17) pnoMRPDomainResetRoundTripDelays 4-70 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 151: Private Mibs
The aging time (default: 40 seconds) is not set using the private MIBs, instead it is set using the "dot1dTpAgingTime" MIB object (OID 1.3.6.1.2.1.17.4.2). The available setting range is 10 - 825 seconds. MIB tree The private MIB from Phoenix Contact is integrated in the MIB tree as follows (see red arrow). Figure 4-50 MIB tree 4.3.12.1...
Page 152 Contains the manufacturer's name: Phoenix Contact GmbH & Co. KG. pxcBasicDescr 1.3.6.1.4.1.4346.2.1.2 Syntax Display string Access Read Description Contains the manufacturer's name and address: Phoenix Contact GmbH & Co. KG P.O. Box 1341 D-32819 Blomberg. pxcBasicURL 1.3.6.1.4.1.4346.2.1.3 Syntax Display string Access Read Description Contains the manufacturer's web address: http://www.phoenixcontact.com.
Page 153 Generates a table with descriptions for components in the "Factory Line" product group, which can be managed by this management unit. flComponentsIndex 1.3.6.1.4.1.4346.11.1.2.1.1.1 Syntax Integer32 (1 - 1024) Access Read Description Contains the product index for the component. flComponentsName 1.3.6.1.4.1.4346.11.1.2.1.1.2 4-73 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 154 Read and write Description Contains the device name (corresponds to "sysName" from MIB2). flWorkBasicDescr 1.3.6.1.4.1.4346.11.11.1.2 Syntax Display string Access Read and write Description Contains a brief description (corresponds to "sysDescr" from MIB2). 4-74 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 155 Octet string (4) Access Read Description Contains the version number for the system bus. flWorkBasicCompMaxCapacity 1.3.6.1.4.1.4346.11.11.1.11 Syntax Integer 32 Access Read Description Contains the maximum number of interfaces that can be connected. 4-75 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 156 Syntax Display string Access Read Description Contains the IP address of the switch. flWorkComponentsDevSign 1.3.6.1.4.1.4346.11.11.2.1.1.4 Syntax Integer (0 - 24) Access Read Description Contains the designation of the interface module. 4-76 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 157 Sent each time the redundant power supply fails. trapSecurityPort 1.3.6.1.4.1.4346.11.11.3.0.5 Description Sent each time a disabled MAC address accesses a port. trapRstpRingFailure 1.3.6.1.4.1.4346.11.11.3.0.6 Description Sent in the event of a link interrupt in the redundant RSTP ring. 4-77 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 158 Contains the current IP address of the MMS. Modifications only take effect once the "fl- WorkNetIfParamSave" object has been executed. The "flWorkNetIfParamAssignment" object must be set to static (1), otherwise objects cannot be written. flWorkNetIfParamSubnetmask 1.3.6.1.4.1.4346.11.11.4.1.3 4-78 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 159 Read and write Description Provides the option of saving modified IP parameters or undoing the modifications: Undo modification Activate modification Address settings must be saved permanently using the "flWorkFWCtrlConfSave" object. 4-79 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 160 Contains the number of available ports depending on the configuration of the MMS. flWorkNetPortTable 1.3.6.1.4.1.4346.11.11.4.2.2 flWorkNetPortEntry 1.3.6.1.4.1.4346.11.11.4.2.2.1 Description Generates a table with a detailed description of the port configuration. flWorkNetPortIndex 1.3.6.1.4.1.4346.11.11.4.2.2.1.1 4-80 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 161 1.3.6.1.4.1.4346.11.11.4.2.2.1.6 Syntax Octet string (0 - 16) Access Read and write Description Contains the "name" of the port, e.g., "Robot 1". flWorkNetPortEnable 1.3.6.1.4.1.4346.11.11.4.2.2.1.7 Syntax Integer Access Read and write 4-81 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 162 STP not activated, port is in: Fast forwarding mode STP activated flWorkNetPortIfIndex 1.3.6.1.4.1.4346.11.11.4.2.2.1.11 Syntax Integer32 (0 - 1024) Access Read Description Contains the index of the port according to IEEE 802.3ad. 4-82 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 163 Transmission power unknown Reduced transmission power (switch position "OFF") 2 Normal transmission power (switch position "ON") flWorkNetPortStpMode 1.3.6.1.4.1.4346.11.11.4.2.2.1.18 4-83 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 164 Limitation to Class 1 devices or 90 mA No limitation up to the maximum permissible value (350 mA) The PoE status is unknown and cannot be set flWorkNetPortPoEDeviceClass 1.3.6.1.4.1.4346.11.11.4.2.3.1.4 Syntax Integer (0 - 5) Access Read 4-84 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 165 Read and write Description This object can be used to enable PoE fault monitoring (message via display and alarm contact) for the relevant port: Fault monitoring enabled Fault monitoring disabled 4-85 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 166 Access Read Description This object provides the current receiving power of the transceiver at this port in 0.1 µW in- crements (possible range: 0 W to 0.006553 W). flWorkNetPortPofScrjIfSystemReserve 1.3.6.1.4.1.4346.11.11.4.2.4.1.8 4-86 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 167 Warning message triggered flWorkNetPortPofScrjIfManufacturer 1.3.6.1.4.1.4346.11.11.4.2.4.1.13 Syntax Octet string Access Read Description This object provides the name of the manufacturer of the POF-SCRJ transceiver at this port. flWorkNetPortPofScrjIfManufactOui 1.3.6.1.4.1.4346.11.11.4.2.4.1.14 Syntax Octet string 4-87 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 168 "TX_DISABLE implemented" "TX_FAULT implemented" "RX_LOS implemented" 687409058 flWorkNetPortPofScrjIfSerialNumber 1.3.6.1.4.1.4346.11.11.4.2.4.1.19 Syntax Octet string Access Read Description This object provides the serial number of the POF-SCRJ transceiver at this port. flWorkNetPortPofScrjIfDatecodeAndLot 1.3.6.1.4.1.4346.11.11.4.2.4.1.20 4-88 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 169 1.3.6.1.4.1.4346.11.11.11.1.3 Syntax Octet string (6) Access Read Description Contains the creation date of the firmware version as a string. Example for "21.05.2001": 0x32, 0x31, 0x30, 0x35, 0x30, 0x31. flWorkFWInfoTime 1.3.6.1.4.1.4346.11.11.11.1.4 4-89 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 170 1.3.6.1.4.1.4346.11.11.11.1.5 Syntax Display string (6) Access Read Description Contains the owner of the firmware copyright. Copyright by Phoenix Contact GmbH & Co., 2003. flWorkFWInfoBootVersion 1.3.6.1.4.1.4346.11.11.11.1.6 Syntax Octet string (4) Access Read Description Contains the version of the boot loader as a string. Example for Version "2.65": 0x32, 0x2e, 0x36, 0x35.
Page 171 With write access, a reset can be executed with "2". With read access, the value is always "1". When a reset is triggered, "rb" is indicated in the display. flWorkFWCtrlHttp 1.3.6.1.4.1.4346.11.11.11.2.1.6 4-91 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 172 SNMP agent deactivated SNMP agent activated flWorkFWCtrlOperatingMode 1.3.6.1.4.1.4346.11.11.11.2.1.10 Syntax Integer Access Read and write Description Pre-configuration can be implemented here for "PROFINET" mode. Standard mode (default) PROFINET mode 4-92 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 173 Contains the IP address of the target component, which should receive the traps. flWorkFWCtrlTrapDestCapacityMax 1.3.6.1.4.1.4346.11.11.11.2.2.2 Syntax Integer32 Access Read Description Contains the maximum permissible number of trap receivers. flWorkFWCtrlTrapDestEnable 1.3.6.1.4.1.4346.11.11.11.2.2.3 4-93 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 174 Generates a table with information about the traps. flWorkFWCtrlTrapEnableIndex 1.3.6.1.4.1.4346.11.11.11.2.2.10.1.1 Syntax Integer32 Access Read Description This object identifies the trap using the trap ID. flWorkFWCtrlTrapEnableOid 1.3.6.1.4.1.4346.11.11.11.2.2.10.1.2 Syntax Object identifier Access Read Description Indicates the trap OID. 4-94 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 175 This object identifies the trap using the trap name. flWorkFWCtrlTrapEnableStatus 1.3.6.1.4.1.4346.11.11.11.2.2.10.1.4 Syntax Integer Access Read/write Description This object indicates the transmit status of the trap. While the sending of traps is activated, each trap can be deactivated individually. 4-95 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 176 Here, the number of seconds between two password entries is specified as a period of time. After the time has elapsed, the password must be re-entered, if required. Default Range 30 - 3600 4-96 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 177 Description This object can be used to trigger the firmware update. No firmware update Execute firmware update After a firmware update, a reset is required to activate the new firmware. 4-97 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 178 Configuration saved Saving configuration flWorkFWCtrlConfSave 1.3.6.1.4.1.4346.11.11.11.2.5.2 Syntax Integer Access Read and write Description This object can be used to save the device configuration: Do not save configuration Save configuration 4-98 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 179 This object can be used to set the IP address of the TFTP server. flWorkFWConfigTftpFile 1.3.6.1.4.1.4346.11.11.11.2.5.10.3 Syntax Octet string (0 - 64) Access Read and write Description This object can be used to set the file name for TFTP transmission. 4-99 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 180 Access Read Description This object can be used to request the status of the configuration data transmission: Not started Transmission in progress Transmission successful Connection error Incorrect file/path name Error 4-100 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 181 Here, the configuration comparison between the MMS/MCS and memory module can be requested. Unknown Comparison still running Configuration is the same Configuration is not the same Memory module empty flWorkFWCtrlConfigMemInfo (1.3.6.1.4.1.4346.11.11.11.2.5.11.5) 4-101 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 182 This object can be used to request the set data transmission rate of the serial interface: 2400 baud 9600 baud 19200 baud 38400 baud flWorkFWCtrlSerialDataBits 1.3.6.1.4.1.4346.11.11.11.2.6.2 Syntax Integer Access Read Description Contains the number of data bits in the serial interface: 8 bits 4-102 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 183 1.3.6.1.4.1.4346.11.11.11.2.7.1.1 Syntax Integer Access Read and write Description This object can be used to set the indication of redundant power supply failure via the alarm contact: Monitoring disabled Monitoring enabled 4-103 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 184 1.3.6.1.4.1.4346.11.11.11.2.7.2 Syntax Integer Access Read and write Description This object can be used to set the indication for the configured states via the alarm contact: Monitoring disabled Monitoring enabled 4-104 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 185 Indicates the IP address of the devices that have access rights for this switch. flWorkFWCtrlSecurityAccessDescr 1.3.6.1.4.1.4346.11.11.11.2.8.1.1.3 Syntax Octet string (0 - 32) Access Read and write Description Displays the description of the client that has access rights. flWorkFWCtrlSecurityAccessRight 1.3.6.1.4.1.4346.11.11.11.2.8.1.1.4 4-105 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 186 Displays the index of the entry in the port list. flWorkFWCtrlSecurityPortLastMacAddr 1.3.6.1.4.1.4346.11.11.11.2.8.2.1.1.2 Syntax MAC address Access Read Description Displays the last MAC address that sent frames to this port. flWorkFWCtrlSecurityPortMode 1.3.6.1.4.1.4346.11.11.11.2.8.2.1.1.3 Syntax Integer Access Read and write 4-106 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 187 1.3.6.1.4.1.4346.11.11.11.2.8.2.2.1.1 Syntax Integer32 Access Read Description Displays the port number. flWorkFWCtrlSecurityPortMacAddr 1.3.6.1.4.1.4346.11.11.11.2.8.2.2.1.2 Syntax MAC address Access Read and write Description Displays the authorized MAC addresses for this port. flWorkFWCtrlSecurityPortMacDescr 1.3.6.1.4.1.4346.11.11.11.2.8.2.2.1.3 4-107 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 188 Deletes all counters for unauthorized addresses. During read access (1 - not deleted) is always transmitted. Not deleted Delete flWorkFWCtrlProfinet flWorkFWCtrlProfinetAlarm flWorkFWCtrlProfinetAlarmPortTable flWorkFWCtrlProfinetAlarmPortEntry 1.3.6.1.4.1.4346.11.11.11.2.9.1.1.1 flWorkFWCtrlProfinetAlarmPortIndex 1.3.6.1.4.1.4346.11.11.11.2.9.1.1.1.1 Syntax Integer32 (1 - 1024) 4-108 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 189 In PROFINET mode, the switch can send an alarm if one of the interface modules is re- moved: Do not send alarm Send alarm flWorkFWCtrlMRP flWorkFWCtrlMRPConfig flWorkFWCtrlMRPConfigDomainTable flWorkFWCtrlMRPConfigDomainEntry 1.3.6.1.4.1.4346.11.11.11.2.10.1.1.1 flWorkFWCtrlMRPConfigDomainIdx 4-109 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 190 Integer (0 - 4094) Access Read and write Description The VLAN ID is specified here. flWorkFWCtrlMRPConfigDomainRingPort1 1.3.6.1.4.1.4346.11.11.11.2.10.1.1.1.7 Syntax Integer Access Read and write Description Specifies the first MRP ring port of this switch. 4-110 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 191 1.3.6.1.4.1.4346.11.11.11.2.10.2.1.1.4 Syntax Integer Access Read Description The possible MRP operating modes can be read here: MRP not operating MRP operating as client MRP operating as manager 2 flWorkFWCtrlMRPInfoDomainManagerPriority 1.3.6.1.4.1.4346.11.11.11.2.10.2.1.1.5 4-111 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 192 Blocking Forwarding flWorkFWCtrlMRPInfoDomainState 1.3.6.1.4.1.4346.11.11.11.2.10.2.1.1.11 Syntax Integer Access Read Description Specifies the operational state of this MRP ring. MRP deactivated Client MRP ring closed MRP ring open flWorkFWCtrlMRPInfoDomainError 1.3.6.1.4.1.4346.11.11.11.2.10.1.1.1.12 Syntax Integer 4-112 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 193 Displays the minimum round trip delay time in milliseconds since the device was started. flWorkFWCtrlMRPInfoDeviceBlockingSupport 1.3.6.1.4.1.4346.11.11.11.2.10.2.2 Syntax Integer32 Access Read Description Indicates whether the port supports "Blocking". "Blocking" not supported "Blocking" supported 4-113 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 194 For STP configuration, the Bridge_MIB is used, see page 4-61. flSwitchCtrlMulticast 1.3.6.1.4.1.4346.11.11.15.1.3 Syntax Integer Access Read and write Description Indicates whether the web pages required for multicast operation are displayed. Hide web pages Show web pages 4-114 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 195 Transparent Tagging flSwitchCtrlLldp 1.3.6.1.4.1.4346.11.11.15.1.7 Syntax Integer Access Read and write Description This object can be used to enable/disable the LLDP (Link Layer Discovery Protocol): LLDP deactivated LLDP activated Send Receive 4-115 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 196 This object can be used to enable the switch to delete all entries from its MAC address ta- ble: Do not delete MAC address table Delete MAC address table flSwitchPortMirr 1.3.6.1.4.1.4346.11.11.11.15.2 4-116 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 197 "0" or if they contain the same value (e.g., both set to 2). flSwitchIgmp 1.3.6.1.4.1.4346.11.11.15.3 flSwitchIgmpSnoop 1.3.6.1.4.1.4346.11.11.15.3.1 flSwitchIgmpSnoopEnable 1.3.6.1.4.1.4346.11.11.15.3.1.1 Syntax Integer Access Read and write Description Here, the IGMP snooping function can be activated: Deactivated Activated 4-117 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 198 If this function is activated, the switch only forwards multicast packets if it received mem- bership reports in advance. Activated Deactivated flSwitchForwardUnknownMulticastToQuerier 1.3.6.1.4.1.4346.11.11.15.3.1.5.2 Syntax Integer Access Read and write Description 4-118 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 199 Access Read and write Description This object can be used to enable the switch to delete all entries from its IGMP table: Do not delete IGMP table Delete IGMP table 4-119 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 200 This object specifies the number of the blocked port in this ring. flSwitchRSTPRingRootPort 1.3.6.1.4.1.4346.11.11.15.4.2.1.4 Syntax Integer32 Access Read Description This object specifies the number of the local port (often the root port) in this ring. flSwitchRSTPRingDesPort 1.3.6.1.4.1.4346.11.11.15.4.2.1.5 4-120 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 201 1.3.6.1.4.1.4346.11.11.15.5.2 Syntax IP address Access Read and write Description This object can be used to set the IP address of the DHCP server for the DHCP relay agent (default 0). 4-121 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 202 Access Read/write Description Here, the DHCP relay agent at this port can be activated or deactivated: DHCP relay agent at this port deactivated: DHCP relay agent at this port activated: 4-122 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 203: Management Via Local V.24 (Rs-232) Communication Interface
Connect the PC and the switch using a suitable cable (PRG CAB MINI DIN, Order No. 2730611). Once you have established the connection, select the Ctrl + L key combination on the PC. The switch then requests the screen contents. 4-123 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 204: User Interface Functions
"SAVE" function to save the active configuration settings permanently. 4.4.2.3 Structure of the user interface screens Login screen 6 8 7 4 0 0 1 0 Figure 4-52 User interface login screen 4-124 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 205 This user interface screen can be used to determine the addressing mechanism or to trigger a device restart. All settings are transferred using "APPLY", but are not saved permanently. Use the "SAVE" function to save the active configuration settings permanently. 4-125 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 206 (see Section 3.1.1 on page 3-1). Resetting to the default settings also resets the password to "private". For security reasons, we recommend you enter a new, unique password. 4-126 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 207: Starting With Faulty Software (Firmware)
Scre16en displayed on HyperTerminal when booting If the device firmware is faulty, the following message appears: 6 8 7 4 0 0 2 4 Figure 4-56 Selection menu for faulty firmware 4-127 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 208 The switch is now ready for the new firmware. In HyperTerminal, select "Send File" from the "Transmission" menu. Figure 4-58 Xmodem - Send File option Make sure that the protocol is set to "Xmodem", otherwise the transmission will fail. 4-128 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 209 File transmission may take a few minutes. Do not perform any other actions while the box is open. Once the box has closed, a message appears in HyperTerminal. Enter "c" to continue with the boot process, or trigger a reset using the reset button. 4-129 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 210: Management Via Telnet
– Reset All settings are transferred using "APPLY", but are not saved permanently. Use the "SAVE" function to save the active configuration settings permanently. Structure of the Telnet interface screens 4-130 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 211 As well as displaying the set MAC address, this screen can be used to view or modify the IP parameters. All settings are transferred using "APPLY", but are not saved permanently. Use the "SAVE" function to save the active configuration settings permanently. Reset to default settings 4-131 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 212 IP parameters to the settings default upon delivery (see Section 3.1.1 on page 3-1). Resetting to the default settings also resets the password to "private". For security reasons, we recommend you enter a new, unique password. 4-132 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 213 MODE US1 US2 FAIL Address 00.A0.45.1B.D2.1D 10 11 12 13 14 15 US1 GND US2 GND R1 R2 V.24 ACT 100 FD 68740051 Figure 5-1 Possible tree structure with Spanning Tree 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 214: (Rapid) Spanning Tree
When activating "(Rapid) Spanning Tree/MRP" under "User Interfaces", the redundancy mechanism is not activated. In the WBM menu, the "(Rapid) Spanning Tree/MRP" page - under which the function can be configured and activated - is enabled. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 215 The previously created configuration is not lost, but the web pages for (R)STP are hidden if "Redundancy" is set to "Disable" on the "User Interfaces" web page following MRP configuration. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 216 The value will be rounded automatically to the next multiple of 4096. Once you have confirmed the modification by entering your password, the initialization mechanism is started. Redundant connections can now be created. Figure 5-4 (R)STP Configuration PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 217 STP mode to change from "Discarding" to "Listening" and from "Listening" to "Learning" (2 x forward delay). The "Maximum Age of STP", "Hello Time", and "Forward Delay" parameters are optimized by default upon delivery. They should not be modified. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 218 This port does not take part in data transmission of the active topology, however, MAC addresses are learned. – Blocking/Discarding The port has a link, but has not been set to the "Discarding" state by RSTP. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 219 The switch with the lowest numerical switch ID becomes the root. It is recommended that the root port and alternate port are specified using the priority. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 220 Indicates whether this port is operated as an edge port. An edge port is a port at which only termination devices should be operated. The redundant network does not have to be reconfigured if the link status changes at an edge port. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 221 If a port receives STP BPDUs, it switches automatically to STP mode. Automatic switching to (R)STP mode does not take place. Switching to (R)STP mode can only be forced via "ForceRSTP" or via a restart. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 222 For RSTP fast ring detection, do not use devices that do not support this function. – Enable RSTP fast ring detection on all devices. – All data paths must be in full duplex mode. 5-10 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 223: Connection Failure - Example
If a cable interrupt occurs at the point indicated by the star, this produces the following entries on the "RSTP Fast Ring Detection" web page: Switch 3 - Failed on Port A Switch 4 - Broken 5-11 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 224 10 11 12 13 14 15 ACT 100 FD US1 GND US2 GND R1 R2 V.24 Reset Address 00A0451BDD Fail US1 GND V.24 687407052 Figure 5-11 Connection failure with RSTP ring detection 5-12 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 225: Mixed Operation Of Rstp And Stp
A port can have the following states: – Learning – Forwarding – Blocking/Discarding – Disabled (link down or disconnected by the user) The current port states are shown in the web interface. 5-13 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 226 Termination devices connected to this port can be accessed immediately. "Port STP Status" in WBM on the "STP Port Configuration" page must be set to "Disabled" to activate fast forwarding. 5-14 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 227 (RS-232) communication interface" on page 4-123 or Section "Management via Telnet" on page 4-130. Set "Spanning Tree, Enabled" on the following page in the "Redundancy" field and select "Save". Figure 5-13 Activating Rapid Spanning Tree 5-15 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 228: Configuration Notes For Rapid Spanning Tree
Furthermore, a data path can also consist of a connection of a Spanning Tree switch to: – A termination device. – A network segment in which no loops may occur, which consists of several infrastructure components (hubs or switches) without Spanning Tree support. 5-16 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 229 The three rings do not affect one another, a modification to the topology in one ring does not affect the topology of the other two rings. 5-17 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 230 – It is recommended that large tree support is not activated in networks with less than seven switches along the relevant path. 5-18 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 231 Ord. No. 28 32 70 0 MODE US1 US2 FAIL Address 10 11 12 13 14 15 US1 GND US2 GND R1 R2 V.24 ACT 100 FD Figure 5-15 Redundant coupling of network segments 5-19 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 232 The switch that connects a specific LAN segment (with the lowest path costs) to the root switch. Root port The other switches set the port with the lowest path costs (or with the highest total transmission speed) as the root switch in the forwarding state. 5-20 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 233 For every network the switch with the most favorable root connection is selected, this switch is called the designated switch. The root switch is the designated switch for all directly connected networks. 5-21 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 234 The port costs can be set according to two different standards, 802.1D (STP) or 801.1W (RSTP). If, in addition to Phoenix Contact devices, devices from other manufacturers are also used, it is recommended that the port costs are set according to a uniform standard.
Page 235 Tree segment. Set the highest priority (lowest value) in the "Priority" field on the "STP Bridge Configuration" page in WBM for the switch selected as the root switch. Make sure that all 5-23 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 236 Additional infrastructure components are connected to the port, forming a Spanning Tree of their own. No additional redundant connections to this network segment are permitted. 5-24 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 237 LNK MODE LNK MODE LNK MODE ACT 100 MODE FL SWITCH MM HS Ord. No. 28 32 32 6 Reset Address Fail Figure 5-19 Example 1 for the "relevant path" 5-25 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 238 An alternate port is a path to the root, which, however, did not become a root port. I.e., this port is not part of the active topology. 5-26 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 239: Media Redundancy Protocol (Mrp)
If a manager function module is removed while the MRP manager is active, the mode remains active until the device is restarted or is switched to another mode (MRP client, disabled). 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 240: Network Examples
Make sure that the topology used does not contain an invalid mixture of RSTP and MRP, e.g., where two of the devices used are also redundantly coupled using an additional RSTP connection. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 241 LNK MODE LNK MODE ACT 100 687410064 MODE FL SWITCH MM HS Ord. No. 28 32 32 6 Reset 00A0451BDD Address Fail US1 GND V.24 Impermissible connection Figure 6-3 Impermissible example 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 242: Enabling Web Pages For Using Mrp In Wbm
Topology modification counter – Time of last topology modification – Ring port numbers and status of the ports (Forwarding or Blocking) Figure 6-4 "MRP General" web page for an MRP manager PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 243: Mrp Configuration
WBM under "Switch/VLAN/Static VLAN", can be used. The tag is only added to the MRP packet if the port to which the MRP packet is sent is operating in tagging mode. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 244 FL SWITCH MM HS PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 245: Multicast Filtering
– Possible redundant paths due to Spanning Tree must be taken into account during port assignment. – For network modifications, during servicing or expansion, the multicast data paths must be restored. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 246: Current Multicast Groups" Web Page
IP groups to the same MAC group. Avoid the use of IP groups: – That do not differ in the first and second byte from the right – That differ by 128 in the third byte from the right PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 247 After entering a new group in the "Multicast Group Address" field, add the ports of the group members by selecting the corresponding checkboxes. Confirm by entering your password and clicking on "Apply". 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 248: Procedure For Creating A Multicast Group
Create a group for every multicast application or for the multicast address used, and for each switch add the ports to which a device of the appropriate group is directly connected or via which the device can be accessed. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 249 Port 3 Port 4 Port 5 Port 6 Port 7 Port 8 Please note that possible redundant paths must be taken into consideration when using Rapid Spanning Tree for multicast group creation. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 250 US1 GND V.24 Receiver Receiver Receiver Receiver Receiver Receiver 68741045 Figure 7-3 Configuration example Possible redundant paths must be taken into consideration when using Rapid Spanning Tree for multicast group creation. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 251: Dynamic Multicast Groups
The IP stack of multicast compatible termination devices with applications linked to a multicast address automatically sends the relevant membership reports. IGMP snooping operates independently of the Internet Group Management Protocol (IGMP). 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 252: General Multicast Configuration" Web Page
IGMP snoop aging is the time period during which membership reports are expected. If this time passes without new membership reports being received, the associated port is deleted from the groups. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 253: Multicast Source Detection
If the switch receives an IGMP query packet, it will save the port via which it received the packet for the IGMP query time and add it to each dynamic multicast group. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 254 For example, if no more membership reports are received, if the associated port is deleted from the groups or if no port, other than the ports receiving queries, is a member of the group, this group is deleted. 7-10 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 255: Basics
In the WBM menu, the "VLAN" page - under which the function can be configured and activated - is enabled. When deactivating the VLAN configuration pages under "User Interfaces", the VLAN mechanism is not deactivated. The saved VLAN configuration is retained. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 256: Management Vlan Id
VLAN. Set the corresponding port VLAN ID, if necessary. Set the desired VLAN ID as the management VLAN. Connect your PC to the switch via port B and save the configuration. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 257: General Vlan Configuration
GVRP is used to dynamically create VLANs across several switches. If GVRP is set to "Disable", the switch is transparent for GVRP BPDUs (GVRP data packets). 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 258: Current Vlans
"The switch supports only 32 VLANs! Further VLANs will be refused!" VLAN 1 is always created statically and all ports are added to it as untagged members. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 259: Static Vlans
Ports with "Forbidden" status do not belong to the selected VLAN and cannot be added dynamically to this VLAN via GVRP. - = None Ports with "None" status are not integrated into the VLAN. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 260: Vlan Port Configuration
"VLAN Port Configuration" web page, where the settings can be modified. This table can be used to assign incoming packets to the created VLANs if the packets reached the port without VLAN tag. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 261: Creating Static Vlans
The type of termination device must be taken into consideration: VLAN-compatible (processes tags) or not VLAN-compatible (does not process tags). In the example, two types of termination device are take into consideration. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 262 If additional infrastructure components are located between switch 1 and switch 2, there are two options to ensure communication between the termination devices: PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 263: Dynamic Configuration
This ensures that for every possible tree structure that can be generated by (R)STP, every VLAN can be accessed by every switch. A typical configuration is illustrated in the following diagram: 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 264 ACT 100 FD Address 00A0451BDD Fail US1 GND V.24 Manual configuration: VLAN2, port member: Tagged VLAN2, port member: Untagged Port VID: VLAN2 Figure 8-6 Typical configuration for VLAN and (R)STP 8-10 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 265 Waiting for a valid IP configuration via DCP is indicated by the switch with "dP" in the display and by the flashing of the LED for the currently active mode. The switch cannot be accessed via other network services such as ping at this time. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 266: Switch As A Profinet Io Device
The switch can be operated as a PROFINET IO device if it is integrated under a control sys- tem in the bus configuration in the engineering tool. A GSD file and an FDCML file for inte- gration can be downloaded at www.download.phoenixcontact.com. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 267 No interface modules configured -> IP address assignment only by the control system – All interface modules configured correctly -> IP address assignment by the control system, transmission of process data and alarms from configured slots 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 268: Configuring The Switch As A Profinet Io Device
Set by the user: Station name IP address Subnet mask Recommended value 687407055 Figure 9-3 Device details with modified settings The PROFINET variables can then be created and used in the control program. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 269: Configuration Via The Engineering Tool
As soon as a communication relationship has been successfully established between the switch and the control system, the switch starts its management interface. The 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 270: Profinet Alarms
Link monitoring (slot alarm for the relevant channel/port) – POF-SCRJ diagnostic alarm for reaching and exceeding the warning threshold (slot alarm for the relevant channel/port) All the alarms are deactivated when the device is started. PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 271: Alarms In Wbm
Byte 05 - Ethernet port 17 - 24 Management output byte Bytes 01/02 - Control word Port input byte Byte 01 - Port 1 Byte 02 - Port 2 Byte 03 - Port 3 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 272: Control Word
- Far End Fault status: (0 - No error; 1 - Error) - Port enable status: (0 - Enabled; 1 - Disabled) - Link mode: (0 - Forwarding; 1 - Blocking) Meaning Link mode Port Far End Link status enable Fault PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 273: Pdev - Function Description
(the FDCML file does not support PDEV at present). These files are used to describe the device function and can be imported into an engineering tool. The PDEV function is only available in firmware Version 4.70 or later. 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 274: Conformance According To Profinet Conformance Class B
Only LLDP is mandatory. LLDP including LLDP MIB is LLDP including LLDP MIB and LLDP MIB and LLDP EXT MIB mandatory LLDP EXT MIB is mandatory are optional. SNMP Optional Optional Optional 9-10 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 275: Basics
If several neighbors are displayed on one switch port, then there must be at least another switch/hub installed between this switch and the neighbor indicated, which LLDP does not support or has not activated. 10-1 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 276 The "Message Time To Live" is determined by multiplying the "Message Transmit Interval" with the "Message Transmit Hold Multiplier". The "Message Transmit Hold Multiplier" can only be modified via SNMP. The default value is four. 10-2 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 277 Indicates the port number of the neighboring switch that is used to connect the neighbor to the local switch. If the neighbor is identified as a Phoenix Contact switch, the port number is implemented as a link to the "Port Configuration" web page for the neighbor.
Page 278: Representation Of The Topology In An Engineering Tool
FL SWITCH MM HS 10.2 Representation of the topology in an engineering tool The LLDP information can be represented as such or similarly in engineering tools. Figure 10-3 Representation of the topology 10-4 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 279: Activating The Dhcp Relay Agent
Enable the web page via "General Configuration/User Interfaces". Activate the agent with "Enable", specify at least the IP address of the server. The MMS/MCS management does not start the relay agent while the switch is operating as a DHCP client. 11-1 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 280 No DHCP option 82 packets are sent by the deactivated ports. Figure 11-1 "Relay Agent" web page The "DHCP Relay Agent" function and IP address assignment via DHCP cannot be activated at the same time. 11-2 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 281: Technical Data
64-byte packet size, half duplex At 100 Mbps: 148,800 pps Supported MIBs MIB II, RMON MIB, bridge MIB, If MIB, Etherlike MIB, and Phoenix Contact private SNMP objects Housing dimensions (width x height x depth) in mm Head station 214 x 95 x 107 (depth from top edge of DIN rail)
Page 282 Connection of the PoE supply Via COMBICON; conductor cross-section = 2.5 mm , maximum Nominal value 48 V DC (SELV/PELV) Permissible voltage ranges 45.5 V DC to 53 V DC 12-2 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 283 F-SMA female connectors on the interface module Data transmission rate 10/100 Mbps Wavelength 650 nm Minimum cable length Transmission length including 3 dB system reserve 50 m polymer fiber with F-K 980/1000 230 dB/km 12-3 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 284 36,000 m with glass fiber with F-G 9/125 0.36 dB/km 32,000 m with glass fiber with F-G 9/125 0.4 dB/km 26,000 m with glass fiber with F-G 9/125 0.5 dB/km 12-4 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 285: Technical Data (Mcs)
64-byte packet size, half duplex At 100 Mbps: 148,800 pps Supported MIBs MIB II, RMON MIB, bridge MIB, If MIB, Etherlike MIB, and Phoenix Contact private SNMP objects Housing dimensions (width x height x depth) in mm 214 x 95 x 71 (depth from top edge of DIN rail) Permissible operating temperature 0°C to +55°C...
Page 286 Maximum overrange -14 dBm (dynamic)/-11 dBm (static) Transmission speed 100 Mbps Floating alarm contact Voltage 24 V DC Current carrying capacity 100 mA, maximum Cable lengths Twisted pair 100 m 12-6 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 287: Revision History Of This Manual
Version 11: Technical modifications Version 12: Functions and new features of firmware Version 4.70 extended and combined with the MCS manual Version 13: Hint for IGMP Snooping and new fiber optics added 12-7 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 288: Typical Current Consumption (Mms) - (Example)
350 mA [1] + (2 x 250 mA [2]) + (5 x 200 mA [5]) + (4 x 100 mA [4]) + (2 x 0 mA [3]) + 60 mA [6] = 2310 mA 12-8 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
Page 289 Interface modules with older hardware status as the above mentioned can be operated in all modular switches. Older replacement modules can be ordered according to revision. Please contact your Phoenix Contact sales representative. Products Description Order designation Order No.
Page 290 FL PLUG RJ45 GN/2 2744571 Assembly tool for RJ45 connector FL CRIMPTOOL 2744869 Factory Manager startup/diagnostic software FL SWT 2831044 Network monitoring with HMI/SCADA systems FL SNMP OPC SERVER 2832166 12-10 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 291 HCS-GI cable for inner laying, duplex 200/230 µm, with an increased FL FOC PN-C-HCS-GI 2313504 bandwidth ideal for Ethernet applications, rugged PUR outer sheath , 8 mm outside diameter, color green. 12-11 6874_en_16 PHOENIX CONTACT RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
Page 292 Product designation HOTLINE: Should problems occur that cannot be resolved with the help of this documentation, please contact our hotline: +49 - 52 81 - 94 62 88 8 factoryline-service@phoenixcontact.com 12-12 PHOENIX CONTACT 6874_en_16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-14178-Phoenix-Contact-2832357-FL-IF-2TX-VS-RJ-D-Media-Module-for-Modular-Sw...
