Exploded View – Body Assembly - Flowserve Valtek Mark One Installation, Operation & Maintenance Instructions Manual

Packing Box Nut
(Item No. 117)
Gland Flange
(Item No. 80)
Upper Guide
(Item No. 87)
Stem Guide Liner
(Item No. 86)
Anti-Extrusion Spacer
(Item No. 93)
Female Ring
Upper Packing
V-Ring
(Item No. 88)
Male Ring
Packing Spacer
(Item No. 94-99)
Female Ring
Lower Packing
Male Ring
(Item No. 88)
Anti-Extrusion Spacer
(Item No. 93)
Stem Guide Liner
(Item No. 82)
Lower Guide
(Item No. 83)
Bonnet Flange Nut
(Item No. 114)
Bonnet Flange Stud
(Item No. 108)
Bonnet Flange
(Item No. 70)
End Flange
(Item No. 10)
Half Ring
(Item No. 11)
NOTE: Item numbers correspond directly to the valve's bill of material. Refer to it for specific part numbers.
1-10
Clamp Nut
(Item No. 118)
Packing Box
Bolt
(Item No. 109)

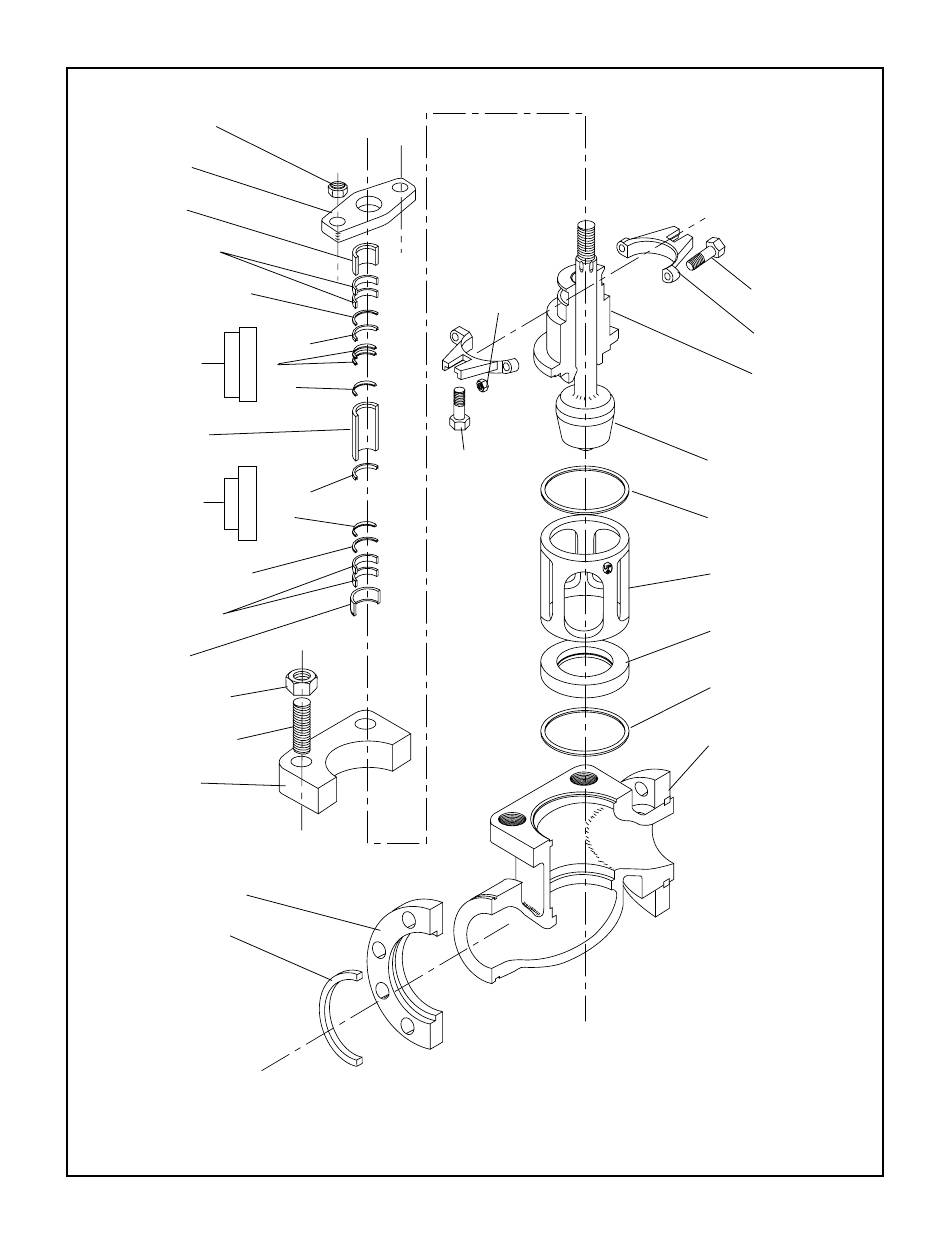

Figure 4: Exploded View – Body Assembly
Flowserve Corporation, Valtek Control Products, Tel. USA 801 489 8611
Clamp Bolt
(Item No. 107)
Yoke Clamp
(Item No. 76)
Bonnet
(Item No. 40)
Plug
(Item No. 50)
Bonnet Gasket
(Item No. 58)
Seat Retainer
(Item No. 30)
Seat Ring
(Item No. 83)
Seat Ring Gasket
(Item No. 55)
Body
(Item No. 1)
E0169
