8
Valtek Mark One and Mark Two Control Valves FCD VLENIM0001-02-A4 - 05/16
Gland Flange
(Item #80 )
Bonnet Flange
(Item #70)
Upper Packing
(Item #88)
Lower Packing
(Item #88)
Yoke Half Clamps
& Yoke Clamp Bolts
(Items #76, 107,118)
Bonnet Gasket
(Item #58)
Seat Retainer
(Item #30)
Seat Gasket
(Item #55)

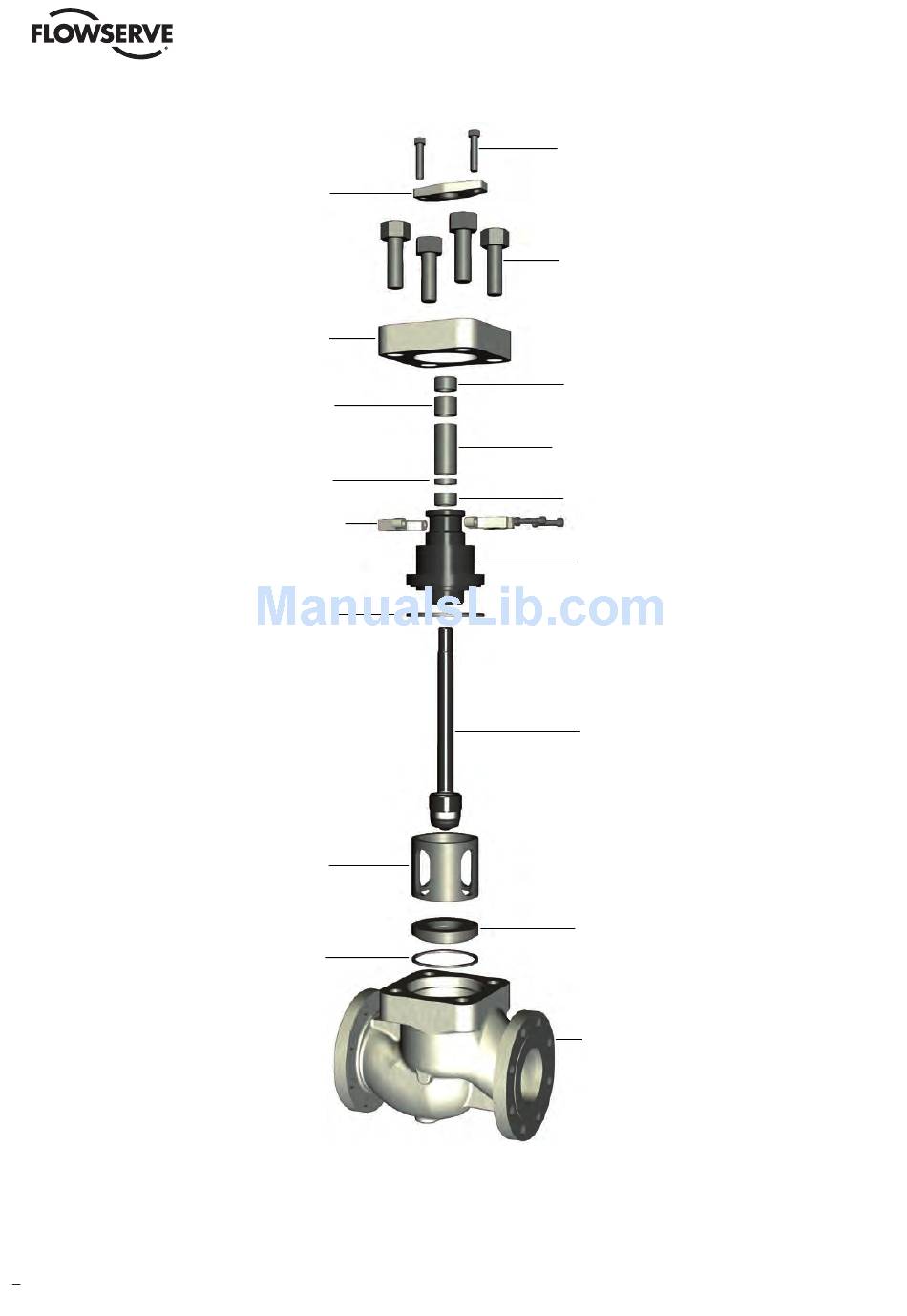

Figure 3: Exploded View Mark One Body Assembly

Gland Bolting
(Items #109, 117)
Body Bolting
(Items #108, 114)
Upper Guide
(Item #87)
Packing Spacers
(Item #94-99)
Lower Guide
(Item #83)
Bonnet
(Item #40)
Plug
(Item #50)
Seat Ring
(Item #20)
Body
(Item #1)
*Optional angle
body
