Summary of Contents for Medeli M311

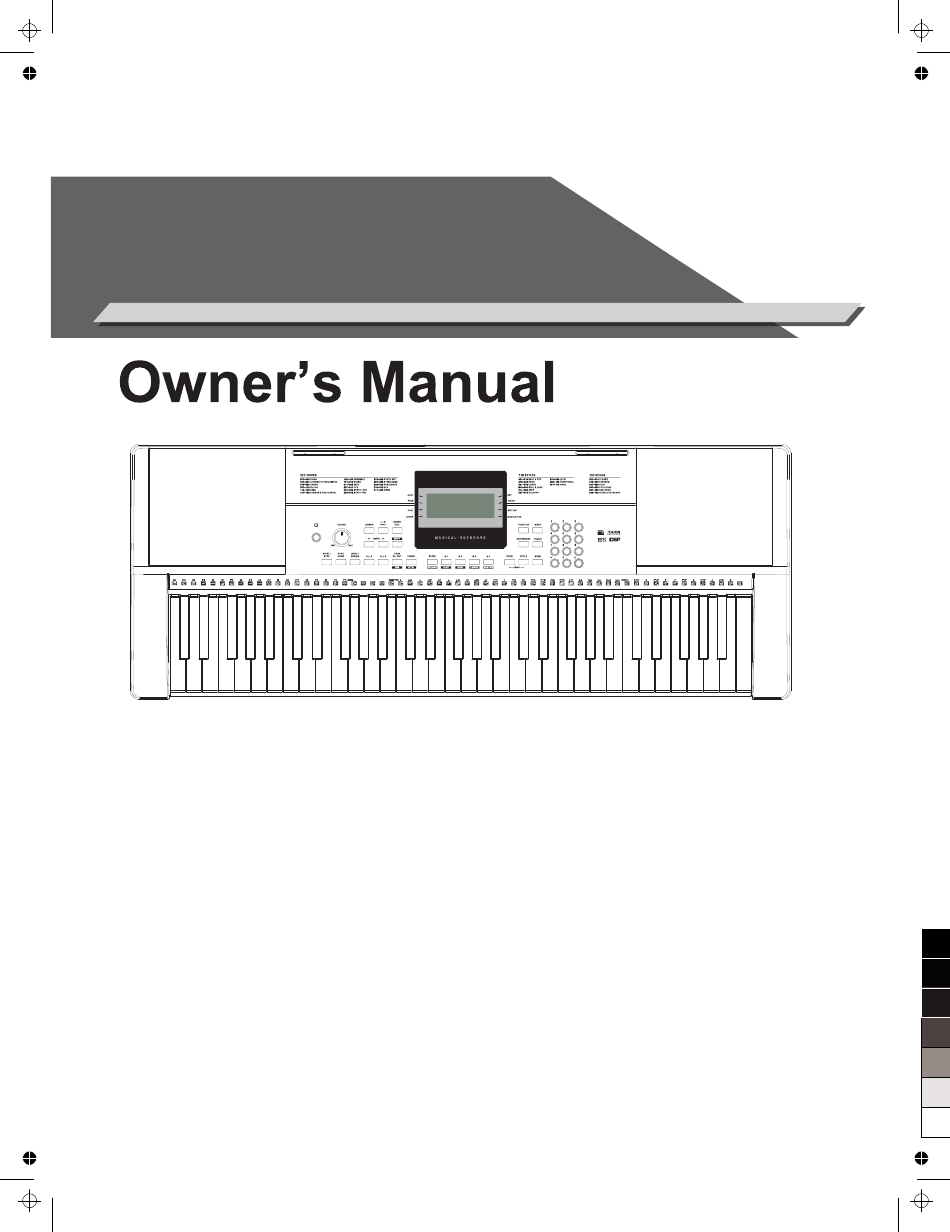

- Page 1 ELECTRONIC KEYBOARD M U S I C A L K E Y B O A R D AW_M311_Manual_G05_160201 2016 10:37:10...
- Page 2 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of PLEASE READ CAREFULLY BEFORE PROCEEDING the FCC Rules. These limits are designed to provide reasonable protection Please keep this manual in a safe place for future reference.
-
Page 3: Table Of Contents
Contents Panel & Display Description Other Function Front Panel..............4 Function Menu............13 Rear Panel..............4 Mixer................14 Display.................5 Setup Memory Power Supply...............6 Memory..............15 Connections Chord Dictionary.............15 Connecting a Footswitch..........7 Connecting a pair of Headphones.......7 Songs Listening to the Songs..........16 Connecting an Audio Equipment.........7 Connecting a Computer..........7 Lesson Mode.............16 Playing the Demos............8... -
Page 4: Panel & Display Description
Panel & Display Description Front Panel M U S I C A L K E Y B O A R D 1. POWER ON/OFF When the [SHIFT] button is released When the [SHIFT] button is pressed Turn the power on or off. 13. -
Page 5: Display
Panel & Display Description M U S I C A L K E Y B O A R D 20. FUNCTION 24. VOICE Enter the Function Menu Enter the Voice Mode. 21. MIXER 25. STYLE Enter the Mixer Menu. Enter the Style Mode. 22. -
Page 6: Setup
Setup This section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on. Power Supply You can power the unit either by batteries or by power adaptor. Follow the instructions described below. -
Page 7: Connections
Connections Connecting a Footswitch An optional footswitch can be plugged into the sustain jack and be used to switch sustain on or off. Simply by pressing a sustain footswitch, you will have a natural sustain as you play. Connecting a pair of Headphones A standard pair of stereo headphones can be connected to the PHONES jack for private practice or late-night playing. -
Page 8: Playing The Demos
Playing the Demos The instrument features 100 demo songs. Press the [STYLE] and [VOICE] buttons simultaneously to start playing the demo Select a demo song. Use the data dial, the number keys, the [+] button or the [-] button to select the desired demo song. -
Page 9: Lower
Playing the Voices Selecting a voice for VOICE 2. Use the data dial, the number keys, the [+] button or the [-] button select the desired dual voice. DUAL Play the voices. You will hear two different voices layered together, just like two instruments playing at the same time. -
Page 10: Auto Accompaniment
Auto Accompaniment The instrument features 110 styles of different musical genres. Try selecting some of the different styles (Refer to Style List) and play with the auto accompaniment. Play Auto Accompaniment Press the [STYLE] button. Enter the STYLE mode LCD shows “STYLE” the style number. -
Page 11: Sync Start
Auto Accompaniment Sync Start While the style stops , press the [SYNC] button. The black dots below the tempo and the metronome flash, indicating the style is ready to play. If the Chord Mode is OFF, pressing any key will automatically begins to play the style (rhythm track). -
Page 12: Auto Bass Chord
Auto Accompaniment Auto Bass Chord A.B.C. When the [CHORD] is switched on, the chords you played in the specified Chord section of the keyboard will be automatically detected and will be used to control the playback of the selected style. Split Point Press the accompaniment keys, the corresponding chord will display on LCD. -
Page 13: Other Function
Other Function Function Menu Press [FUNCTION] button to enter the function menu . The default option of the menu is “Transpose”. When you enter the menu next time, it will display the same option of you last operation . Press [FUNCTION] button repeatedly to select an option . -
Page 14: Mixer
Other Function TUNE Press the [FUNCTION] button to select the Tune menu. The LCD displays the tune value. Use [+]/[-] to change the tune value. Its range is from –50 to +50 cents. Press [+] and [-] buttons together will set the TUNE to its default value. Note: The tune setting will apply... -
Page 15: Memory
Memory There are 4 memories (M1-M4). While holding the [STORE] button, press one of the MEMORY buttons: [M1] - [M4] to register the panel settings. The new settings will replace the previous memory data. LCD show “Mem Stor”. The settings include voice number, style number, tempo, beat value, sustain effect, etc. -
Page 16: Songs
Song The instrument features 100 songs (Refer to Song List). Each song can be practiced in LESSON mode. Listening to the Songs Press the [SONG] button to enter the song mode. It will play all songs circularly. Press the [SONG] button again, it will stop the song and exit the song mode. -
Page 17: Song Recording
Song Recording You can record your performance (up to 350 notes), and the accompaniment. Holding down the [SHIFT] button and press the [RECORD] button the record flag appears on the LCD, the beat flashes. Play the notes you want to record or press the [START/STOP] button to start recording. -
Page 18: Midi Functions
MIDI Functions By using the MIDI functions you can expand your musical possibilities. This section explains what MIDI is, and what it can do, as well as how you can use MIDI on your instrument. What's MIDI? MIDI (short for Musical Instrument Digital Interface) allows a wide variety of electronic musical instruments, computers and other related devices to connect and communicate with one another. -
Page 19: Trouble Shooting
Trouble Shooting Problem Possible Cause and Solution The speakers produce a “pop” sound whenever This is normal and is no cause for alarm. the power is turned ON or OFF. No sound results when the keyboard is played. Make sure the master volume is set at appropriate levels. When using a mobile phone, noise is produced. -
Page 20: Voice List
Voice List Name LCD Name Vibraphone & Harpsichord Vibr&Hrp Acoustic Bass 3 AcoBass3 PIANO Marimba Marimba Acoustic Bass 4 AcoBass4 Marimba (wide) MarimbaW Acoustic Bass Detuned DetAcoBs Acoustic Grand Piano 1 GrandPn1 SinMarmb Velocity Crossfade Bass VelCroBs Acoustic Grand Piano 2 Sine Marimba GrandPn2 Marimba (stereo) - Page 21 Voice List Synth Strings 2 SynStrs2 Bassoon 1 Bassoon1 Pad 4 (choir) 1 ChorPad1 Synth Strings 3 SynStrs3 Bassoon 2 Bassoon2 Pad 4 (choir) 2 ChorPad2 Synth Strings (stereo) 1 SynStrS1 Clarinet 1 Clarine1 Pad 5 (bowed) 1 BowdPad1 Synth Strings (stereo) 2 SynStrS2 Clarinet 2 Clarine2...
-
Page 22: Style List
Style List Name LCD Name Hip Hop HipHop Bluegrass Bluegras BEAT & POP LATIN Techno Techno 8Beat1 Euro Dance EuroDanc Bossa Nova 1 Bossa1 Beat 1 Garage Garage Bossa Nova 2 Bossa2 8Beat2 8Beat 2 SOUL & FUNK Rumba Rumba 8Beat3 8Beat 3 Pop Funk... -
Page 23: Song List
Song List Name LCD Name Name LCD Name CLASSIC Auld Lang Syne AuldLang Cannon Cannon When The Saints Go Marching In Marching Meditation Meditati Twinkle Twinkle Little Star Twinkle Old French Song France Happy Birthday To You Birthday Minuet In G Minuet Little Brown Jug BrownJug... -
Page 24: Midi Implementation Chart
M311_G05 AW_M311_Manual_G05_160201 2016 10:37:22...
