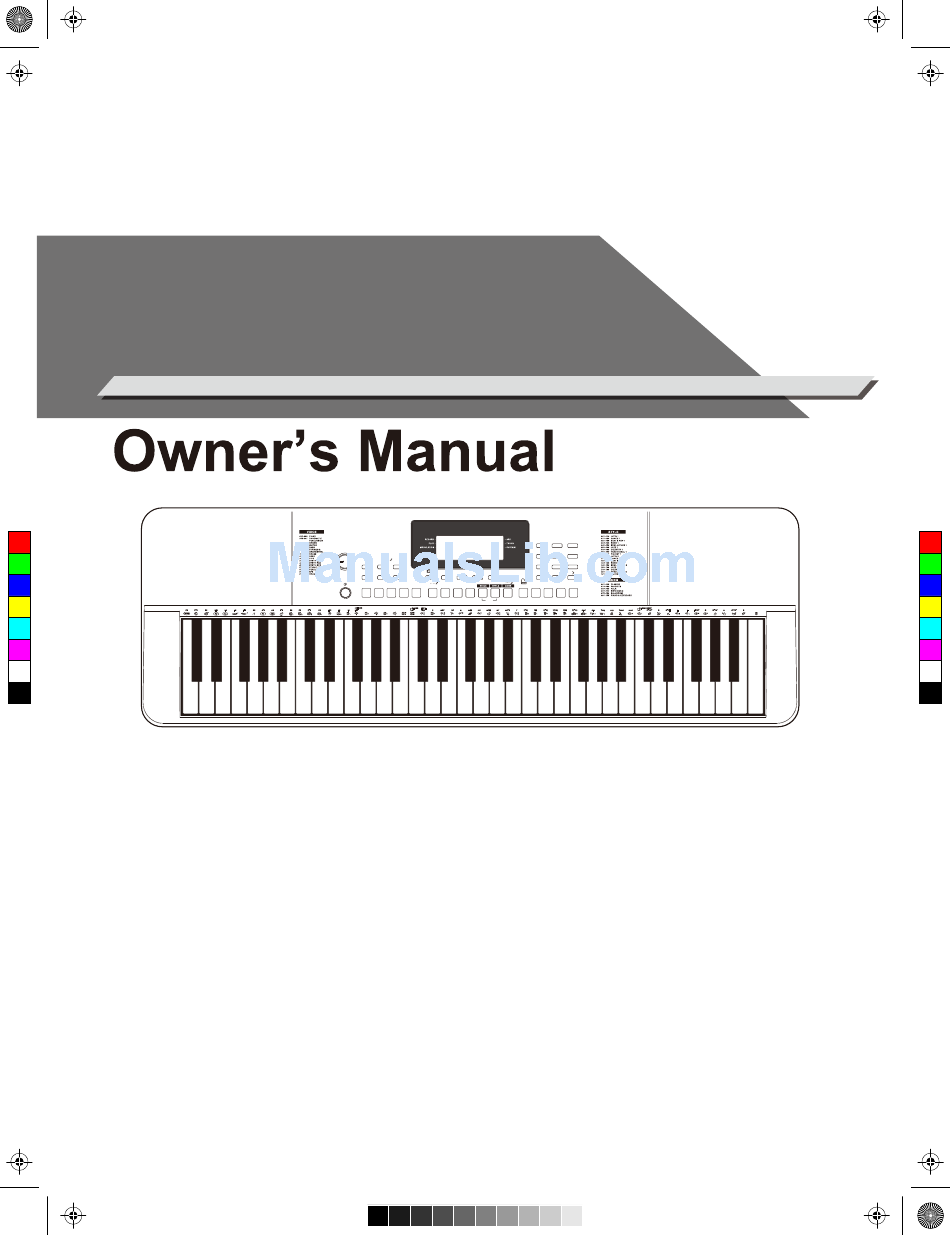

  • Page 1 AW_M221L_Manual_G05_180327.pdf 1 18/3/27 16:00 ELECTRONIC KEYBOARD VOLUME CHORD DICT. LESSON L / R FADE TEMPO CHORD BANK O.T.S. INTRO/ SYNC START/ ENDING FILL A FILL B START STOP RECORD DUAL LOWER SUSTAIN PIANO METRO TRANSPOSE MIXER FUNCTION DEMO DEMO...
  • Page 2 AW_M221L_Manual_G05_180327.pdf 2 18/3/27 16:00 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS PLEASE READ CAREFULLY BEFORE PROCEEDING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Please keep this manual in a safe place for future reference.

  • Page 3: Table Of Contents

    AW_M221L_Manual_G05_180327.pdf 3 18/3/27 16:00 Contents Panel & Display Description Arpeggiator..............15 Front Panel..............4 Rear Panel..............5 Mixer.................15 Display.................5 Function Menu Setup Tune................16 Power Supply...............6 Octave...............16 Split Point..............16 Connections Beat Type..............17 Connecting an MP3/CD Player........7 Touch.................17 Connecting an Audio Equipment.........7 Modulation..............17 Connecting a pair of Headphones.......7 DSP................17 Connecting a Microphone..........7 Reverb Type..............17...

  • Page 4: Panel & Display Description

    AW_M221L_Manual_G05_180327.pdf 4 18/3/27 16:00 Panel & Display Description Front Panel VOLUME CHORD DICT. LESSON L / R FADE TEMPO CHORD BANK O.T.S. INTRO/ SYNC START/ ENDING FILL A FILL B START STOP RECORD DUAL LOWER SUSTAIN PIANO METRO TRANSPOSE MIXER FUNCTION DEMO DEMO...

  • Page 5: Rear Panel

    AW_M221L_Manual_G05_180327.pdf 5 18/3/27 16:00 Panel & Display Description Rear Panel 30. USB Jack 33. AUX IN Jack Connect to a computer. Connect an external audio source, such as MP3 or CD player. 31. SUSTAIN Jack Connect a sustain pedal. 34. MIC Jack Connect a microphone.

  • Page 6: Setup

    AW_M221L_Manual_G05_180327.pdf 6 18/3/27 16:00 Setup This section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on. Power Supply You can power the instrument either by batteries or by power adaptor. Follow the instructions described below.

  • Page 7: Connections

    AW_M221L_Manual_G05_180327.pdf 7 18/3/27 16:00 Connections Connecting an MP3/CD Player The rear-panel AUX IN jack receives audio signals from an external audio source such as an MP3 or a CD player. Use an audio cable to connect the AUX IN jack of the instrument to the OUTPUT jack of the MP3/CD player.

  • Page 8: Power Switch And Master Volume

    AW_M221L_Manual_G05_180327.pdf 8 18/3/27 16:00 Power Switch and Master Volume Power Switch Before you switch your instrument on, please turn down the volume of instrument and the connected audio equipment first. Make sure the instrument is properly connected to power supply. Press POWER SWITCH, the LCD screen is lit, and displays “Loading!”, indicating the instrument is powered on.

  • Page 9: Playing The Voices

    AW_M221L_Manual_G05_180327.pdf 9 18/3/27 16:00 Playing the Voices The instrument features a variety of exceptionally realistic voices. Please refer to Voice List. Playing a Voice Press the [VOICE] button. Enter the VOICE mode. LCD shows “VOICE R1”, the voice number and the voice name.

  • Page 10: Sustain

    AW_M221L_Manual_G05_180327.pdf 10 18/3/27 16:00 Playing Voices Sustain SUSTAIN When the Sustain feature is ON, all notes played on the keyboard will have a longer sustain. Press the [SUSTAIN] button to turn sustain on or off. Note: When using a sustain pedal, you can produce a much stronger and more natural sustain effect than by using the [SUSTAIN] button.

  • Page 11: Auto Accompaniment

    AW_M221L_Manual_G05_180327.pdf 11 18/3/27 16:00 Auto Accompaniment The auto accompaniment function puts a full backing band at your fingertips. All you have to do is to play chords with your left hand, and the accompaniment will automatically play along, instantly following the chords you play.

  • Page 12: Fade In/Out

    AW_M221L_Manual_G05_180327.pdf 12 18/3/27 16:00 Auto Accompaniment Playing a Fill FILL A FILL B Auto fill in function automatically adds a fill to your performance. When the fill-in is finished,accompaniment shifts to the Main section (A,B). Note: If you keep pressing [FILL A]/[FILL B] buttons during style playback, the fill-in pattern will repeat playing until the button is released.

  • Page 13: Auto Bass Chord

    AW_M221L_Manual_G05_180327.pdf 13 18/3/27 16:00 Auto Accompaniment Auto Bass Chord Press the [CHORD] button, the LCD will display the “A.B.C.” CHORD indicator. The left hand section of the keyboard is the chord section. You can play different chords in the chord section. Press [CHORD] button again to enter Full Range mode.

  • Page 14: One Touch Setting

    AW_M221L_Manual_G05_180327.pdf 14 18/3/27 16:00 Auto Accompaniment Multi-finger Multi-finger allows you to play chords in normal fingering. Try playing the 32 chord types in C scale as listed on the right. Note: In full range mode, the entire keyboard will only recognize chords played in normal fingering.

  • Page 15: Arpeggiator

    AW_M221L_Manual_G05_180327.pdf 15 18/3/27 16:00 Arpeggiator The arpeggiator function will automatically generate arpeggios. Simply play a chord with your left hand, and the instrument will play a preset arpeggio pattern to produce a beautiful melody. Turn the Arpeggiator on or off ARP.

  • Page 16: Function Menu

    AW_M221L_Manual_G05_180327.pdf 16 18/3/27 16:00 Function Menu Press the [FUNCTION] button to enter the function menu. The LCD displays the current parameter item. FUNCTION Press repeatedly the [FUNCTION] button to select an item, then use the [+]/ [-] buttons to change the value of the selected item. Parameter items and the value range in the function menu: Parameter Item LCD Display...

  • Page 17: Beat Type

    AW_M221L_Manual_G05_180327.pdf 17 18/3/27 16:00 Function Menu Beat Type Repeatedly press the [FUNCTION] button to select the beat menu. The LCD displays “Beat”. Use the [+ ]/ [-] buttons to change the beat type. Pressing [+] and [-] buttons at the same time will reset the beat type to default “004”.

  • Page 18: Chorus Type

    AW_M221L_Manual_G05_180327.pdf 18 18/3/27 16:00 Function Menu Chorus Type Repeatedly press the [FUNCTION] button to select the chorus type menu. The LCD displays “Chr Type”. Use the [+]/ [-] button to change the type value. Pressing [+] and [-] buttons at the same time will reset the chorus type to default “003”.

  • Page 19: Register Memory

    AW_M221L_Manual_G05_180327.pdf 19 18/3/27 16:00 Register Memory The Registration Memory feature allows you to save virtually all panel settings to a registration memory, and you can instantly recall them by pressing a single button. The instrument has 8 memory banks, and each bank has 4 memories (M1-M4).

  • Page 20: Playing The Songs

    AW_M221L_Manual_G05_180327.pdf 20 18/3/27 16:00 Playing the Songs The instrument has a variety of songs (Please refer to the Song List). Each song can be practiced in LESSON mode. Listening to the Songs Press the [SONG] button to enter the song mode. It will play all songs circularly.

  • Page 21: Recording And Playback

    AW_M221L_Manual_G05_180327.pdf 21 18/3/27 16:00 Recording and Playback You can record you performance and then play it back. PLAY RECORD Press the [RECORD] button, the RECORD indicator will be lit, and the beats will flash. Play the keyboard or press the [START/STOP] button to start recording.

  • Page 22: Trouble Shooting

    AW_M221L_Manual_G05_180327.pdf 22 18/3/27 16:00 Trouble Shooting Problem Possible Cause and Solution The speakers produce a “pop” sound whenever This is normal and is no cause for alarm. the power is turned ON or OFF. No sound results when the keyboard is played. 1.

  • Page 23: Voice List

    AW_M221L_Manual_G05_180327.pdf 23 18/3/27 16:00 Voice List Englich Name LCD Name Celesta 2 Celesta2 PIANO Dark Celesta CelestD Acoustic Grand Piano GrandPno Dark Celesta 2 CelestD2 Piano Dark GrdPnD Celesta & Sine Cele&Sin Piano Dark 2 GrdPnD2 Reecho Bell ReBell Octave Piano OctPno Reecho Bell 2 ReBell2...
  • Page 24 AW_M221L_Manual_G05_180327.pdf 24 18/3/27 16:00 Voice List Pick Bass 2 Analog Organ 2 AnaOrg2 PickBs2 Pick Bass 3 Reed Organ ReedOrgn PickBs3 Mute Pick Bass Reed Organ 2 RedOrgn2 PickBsM Pick & Finger Bass Stereo Reed Organ ReedOrgS Pk&FgBs Pick Bass & Clean Guitar Accordion Acordin PBs&ClGt...
  • Page 25 AW_M221L_Manual_G05_180327.pdf 25 18/3/27 16:00 Voice List Analog Orchestra AnaOrch Analog Brass AnaBrass Analog String AnaStr Analog Brass 2 AnaBras2 Analog String 2 AnaStr2 Dynamics Analog Brass DyAnaBra Slow Strings SlowStr Octave Synth Brass SynBrasO REED Slow Strings 2 SlowStr2 Choir Aahs ChoirAah Soprano Sax SprnSax...
  • Page 26 AW_M221L_Manual_G05_180327.pdf 26 18/3/27 16:00 Voice List Classic TRI ClassTRI Control Control Stereo Analog Wind StAnWind Vague Vocals VagueVo Stereo Analog Wind 2 StAnWid2 Singl Synth SinglSyn Sawtooth Lead SawLead Analog Filter AnaFilt Sawtooth Lead 2 SawLead2 Analog Voice AnaVo Sawtooth Lead 3 SawLead3 Analog Voice 2 AnaVo2...
  • Page 27 AW_M221L_Manual_G05_180327.pdf 27 18/3/27 16:00 Voice List Analog Pad 4 AnalPd4 Soundtrack Soundtrk Detuned Sitar DetSitar Analog Pad 5 AnalPd5 Lost Garden Garden Banjo Banjo Far Away FarAway Banjo 2 Banjo2 Analog Wah AnaloWah Sharp Sharp Crystal Crystal Shamisen Shamisn Warm Pulse WarmPul Crystal 2 Crystal2...

  • Page 28: Style List

    AW_M221L_Manual_G05_180327.pdf 28 18/3/27 16:00 Style List Cool Funky CoolFunk English Name LCD Name Soul 1 Soul1 LATIN 1 Soul 2 Soul2 Cha Cha ChaCha Soul Shuffle SoulShfl Pop Cha Cha P.ChaCha Soul Blues SoulBlue Rhumba Rhumba R & B R&B Pop Rhumba P.Rhumba 6/8 Gospel...
  • Page 29 AW_M221L_Manual_G05_180327.pdf 29 18/3/27 16:00 Style List Bossa Nova 2-2 Bossa2-2 Swing Fox-2 SwinFox2 Tango-2 Tango-2 Big Band-2 BigBand2 Jazz Samba-2 JzSamba2 Big Band Medium-2 BandMed2 Reggae-2 Reggae2 Jazz Waltz-2 JzWaltz2 Pop Reggae-2 P.Regga2 Ragtime-2 Ragtime2 DANCE 2 Dixieland-2 Dixland2 Disco 1-2 Disco1-2 Quick Step-2 QuickSp2...

  • Page 30: Song List

    AW_M221L_Manual_G05_180327.pdf 30 18/3/27 16:00 Song List English Name LCD Name Wiegenlied 2 Wieglid2 CLASSIC Her Bright Smile Haunts Me Still HerSmile Chanson Du Toreador Toreador Old Black Joe BlackJoe Meditation Meditati Old Dog Tray DogTray Wiegenlied WieGenli Are You Lonesome Tonight? Lonesome A Lover's Concerto Concerto...
  • Page 31 AW_M221L_Manual_G05_180327.pdf 31 18/3/27 16:00 Song List Basic Tutorial Beyer Piano 45 Beyer45 Christmas Eve XmasEve Basic Tutorial Beyer Piano 50 Beyer50 Basic Tutorial Beyer Piano 52 Beyer52 Basic Tutorial Beyer Piano 55 Beyer55 Basic Tutorial Beyer Piano 59 Beyer59 Beyer Eight Degrees Jump Etude BeyrJump Basic Tutorial Beyer Piano The Scale Of C Major BeyerC...

  • Page 32: Midi Implementation Chart

    AW_M221L_Manual_G05_180327.pdf 32 18/3/27 16:00 MIDI Implementation Chart M221L_G05...
