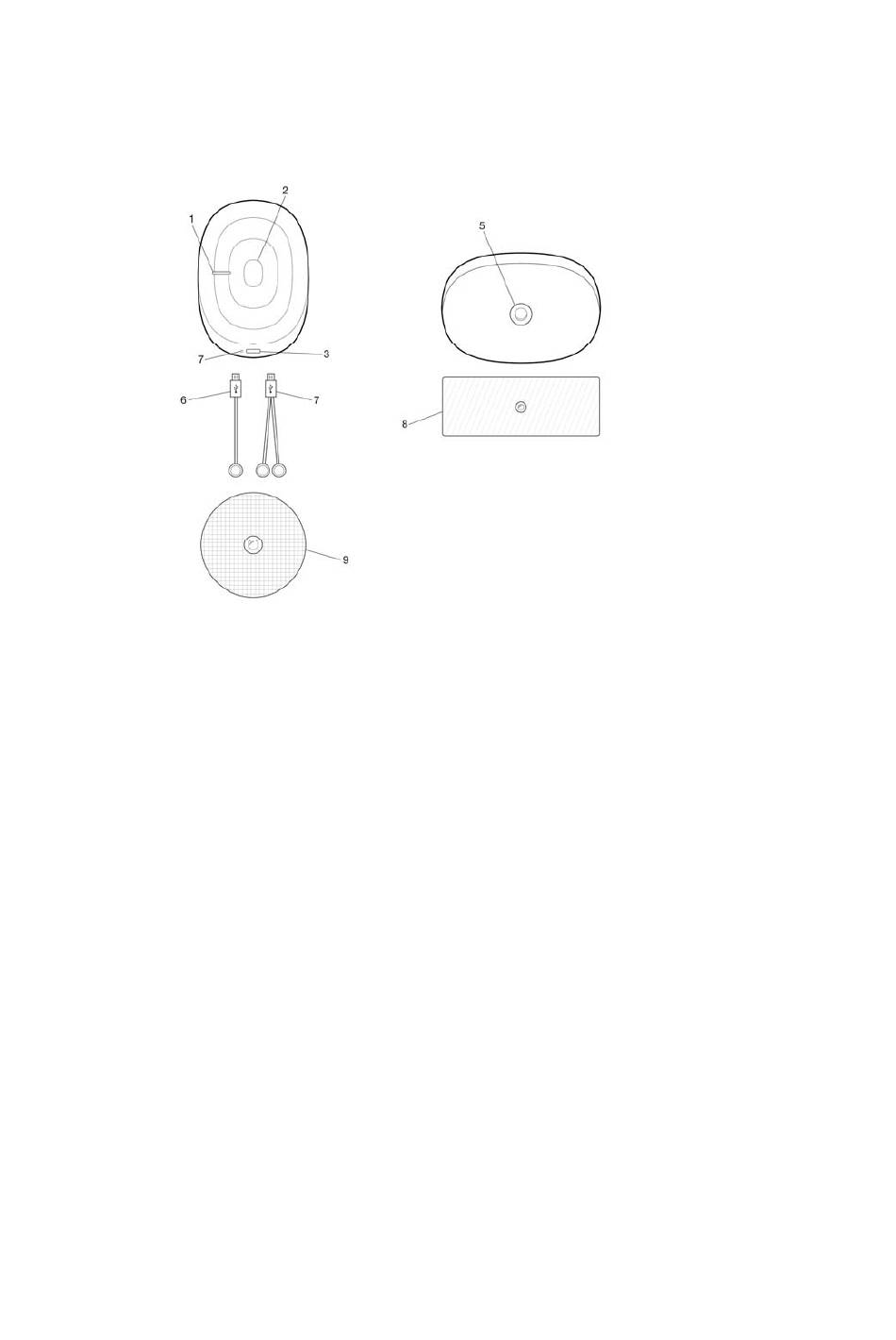

POWERDOT DEVICE & ACCESSORIES
1 – Power/Stimulation LED
2‐ Tactile Multi‐Functional Button
3 ‐ Micro USB connector (dual function: connects either leads or the charging cable)
4 – Charging LED
5 – Female snap on connector (connects device to a rectangular pad, holds the device attached to a
body)
6 – Lead cable with two 3.5 mm snap on connectors
7 ‐ Pad with 2.2 mm snap male connector (rectangular)
8 ‐ Pad with 3.5 mm snap male connector (round)
Power/Stimulation LED (1):
Power/Stimulation LED (1) can go either BLUE or ORANGE.
When PowerDot is switched OFF – Power/Stimulation LED is OFF too.
Power/Stimulation LED is BLUE ‐ PowerDot is in ON state and ready for stimulation.
10
