Antenna Reshipping Instructions for
TracVision
R5/R4
®
The following instructions explain how to repack the TracVision
R5/R4 antenna unit for shipping. The shipping restraints (tie-
wraps) removed during installation must be replaced during this
process.

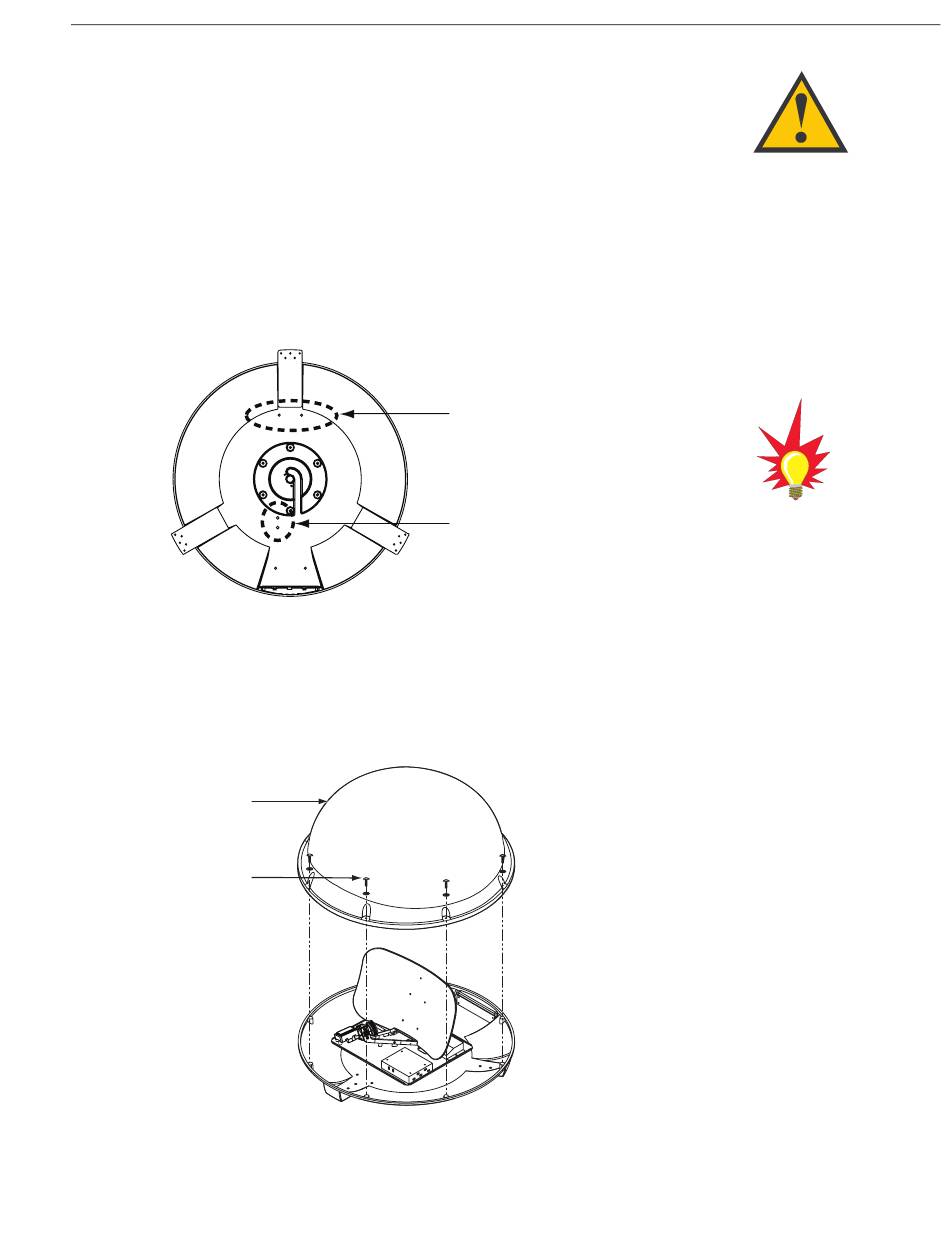

1. Remove the four plugs from the forward and rear
tie-wrap holes on the bottom of the baseplate.
Antenna Baseplate (Bottom View)
2. Remove the eight screws securing the radome.
Remove the radome and set it aside.
Radome
Screws
Radome Screws
54-0360 Rev. A
Forward
Tie-wrap
Holes
Rear
Tie-wrap
Holes
Antenna Reshipping Instructions
IMPORTANT!
If you need to return the antenna to
KVH, be sure to obtain an RMA
number from KVH Technical Support
and write the number clearly on the
outside of the box. Shipments
received without an RMA will be
returned to you at your expense.
If you need technical assistance,
please contact KVH Technical
Support:
North America, South America,
Australia:
Phone: +1 401 847-3327
Email: techs@kvh.com
Europe, Middle East, Asia:
Phone: +45 45 160 180
Email: support@kvh.dk
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TracVision R5
Summary of Contents for TracVision R5
- Page 1 ® The following instructions explain how to repack the TracVision IMPORTANT! R5/R4 antenna unit for shipping. The shipping restraints (tie- If you need to return the antenna to wraps) removed during installation must be replaced during this KVH, be sure to obtain an RMA process.
- Page 2 TracVision R5/R4 3. Gently rotate the rotating plate until the LNB is aligned with the forward mounting plate arrow. Baseplate Rotating Plate Forward Mounting Plate Arrow Reshipping Orientation 4. Thread one tie-wrap through the rear tie-wrap When moving the rotating plate by...
- Page 3 7. Place the entire antenna unit into its shipping box using the original packaging material. Secure the box to a pallet to ensure upright transport. The repacking process is complete. The TracVision R5/R4 is now ready for reshipment. KVH is not liable for damage caused by improper shipping.
