TracVision
R4/R5/L3/S3/C3 LNB Ground
®
Isolation Instructions
The following instructions explain how to isolate the LNB from
ground in a TracVision R4/R5/L3/S3/C3 antenna that has a serial
number earlier than 060900472. You will simply install the four
ground-isolating nylon shoulder washers provided in the kit.
Tools Required
• #2 Phillips screwdriver
• 11/32" nut driver
• Drill and 1/4" bit
For your own safety, be sure to disconnect power from the
antenna and receiver(s) before performing this procedure.
a. Turn off the antenna and unplug all connected
receivers.
b. Using a #2 Phillips screwdriver, remove the eight
#8-32 screws and washers securing the antenna's
radome to the baseplate (see Figure 1). Carefully
remove the radome and set it aside in a safe place.

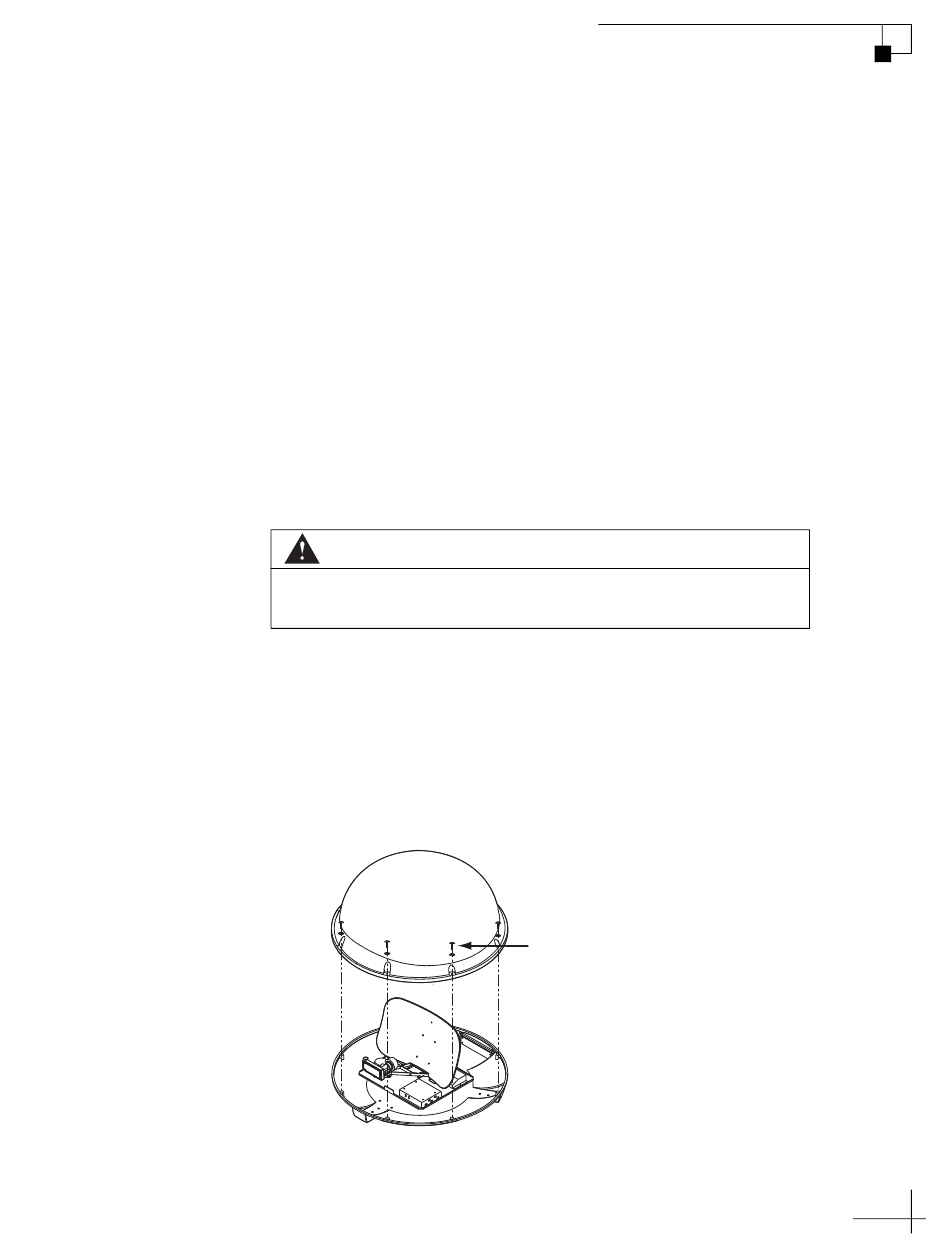

Figure 1 Removing the Radome
54-0568 Rev. A
LNB Ground Isolation Instructions
CAUTION
#8-32 Screws
and Washers (x8)
TracVision R4/R5/L3/S3/C3
1
