Front Panel Connector

The front panel connector (PANEL1) provides a standard set of switch and
LED connectors commonly found on ATX or micro-ATX cases. Refer to the
table below for information:

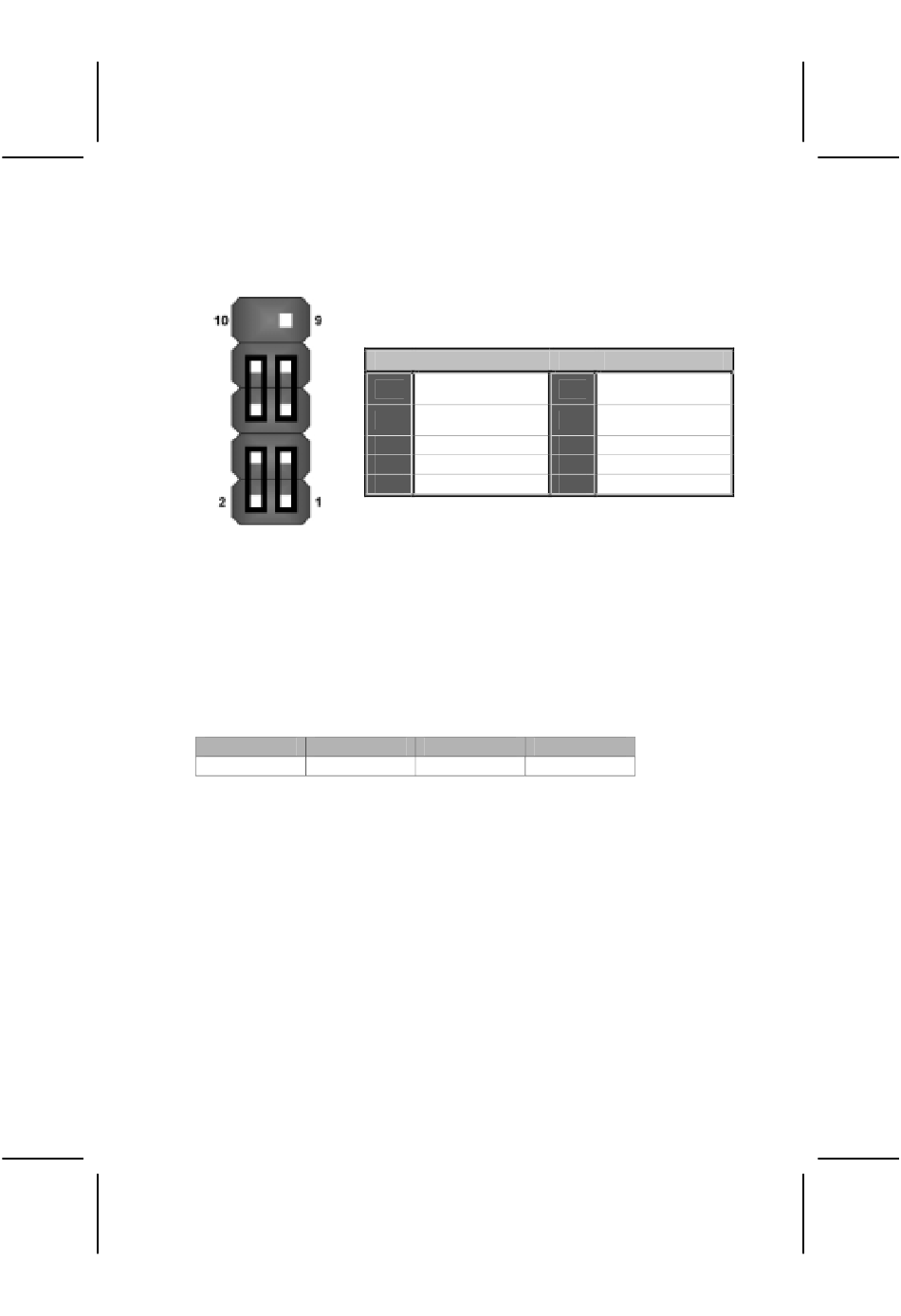

PANEL1
Hard Drive Activity LED
Connecting pins 1 and 3 to a front panel mounted LED provides visual indica-
tion that data is being read from or written to the hard drive. For the LED to
function properly, an IDE drive should be connected to the onboard IDE inter-
face.
Power / Sleep LED
Connecting pins 2 and 4 to a single- or dual-color, front panel mounted LED
provides power on/off, sleep, and message waiting indication.
S0 S1
Green Green blinking
Reset Switch
Supporting the reset function requires connecting pins 5 and 7 to a momen-
tary-contact switch that is normally open. When the switch is closed, the board
resets and runs POST.
Power Switch
Supporting the power on/off function requires connecting pins 6 and 8 to a
momentary-contact switch that is normally open. The switch should maintain
contact for at least 50 ms to signal the power supply to switch on or off. The
time requirement is due to internal debounce circuitry. After receiving a power
on/off signal, at least two seconds elapses before the power supply recog-
nizes another on/off signal.
Pin Function
Hard disk LED
1
(positive)
Hard disk active LED
3
(negative)
5 Reset Switch
7
Reset Switch
9
Reserved
S3
Yellow blinking
12
Pin Function
MSG LED [dual color
2
or single color (+)]
MSG LED [dual color
4
or single color (-)]
6 Power Switch
8
Power Switch
10
No pin
S4/S5
Dark
