OP940-SW
Example 1 (cont.): Referencing and Measuring
Return Loss

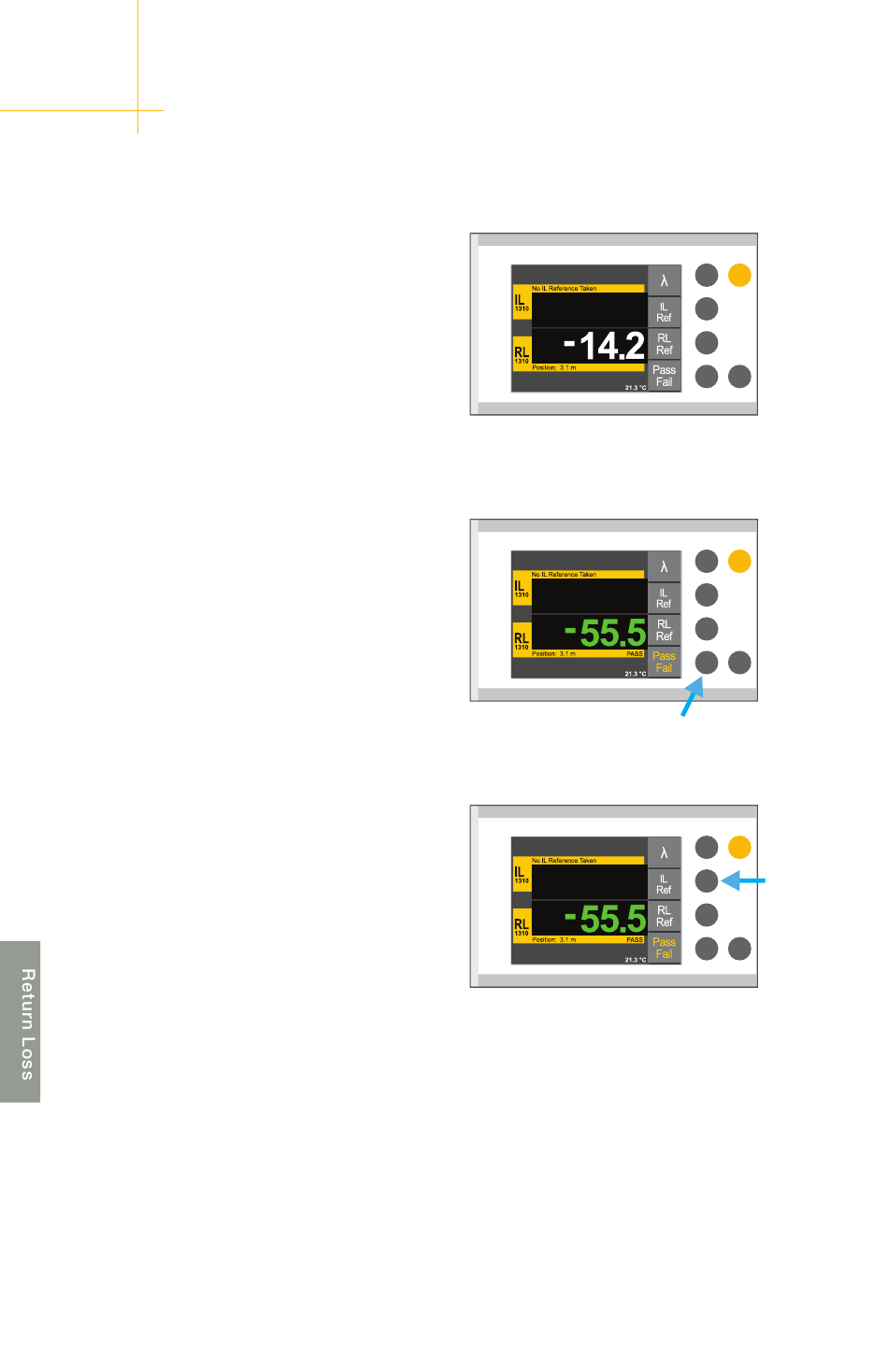

The unit will begin displaying live return
loss results.
From the measurement screen, press the
Pass/Fail Button to display live test results
based on the user-configurable settings.
Additionally, if insertion loss needs to be
referenced, simply select the IL Ref option
from the measurement screen.
35 of 49
