Assembly instructions
Intavis

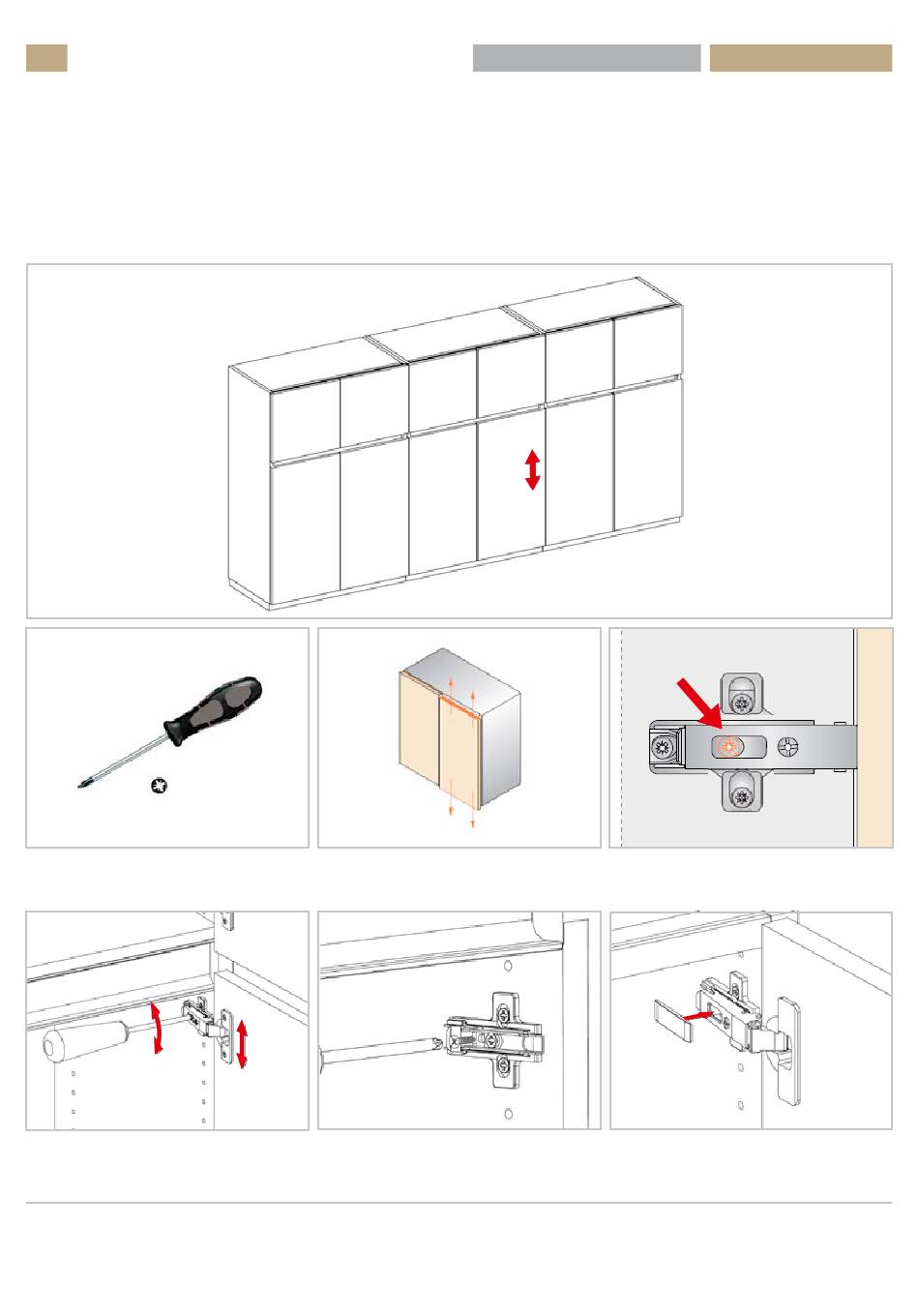

Height adjustment of wing doors (3-D boss hinges with opening angle of 110°).
The centre adjusting screw allows the height of the door to be adjusted. The adjusting screw changes the height of the hinge arm and therefore changes the
height position of the door.
Height adjustment is possible within the range of
Continue on page 11 or fit 3.5 x 20 retaining screw. Then clip on the cover cap.
–2 mm to +2 mm.
10
The ASSMANN principle. Good Work.
www.assmann.de
