Assembly instructions
Intavis

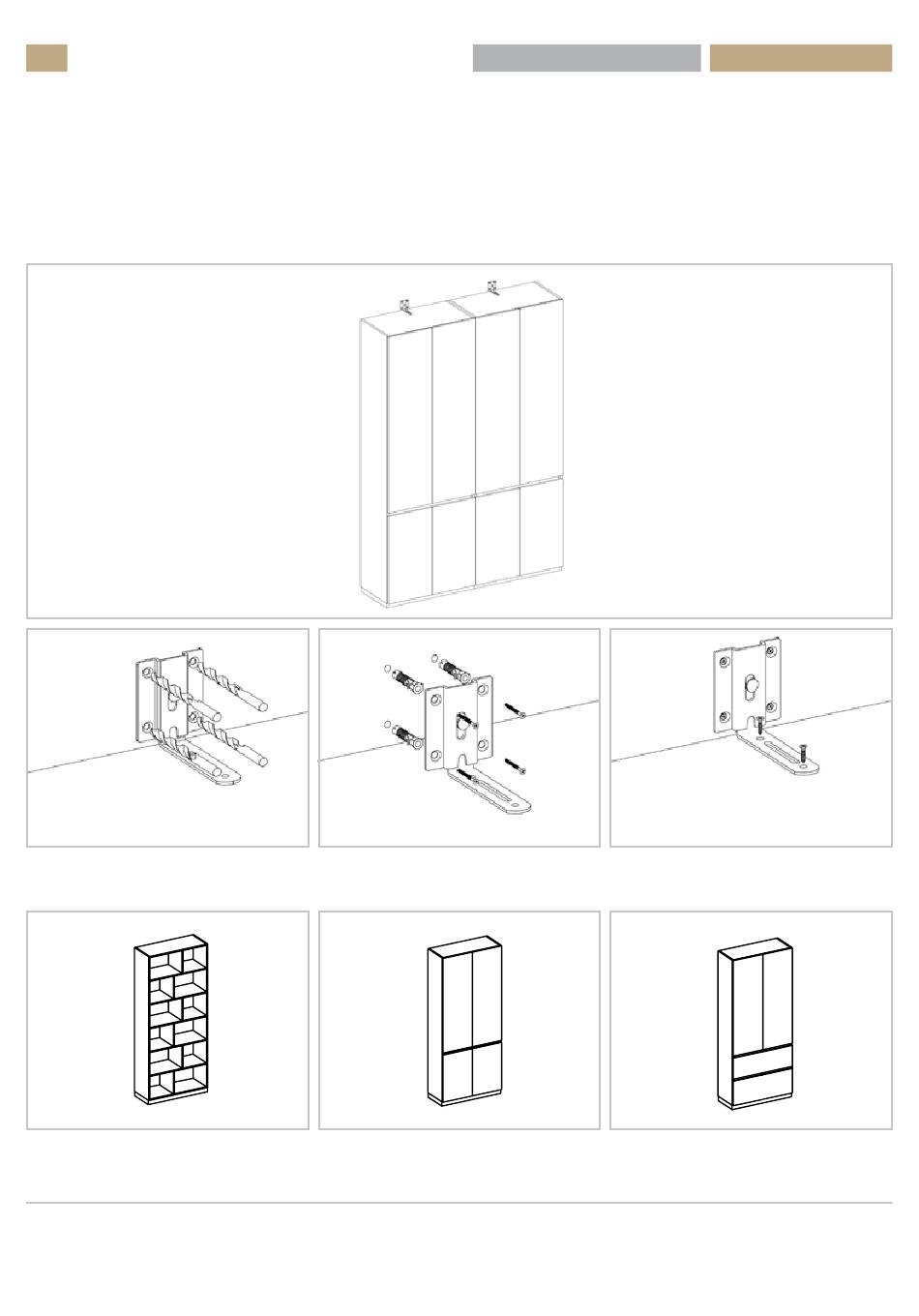

ATTENTION, RISK OF TIPPING! Secure cabinets with wall brackets!
Drill dowel holes (drill hole Ø 6 mm) and screw wall bracket to wall (4.5 x 50 screws) and cabinets (5 x 15 screws). Insert special dowel if necessary depen-
ding on wall material (dowel not included in scope of delivery).
All shelf cabinets with height > 5x plinth depth.
All wing door cabinets with height > 4x plinth depth. All drawer cabinets and cabinets with internal
pull-outs.
08
The ASSMANN principle. Good Work.
www.assmann.de
