Step 2
(IDE HDD)
(SATA HDD)
Push the hard drive till the connector pins on the har d drive is fully seated
inside the connector on the PCB.
Addonics Technologies – Jupiter ExDrive User's Guide v1.0
Step 1

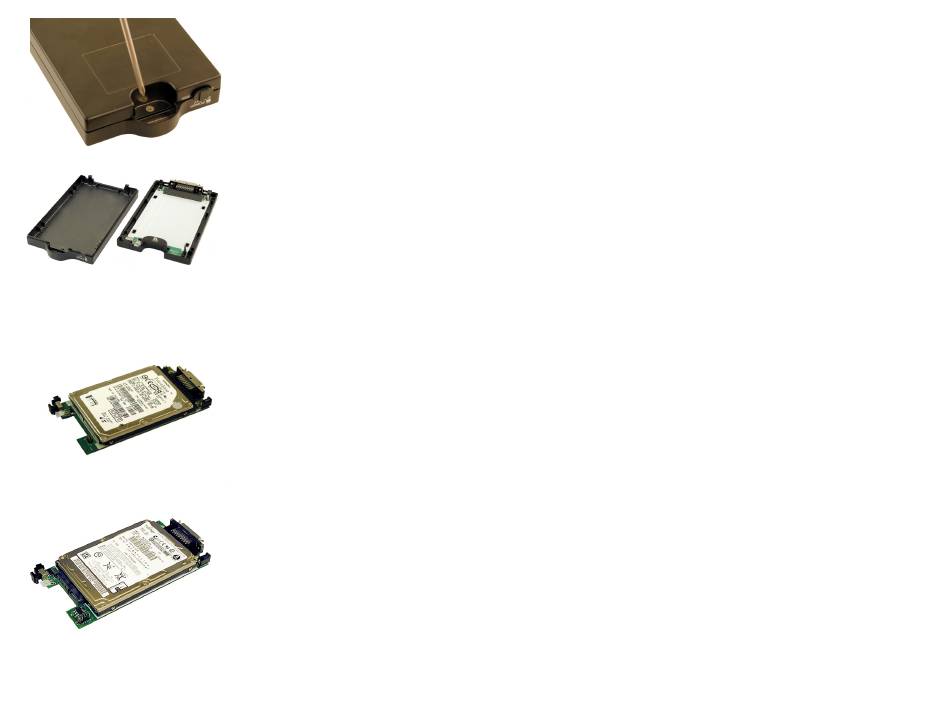

Separate the top from the bottom cover
of the drive enclosure by loosening the
screw as shown on the photo.
Align the male IDE connector on the
2.5" hard drive with the female IDE
connector on the PCB.
Align the SATA connector in the 2.5"
hard drive with the SATA connector on
the PCB.
