Installing the Auxiliary Handle

Parts needed for this procedure:
1 Auxiliary handle assembly
Procedure
1. Separate the auxiliary handle from the handle plate by removing the 4 socket head screws using the
provided Allen wrench (A of
2. Line up the guides on the auxiliary handle plate to the guide on the bottom of the trimmer shaft (B of
Figure 2).
3. Line up the auxiliary handle with auxiliary handle plate on the trimmer shaft (C of
4. Secure the auxiliary handle to the handle plate with the 4 socket head screws previously removed (D of
Figure 2).
Figure 2).

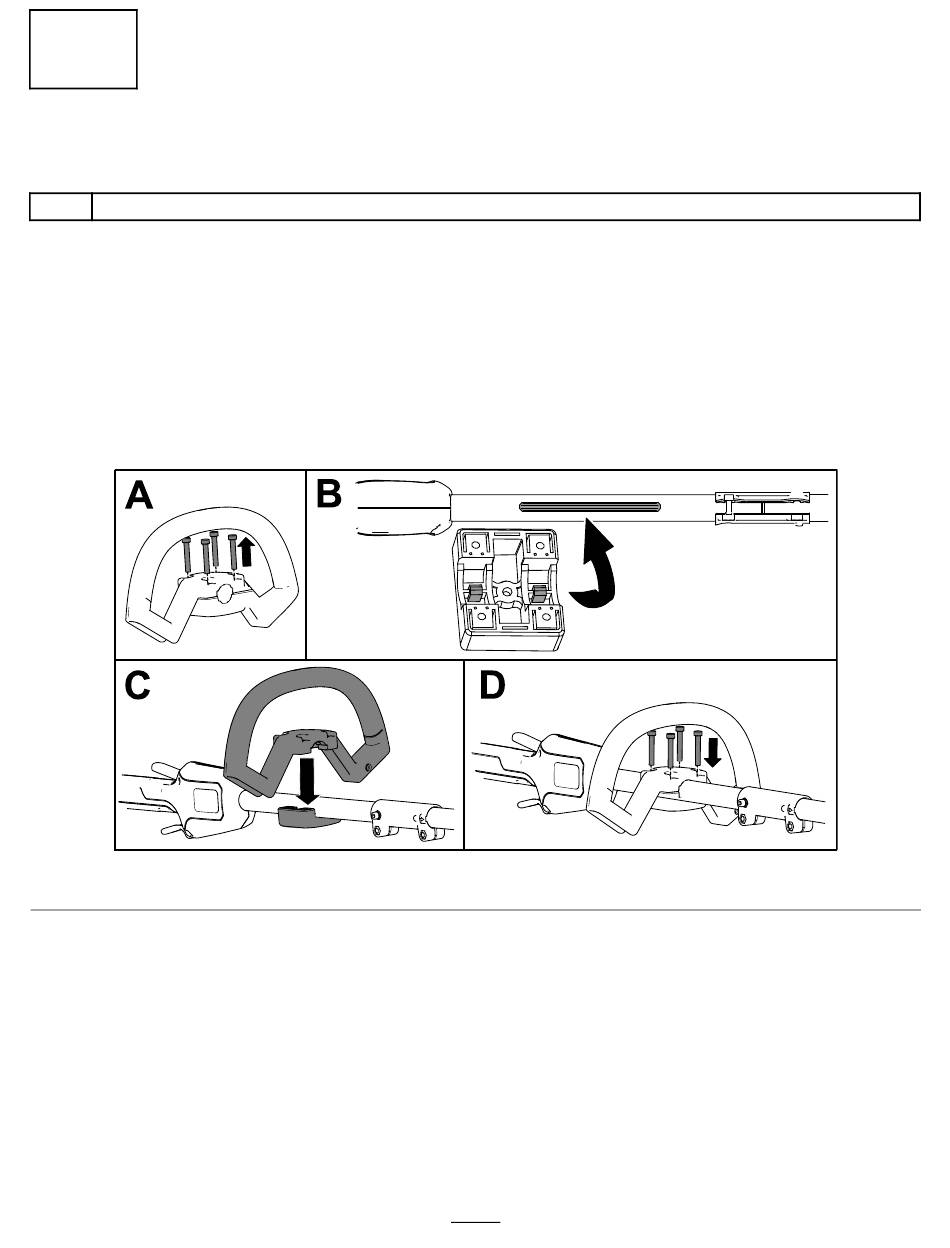

Figure 2
