Summary of Contents for Toro Flex-Force Power System MAX

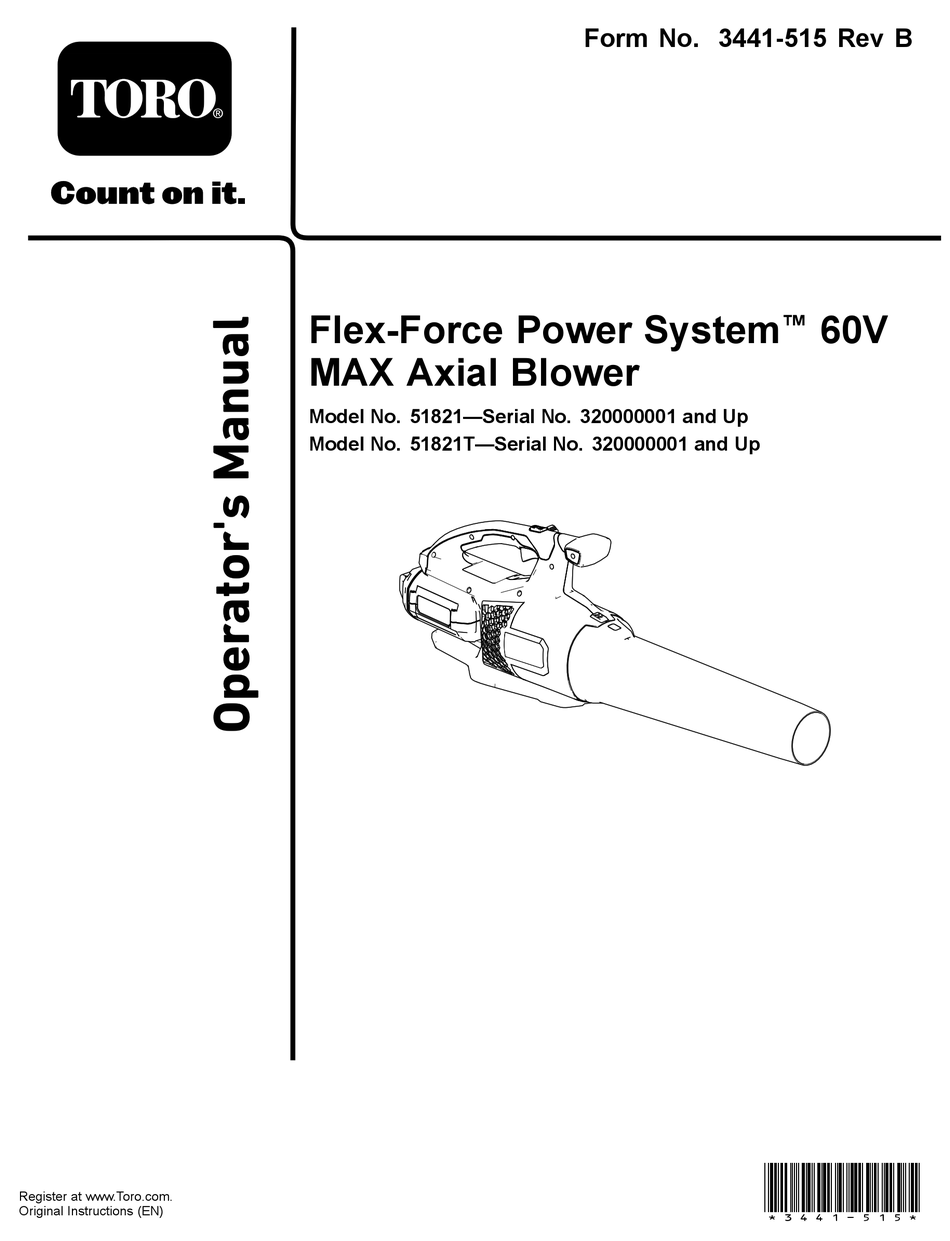

- Page 1 Form No. 3441-515 Rev B Flex-Force Power System ™ MAX Axial Blower Model No. 51821—Serial No. 320000001 and Up Model No. 51821T—Serial No. 320000001 and Up *3441-515* Register at www.Toro.com. Original Instructions (EN)
- Page 2 Model 88625, Model 88640, Model 88660, or Model operating area. 88675. These battery packs are designed to be Use only the battery pack specified by Toro. charged only by battery charger Model 88602 or Using other accessories and attachments may Model 88610 (provided with Model 51841).
- Page 3 Do not heat the battery pack above 68°C (154°F) or incinerate III. Operation it. Replace the battery pack with a genuine Toro Avoid dangerous environments—Do not use the battery pack only; using another type of battery appliance in rain or in damp or wet locations.
-
Page 4: Safety And Instructional Decals
Check the debris collector frequently for wear or Store an idle appliance indoors in a place that is deterioration and replace it when necessary. dry, secure, and out of the reach of children. Keep all fasteners on the appliance tight. Do not dispose of the battery in a fire. - Page 5 decal137-9461 137-9461 1. Battery charge status decal144-3081 144-3081 1. Warning—read the 3. Thrown object Operator’s Manual; stay hazard—keep bystanders away from moving parts; away. keep all guards and shields in place; wear eye protection; do not expose to rain. 2. Warning—keep bystanders away from the machine in all directions.
-
Page 6: Product Overview
Setup Product Overview Note: The battery pack is not fully charged when you purchase it. Before using the tool for the first time, refer to Charging the Battery Pack (page Assembling the Blower Slide the blower tube onto the blower housing. You may need to press down on the tube latch for the blower tube to lock into place (Figure... -
Page 7: Operation
Specifications Operation Model 51821/51821T WARNING Rated Voltage 60V DC maximum, 54 VDC nominal usage The blower can throw debris, possibly Charger Type 88602 or 88610 (included with causing serious personal injury to you or 51821) bystanders. Battery Type 88620 (included with 51821), 88625, 88640, 88660, or •... - Page 8 Adjusting the Air Speed of the Blower To achieve maximum performance (air speed) , press and hold the turbo boost button for the desired amount of time (Figure To adjust the air speed as you blow, use the variable-speed trigger (Figure g267488 To maintain the current air speed, engage the speed...
- Page 9 Slide the charger into the battery pack until it is fully seated (Figure To remove the charger, slide the charger backward out of the battery. Refer to the following table to interpret the LED indicator light on the battery charger. Indicator Indicates light...
- Page 10 If you are located outside of the US • Do not store the tool with the battery pack installed. and Canada, please contact your authorized Toro distributor. • Clean all foreign material from the product. • When not in use, store the tool, battery pack, and battery charger out of the reach of children.
-
Page 11: Troubleshooting
Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Problem Possible Cause Corrective Action The tool does not start. - Page 12 California Proposition 65 Warning Information What is this warning? You may see a product for sale that has a warning label like the following: WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov. What is Prop 65? Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into California.
