Vulcan-Hart Value Series V36-1 Installation Instructions

Model V36-1

SPECIFICATIONS

36" wide gas restaurant range, Vulcan Model No. V36-1.
Stainless steel front, sides, backriser, high shelf, oven handle
and bullnose. High temperature burner T knobs with set screw.
Nickle plated bullet feet. Porcelain door liner and oven bottom.
Six 28,000 BTU/hr. cast top burners with lift-off burner heads.
Individual pilot for each burner. 12" x 12" cast top grates
with aeration bowls. Heavy duty top grates and burner heads.
Compression spring door hinge system for durability. 35,000
BTU/hr. Standard oven measures 26 1/4"w x 22"d x 14 1/2"h.
Thermostat adjusts from Low to 500 degrees F. One oven
rack with four rack positions. 3/4" rear gas connection and
gas pressure regulator. Total input: 203,000 BTH/hr.

Exterior Dimensions:

32"d x 36"w x 58"h on 6" adjustable legs
P.O. Box 696 Louisville, KY 40201
n
F-37390 (07/08)

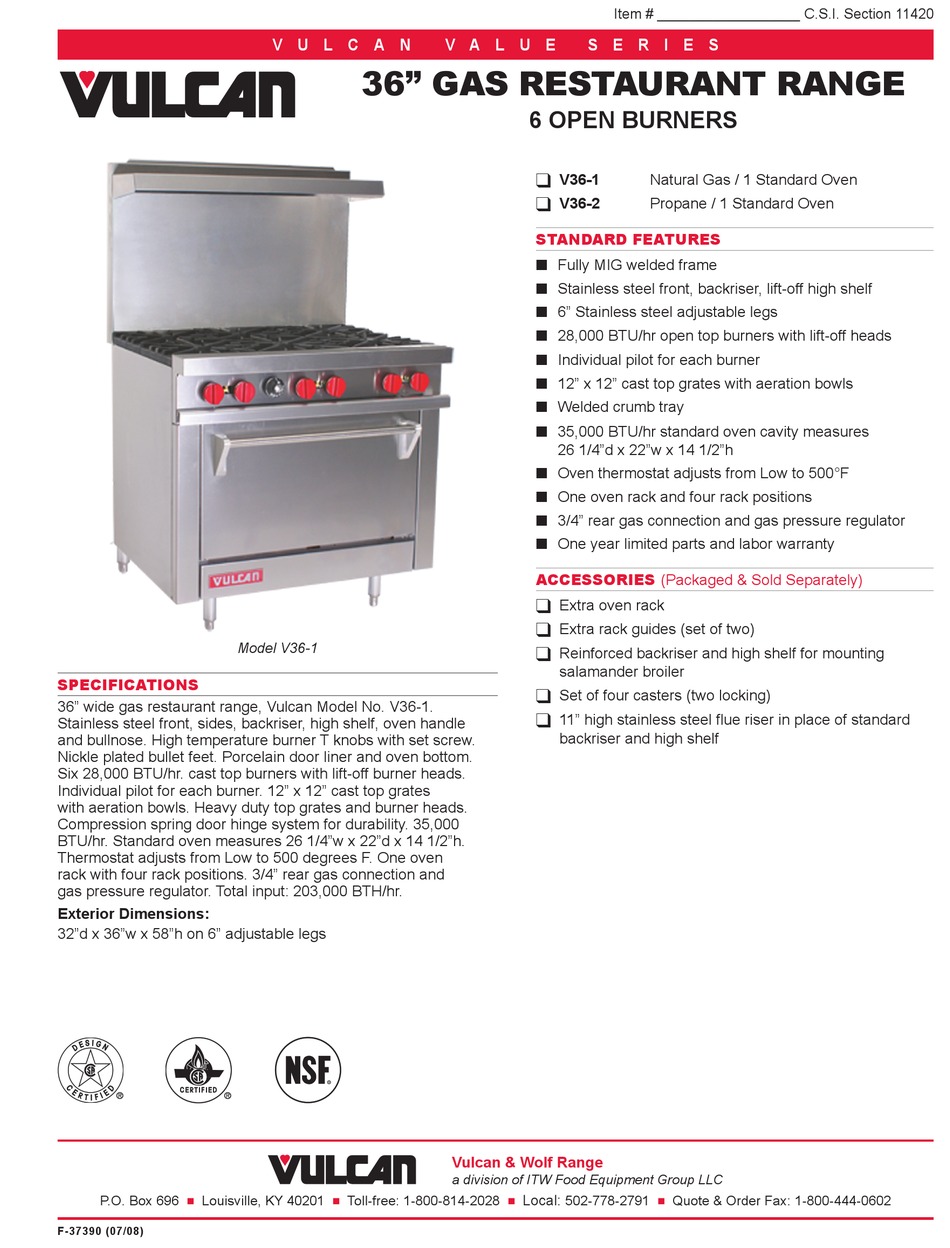

V U L C A N V A L U E
36" GAS RESTAURANT RANGE
Vulcan & Wolf Range
a division of ITW Food Equipment Group LLC
Toll-free: 1-800-814-2028
n
Item # __________________ C.S.I. Section 11420
S E R I E S

6 OPEN BURNERS

V36-1 Natural Gas / 1 Standard Oven
T
V36-2 Propane / 1 Standard Oven
T

STANDARD FEATURES

Fully MIG welded frame
■
Stainless steel front, backriser, lift-off high shelf
■
6" Stainless steel adjustable legs
■
28,000 BTU/hr open top burners with lift-off heads
■
Individual pilot for each burner
■
12" x 12" cast top grates with aeration bowls
■
Welded crumb tray
■
35,000 BTU/hr standard oven cavity measures
■
26 1/4"d x 22"w x 14 1/2"h
Oven thermostat adjusts from Low to 500°F
■
One oven rack and four rack positions
■
3/4" rear gas connection and gas pressure regulator
■
One year limited parts and labor warranty
■
ACCESSORIES (Packaged & Sold Separately)
Extra oven rack
T
Extra rack guides (set of two)
T
Reinforced backriser and high shelf for mounting
T
salamander broiler
Set of four casters (two locking)
T
11" high stainless steel flue riser in place of standard
T
backriser and high shelf
Local:
502-778-2791 Quote & Order Fax: 1-800-444-0602
