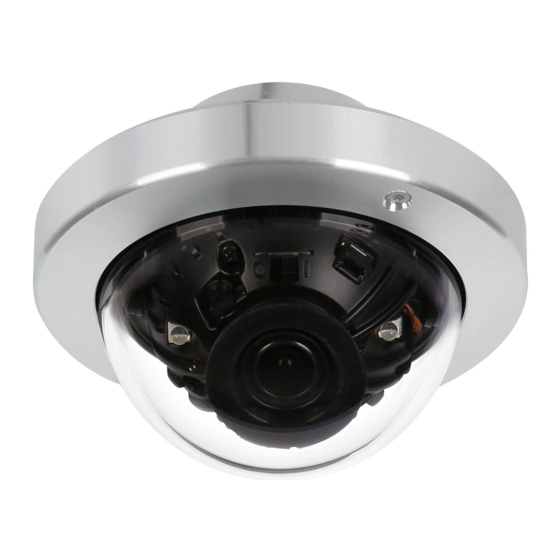

Digital Watchdog Star-Light DWC-MC253WTIR Quick Start Manual

Quick Start Guide
DW® Universal HD over Coax®
micro dome cameras
DWC-MC253WTIR DWC-MC253W-28

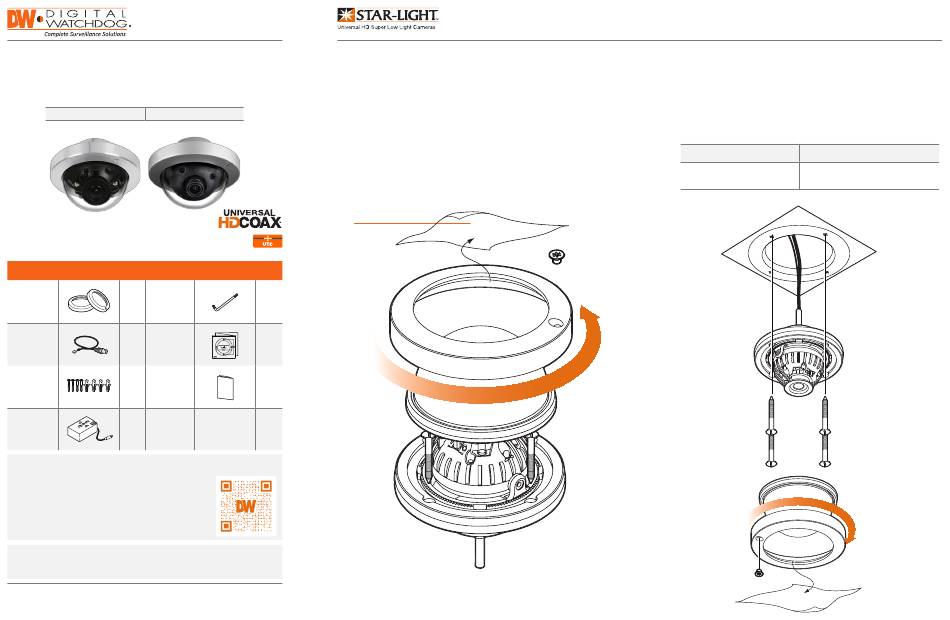

WHAT'S IN THE BOX
Black and
white Hex Allen
1
decorative wrench
rings
Test video Mounting
1
cable template
Screws and
Quick set up
plastic 1 Set
guide
anchors-4pcs
External OSD
and signal 1
controller
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in
the 'Search by Product' search bar. Results for
applicable part numbers will populate automatically
based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five times the weight of
your camera.
2. Pay attention to the cables. They can easily become caught and
damaged. Any damage may cause a short or fire.
3. Detach the camera's dome cover by removing the security screw from
the decorative ring.
4. Unscrew the decorative ring from the camera module by rotating it
counter-clockwise.
Protective sheet
1
1
1
digital-watchdog.com
Quick Start Guide
STEP 2 – CABLING THE CAMERA TO
EXTERNAL DEVICES
Pass the wires through the mount bracket and make all necessary
connections. Connect the BNC cable and power cables to the
camera.
Power requirements Power consumption
12VDC ONLY!
DC12V (LED off): 1.92W
CAUTION! The camera supports
DC12V (LED on): 3.12W
DC power supply only
