Summary of Contents for Digital Watchdog DWC-MC753WTIR

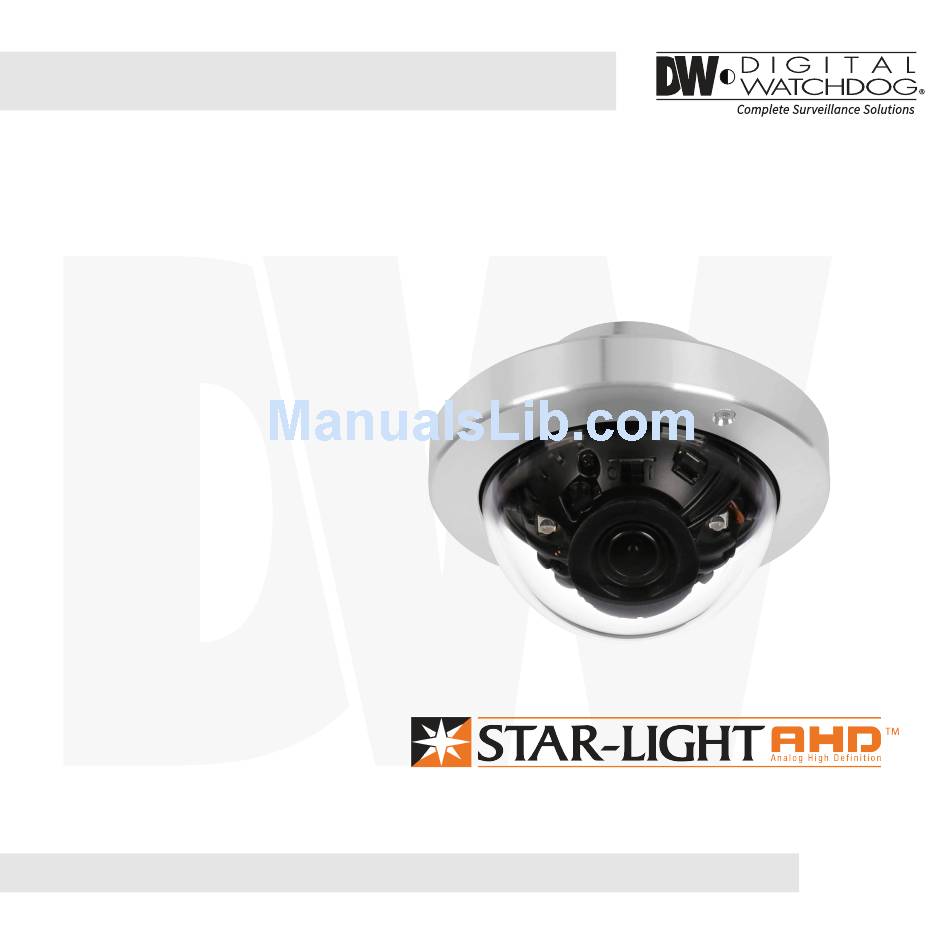

- Page 1 Analog High Definition Micro Dome Camera DWC-MC753WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 04172015...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
- Page 3 TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Mount Installation Instructions Connecting to Monitors Adjusting the Camera’s Position Troubleshooting Warranty Information 13-14 Specifications...
- Page 4 FEATURES* Analog High Definition (AHD) HD over Coax Technology STAR-LIGHT™ Super Low Light Technology Panasonic 1/3" CMOS Sensor 1080P Resolution at 30fps Wide Dynamic Range (WDR) Fixed Lens 3.6mm Smart IR™ with Intelligent Camera Sync. 50ft Range Smart DNR™ 3D Digital Noise Reduction Highlight Masking Exposure (HME) True Day/Night Mechanical IR Cut Filter Secondary Video-BNC Output...
- Page 5 PARTS & DESCRIPTION* Lens Power Input Connector 12VDC Voltage Primary Video BNC Output Connector Mounting Screws Camera Module Bubble Dome Upper Case Security Screw...
- Page 6 DIMENSIONS IN MILLIMETERS (IN)*...
-
Page 7: Inside The Box
Mounting Template L-Key 4 Machine Screw and 4 Dry Wall Anchors Analog High Definition Micro Dome Camera DWC-MC753WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 04172015... - Page 8 INSTALLATION* 1. Remove the Security Screw from the Upper Case using the small L-Key. 2. Unscrew the upper case from the camera module by rotating it counter clock-wise. 3. Use the camera’s mounting template or your camera to mark the holes as required. Drill into the drywall and insert the drywall mounts into the holes.
- Page 9 INSTALLATION* 5. Adjust the camera’s view (See page 11- CAMERA SETTINGS). 6. place the bubble dome on the camera. Screw the cover dome back by rotating it clock-wise. 7. Tighten the Security screw back in place to firmly secure the cover dome to the camera module.
- Page 10 CONNECTIONS* Use the diagram below to connect the camera to a Monitor or CRT Monitor properly. 12VDC VIDEO OUT CAUTION : Check for polarity when using a DC 12V.
- Page 11 ADJUSTING THE CAMERA GIMBAL* Adjust the camera’s pan (360º) and tilt (70º) position. Rotation 360º Panning 360º Tilting 70º IR LED...
- Page 12 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
-
Page 13: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants Camera Series against defects in materials or workmanship as follows. LABOR : For the initial five (5) years and one (1) year on LED from the date of original purchase, if the camera is determined to be defective, the Warrantor will repair or replace the unit, with new or refurbished product at its option, at no charge. - Page 14 LIMITS AND EXCLUSIONS* There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including without limitation and damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty.
-
Page 15: Specifications
SPECIFICATIONS* VIDEO Image Sensor Panasonic 1/3" CMOS Active Pixels 1944(H) x 1092(V) Scanning System Progressive scan Frequency 60Hz/50Hz Signal Technology 2.0 Megapixel AHD Synchronization Internal Resolution 1920x1080 (1080p) Minimum Scene Illumination F1.4 (30IRE): 0.35Lux [Color] F1.4 (30IRE): 0 Lux [B&W] S/N Ratio 55dB Video Output... - Page 16 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm EST...
