Tone PW200 Instruction Manual

Pneumatic shear wrench
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

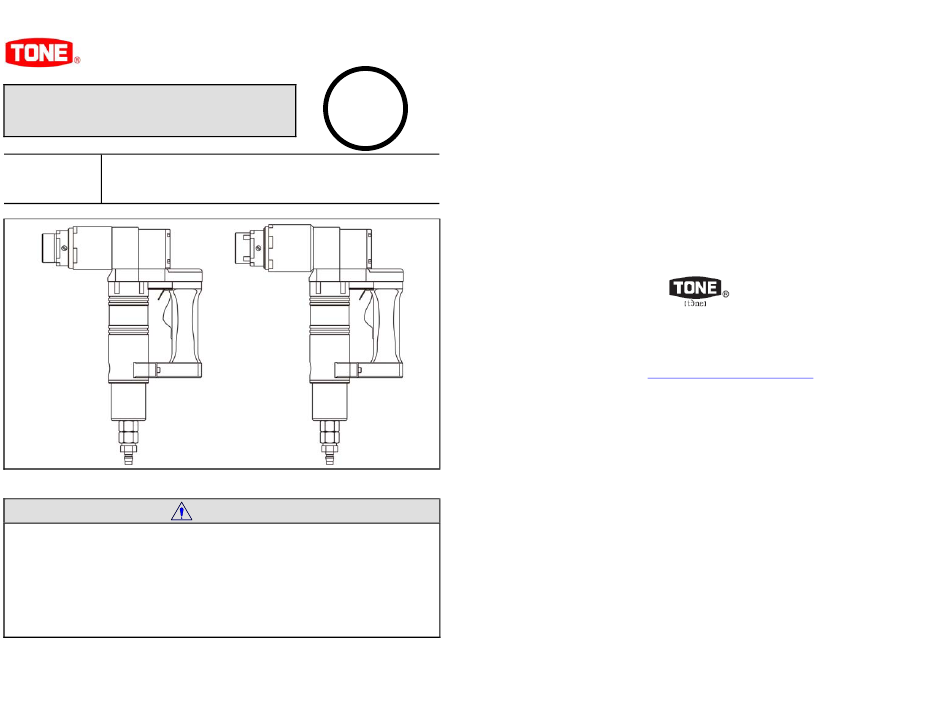

PNEUMATIC SHEAR WRENCH
INSTRUCTION MANUAL
No. 0901
PW200
MODEL
PW220
Read and fully understand all the instructions before use.
Keep this manual in designated place for easy and quick
reference.
The model mentioned on this manual is designed for use outside
o
Japan.
Warranty shall be void if above mentioned model is used in
Japan.
LeJeune Bolt Company
TO BE
PRESERVED
CAUTION
MAEDA METAL INDUSTRIES, LTD.
No.14-3, Fukae-kita 3-chome,
Higashinari-ku, Osaka, Japan, Post code 537-0001
Web site : http://www.tonetool.co.jp
e-mail :
overseas@tonetool.co.jp
● Specifications and the design are subject to change without
notice. ●

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tone PW200

Summary of Contents for Tone PW200

  • Page 1 PNEUMATIC SHEAR WRENCH TO BE INSTRUCTION MANUAL PRESERVED No. 0901 PW200 MODEL PW220 MAEDA METAL INDUSTRIES, LTD. No.14-3, Fukae-kita 3-chome, Higashinari-ku, Osaka, Japan, Post code 537-0001 Web site : http://www.tonetool.co.jp e-mail : overseas@tonetool.co.jp ● Specifications and the design are subject to change without notice.
  • Page 2 This manual specifies three basic safety INTRODUCTION instructions: Thank you for purchasing the LeJeune PNEUMATIC SHEAR WRENCH DANGER WARNING CAUTION ■ Upon receipt, check and confirm the following: - Check any transport damages. - Check for any loose or lost screws and bolts. ■...

  • Page 3: Table Of Contents

    APPLICATION PRECAUTIONS FOR USE 1. APPLICATION 3. BEFORE USE ■ TONE PNEUMATIC SHEAR WRENCH is a pneumatic tool for tightening Tension Control Bolts/Nuts. 4. PART NAME PRECAUTIONS FOR USE 5. OPERATING PROCEDURE 6. CHANGING SOCKETS ■ To prevent accident, personal injury and etc, read and follow all instructions listed below.
  • Page 4 WARNING WARNING ● Avoid overloading. ● Use adequate air hose. ○ Use pneumatic wrench and its accessories within the rated specification. ○ Use adequate air hose listed on page 19. Overloading of the wrench and its accessories may result ○ Use oil and abrasion resistant air hose. in damage of the wrench or its accessories;...
  • Page 5 WARNING WARNING ● Contact your distributor for repair service. ● Never connect pneumatic wrench to electric power source. Repair work should only be done by a qualified serviceman. Repair work done by an inexperienced person may cause ○ Pneumatic wrench is not an insulated tool. accident, injury or malfunction.
  • Page 6 CAUTION CAUTION ● Keep work area clean. ● Keep air motor well ventilate. Cluttered areas and benches invite accidents. Do not block exhaust vent. ● Keep children away. ● Never put any items into exhaust vent. Do not let children touch pneumatic wrench and air hose. Water, mud or other substances entering an exhaust vent All visitors should be kept away from work area.

  • Page 7: Before Use

    3. BEFORE USE CAUTION ● Supply dry air below 10 (50 ). 1. Inspection Air supply over 10 (50 ) may result in malfunction or WARNING deficient in wrench performance. ● Ensure the air hose is not connected to the wrench ●...

  • Page 8: Part Name 1

    ● Snug tight by using snug tightening wrench like TONE SNUG MASTER is required before using pneumatic wrench. Figure 3 Slide Inner Socket over the bolt pintail. Slide Outer Socket over the nut.

  • Page 9: Changing Sockets 1

    (3) Select adequate inner & outer socket assembly of the bolts being tightened. 6. CHANGING SOCKETS i.e. Use TONE genuine 5/8” inner & outer socket assembly for tightening 5/8” TC bolt/nut assembly WARNING ● Release ejector pin by pulling ejector lever (4) Place the inner socket vertically then slide the outer before changing sockets.

  • Page 10: Inspection & Maintenance 1

    7. INSPECTION & MAINTENANCE WARNING ● There should be no gap between the socket assembly WARNING and the pneumatic wrench. ● Disconnect air hose from pneumatic wrench before The gap invites accident or breakage of the sockets or the wrench body. inspection and maintenance.

  • Page 11: Features 1

    Additive-free turbine oil ISO VG32 or Air Motor Oil equivalent Feed 5 drops per minute 8. FEATURES ● Wrench weight excludes sockets and air hose 10. ACCESSORIES Explosion protection TONE style grip Bolt/Nut Anti-Defacement mechanism MODEL ACCESSORIES Q’TY Silencer ○ Ejector Pin ○...
  • Page 12 MEMO MEMO...

This manual is also suitable for:

Pw220
