Bresser AR102S f/4.5 Refractor Kit Assembly Instructions

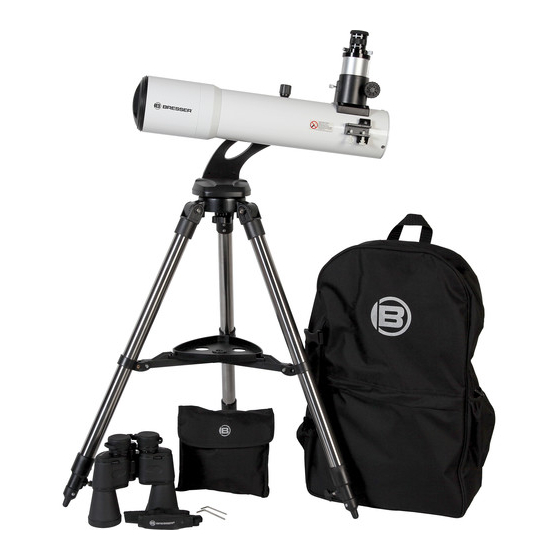

Bresser AR102S f/4.5 Refractor Kit

Assembly & Instructions

Explore Scientific / Bresser would like to thank you for your puchase of the Bresser AR102S f/4.5 Refractor

Kit. As one of the most lightweight and compact 102mm refractors available, the AR102S will give you many

years of enjoyment.

Please open up the cardboard shipping container and remove the contents. Place them on a flat surface like a

table, bench etc. The contents include the following:

1. Tripod & Head Assmbly (Tripod Speader Bar is already attached)

2. Accessory Tray

3. Altitude/Azimuth Mount

4. Case/Backpack

5. Allen Wrenches (2)

6. AR102S Optical Tube Assembly

7. Bresser 1.25" 20mm 70 Degree Eyepiece

8. Bresser 7x50mm Long Eyerelief Binoculars

Note: The telescope, binoculars & eyepiece come packed in the case

Table of Contents

Need help?

Do you have a question about the AR102S f/4.5 Refractor Kit and is the answer not in the manual?

Page 1 Bresser AR102S f/4.5 Refractor Kit Assembly & Instructions Explore Scientific / Bresser would like to thank you for your puchase of the Bresser AR102S f/4.5 Refractor Kit. As one of the most lightweight and compact 102mm refractors available, the AR102S will give you many years of enjoyment.
Page 2 5. Remove the plastic cap that is in the 1.25" hole in the top of the focuser and Locking Knob insert the Bresser 1.25" 20mm eyepiece. Snug the three silver colored knobs to hold the eyepiece in place but do not over-tighten.
Page 3 Bresser AR102S f/4.5 Refractor Kit Assembly & Instructions Now that the telescope is fully assembled and ready to be used it’s recommended to first get acquainted with it’s features and how it functions during the day. Take the telescope and mount outside, weather permitting of course and place it on a firm surface (Ground, Driveway, Deck etc.) and adjust the legs so the...
