Avalon Side Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
screw
bolt
x8
x4
D
E
allen key
felt pad
x1
x4

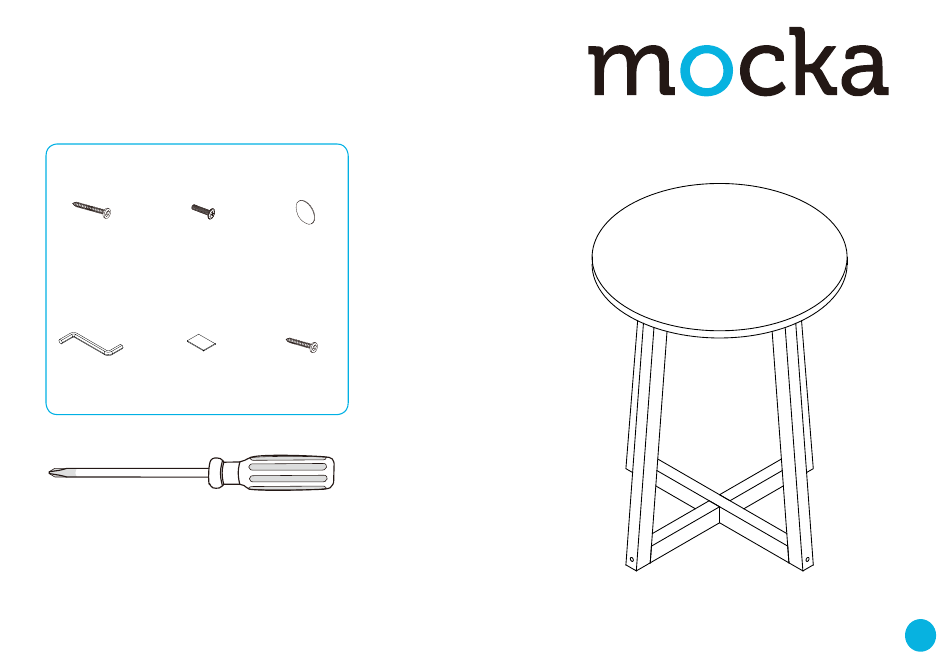

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
C
sticker
x8
F
screw
x1
1
Advertisement
Table of Contents
Related Manuals for Mocka Avalon Side Table
Summary of Contents for Mocka Avalon Side Table
- Page 1 Avalon Side Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. screw bolt sticker allen key felt pad screw Hardware Supplied Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting.
- Page 2 Avalon Side Table Assembly Instructions Attach panel [5] to panel [4] using 1x screw (F) and tighten with a allen key (D). Attach panels [2] , [3], [4] and [5] to panel [6] using 8x screws (A) and tighten Attach panel [3] to panel [2] as shown.
- Page 3 Avalon Side Table Assembly Instructions Attach panel [1] to panel [2] and [3] using 4x bolts (B) and tighten Apply 4x felt pads (E) to the bottom of legs as shown. Cover the holes with a screwdriver. of panels [6] using 8x sticker(C) as shown. Lift the furniture into the desired location, do not drag.You’re done,enjoy!
