Master Section DB-25 Connectors

The Master Section audio connections are on the rear panel of the
console as a group of 13 female DB-25 connectors under the Channel
DB-25 Connectors for Channels 9-16.
Each connector uses the common AES59 format for analogue audio
DB-25 connectors, the pinout is shown on the right.

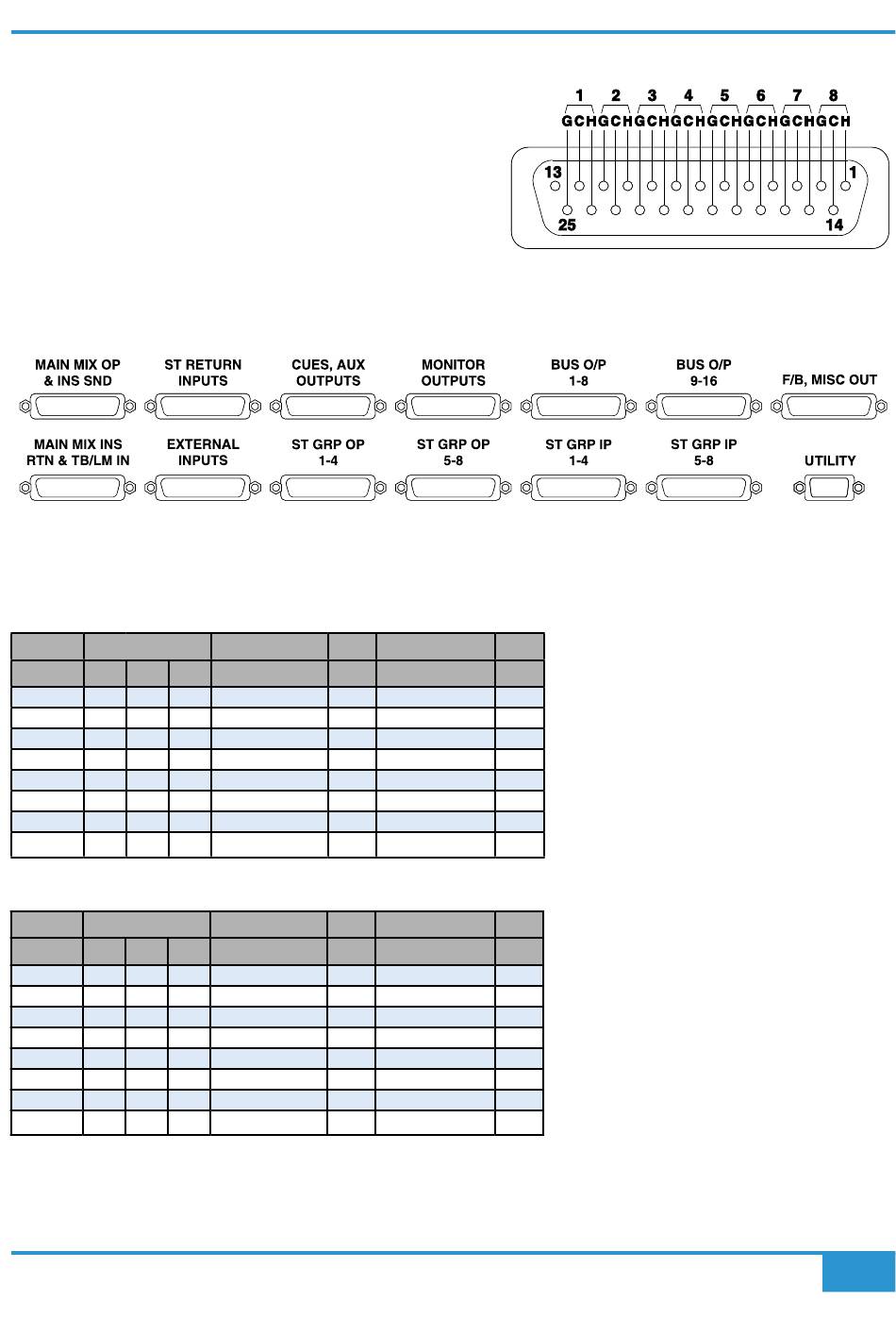

The physical layout of the Thirteen connectors is shown below as
viewed when looking at the rear of the console.
DB-25 Line Level Audio Connector Layout for the Master Section (all female connectors)

Master Section DB-25 Pinouts

**NOTE: Patch Reference on following tables only applies if using suggested standard patch layout on Page 26
Bus O/P (Bus Outputs)
25 Way F D-type
Cct# Hot Cold Scrn
1 24 12
2 10 23
3 21 9
4 7 20
5 18 6
6 4 17
7 15 3
8 1 14
ST GRP IP (Stereo Group Inputs)
25 Way F D-type
Cct# Hot Cold Scrn
1 24 12
2 10 23
3 21 9
4 7 20
5 18 6
6 4 17
7 15 3
8 1 14
ORIGIN Installation Guide
Patch
Bus Output 1-8 Ref**
A33
25 Bus Output 1
A34
11 Bus Output 2
A35
22 Bus Output 3
A36
8 Bus Output 4
A37
19 Bus Output 5
A38
5 Bus Output 6
A39
16 Bus Output 7
2 Bus Output 8 A40
Patch
St Grp IP 1-4 Ref**
B33
25 St Grp IP 1L
B34
11 St Grp IP 1R
B35
22 St Grp IP 2L
B36
8 St Grp IP 2R
B37
19 St Grp IP 3L
B38
5 St Grp IP 3R
B39
16 St Grp IP 4L
B40
2 St Grp IP 4R
Patch
Bus Output 9-16 Ref**
A41
Bus Output 9
A42
Bus Output 10
A43
Bus Output 11
A44
Bus Output 12
A45
Bus Output 13
A46
Bus Output 14
A47
Bus Output 15
Bus Output 16 A48
Patch
St Grp IP 5-8 Ref**
B41
St Grp IP 5L
B42
St Grp IP 5R
B43
St Grp IP 6L
B44
St Grp IP 6R
B45
St Grp IP 7L
B46
St Grp IP 7R
B47
St Grp IP 8L
B48
St Grp IP 8R
Making Connections
