Unpacking and Mounting Hardware
Centre Section Racking

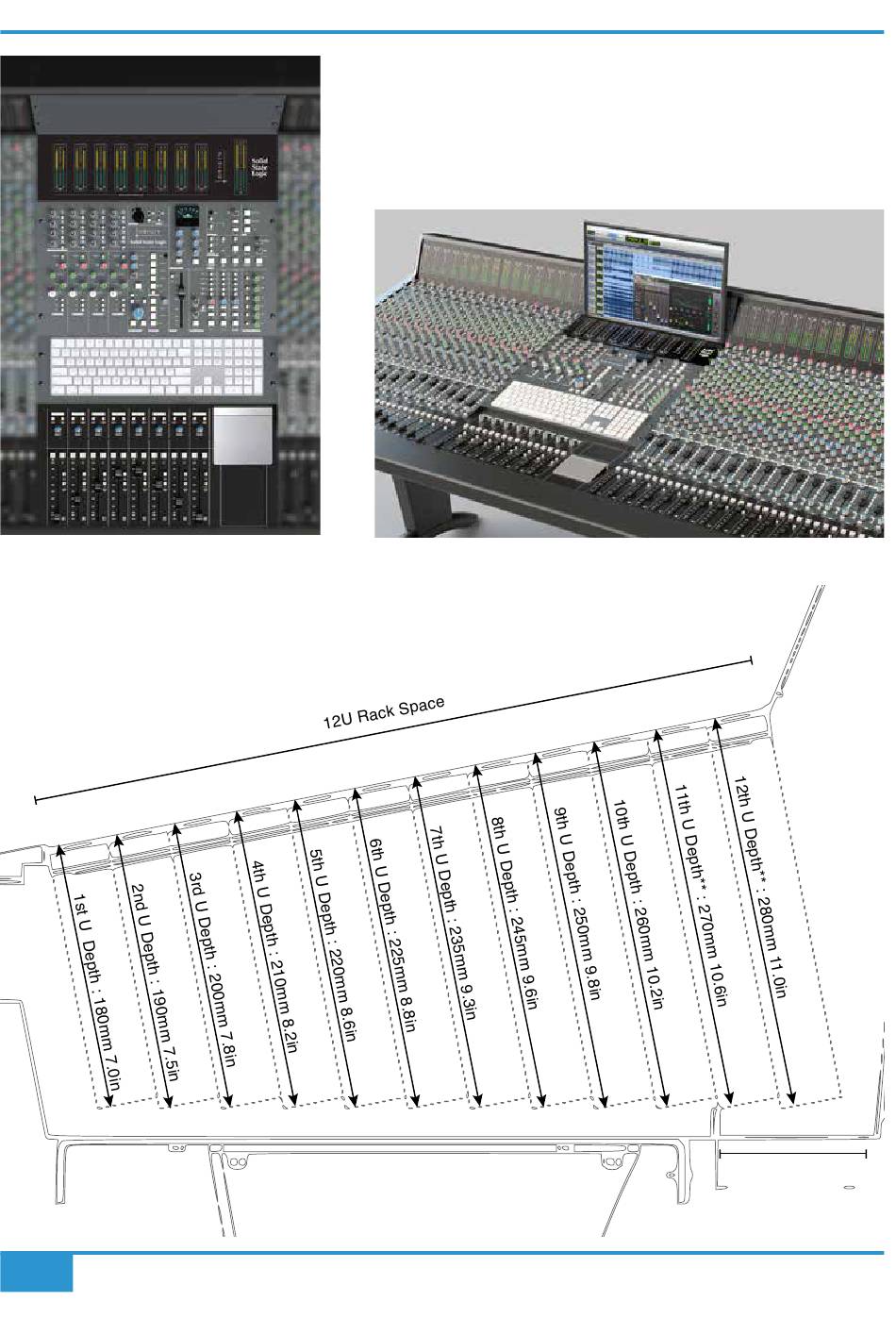

The MAXIMUM** depth for each 1U of the centre section rack space is shown below. The 11th and 12th U of rack
space are angled such that a deep unit could extend through the cable entry space in the rear of the console.
With any rack units that restrict air flow through the centre section, ventilation rack panels must be used to keep
airflow through the Master Section.
**
MAXIMUM depth available includes cables, connectors and cable bend radiuses.
16
Alternate Meter Layout
As the centre meters are also built as a 3U panel, they can also be moved
into the upper 3U in the Centre Section. In the images shown, the blank
3U panel is moved into the overbridge to keep the centre meters visible if
the overbridge space is likely to be obscured (for example by a flat screen
monitor, see image below)
Cable Entry
100mm x 430mm
4.0in x 17.0in
