UVinex Standard and High Output Systems
Operating Manual & Specifications
Read the entire instructions prior to assembling and operating
The ONLY UV Approved for Use in Savio Skimmerfilters

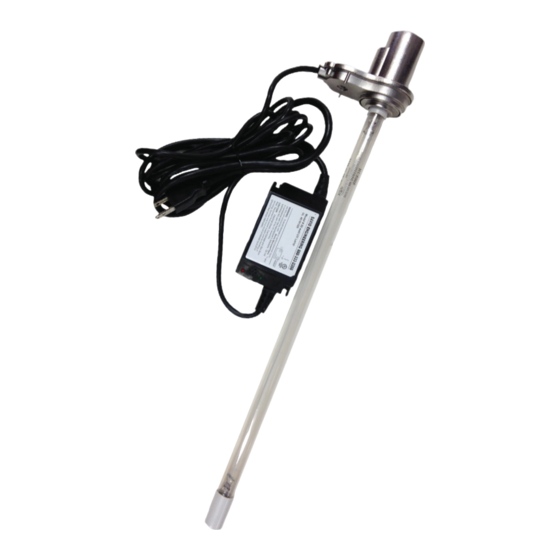

Savio UVinex™ systems provide unparalleled water
clarity for your pond. UVinex™ offers a safe, chemical-free
solution for eliminating green water. By adding a UVinex™
system you'll also enhance the filtration capabilities of your
Savio Skimmerfilter.®
Standard High Output
SUV050A
SUV026A
SUV018A
_____________________________
Read entire instructions prior to assembly and operation
SUV2800HO
SUV3500HO
SUV5500HO
A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Savio Uvinex Standard
Summary of Contents for Savio Uvinex Standard
- Page 1 UVinex Standard and High Output Systems Operating Manual & Specifications Read the entire instructions prior to assembling and operating The ONLY UV Approved for Use in Savio Skimmerfilters Savio UVinex™ systems provide unparalleled water clarity for your pond. UVinex™ offers a safe, chemical-free solution for eliminating green water.
- Page 2 UVinex Components The UVinex System should come fully-assembled (do not disassemble). Examine all parts while unpacking. Carefully inspect UVinex Bulb for damage incurred during shipping. If the unit appears damaged, contact the dealer you purchased it from for a replacement. Do not use it if damage is evident. Standard High Output RU1805 -18 Watt...
-
Page 3: Installation
Installation If installing a single UV, you may use either the left or right Skimmer UV mount on the Standard Skimmerfilter. If using the compact Skimmer Filter only use the center UV mount. If using a single UV, a Baffle Block can be used to prevent water movement through the unused UV chamber. -
Page 4: Lamp Replacement
Lamp Replacement Standard Ru1805 RU2605 RU5005 High Output RU2800HO Remove Uvinex Clarifier from the SkimmerFilter RU3500HO Wipe any water or pond debris from the unit Unscrew RU119 Junction Screws and remove RU120 Junction Cap Top RU5500HO Unplug transformer socket from Uvinex 4-prong UV bulb Loosen (do not remove) RU122 Screw Ring until bulb moves freely Gently twist old bulb and remove from RU121 Junction Cap –... -
Page 5: Maintenance
Specs and Maintenance Recommended Flow Rates For water clarification, the pump needs to flow the total volume of the pond water past the UV no less than every two hours. In full-size Skimmerfilters® two UVs may be used for increased clarification. 18 Watt UVinex™... -
Page 6: Important Safety Instructions
UV lamps are made from glass and must always be handled with caution. • Closely supervise children around all pond equipment. • The Savio UVinex™ System is for use solely in Savio Skimmerfilters®. Do not use it in any other environment. -
Page 7: Troubleshooting
Troubleshooting Faults Possible Causes Remedies a) UV is not plugged in a) Connect UV plug to a working outlet b) GFCI switch (ground fault b) Reset GFCI. If this occurs often consult an circuit interrupt) has tripped UVinex™ electrician c) Domestic fuse has blown System not c) Replace the fuse or the reset circuit breaker. -
Page 8: Warranty
This warranty does not cover any faults caused by improper use, installation and handling of the device or as a result of wear and tear. Savio Engineering does not assume liability for consequential damage caused by the failure of the product.
