Installing the Rails in the 4-Post Rack

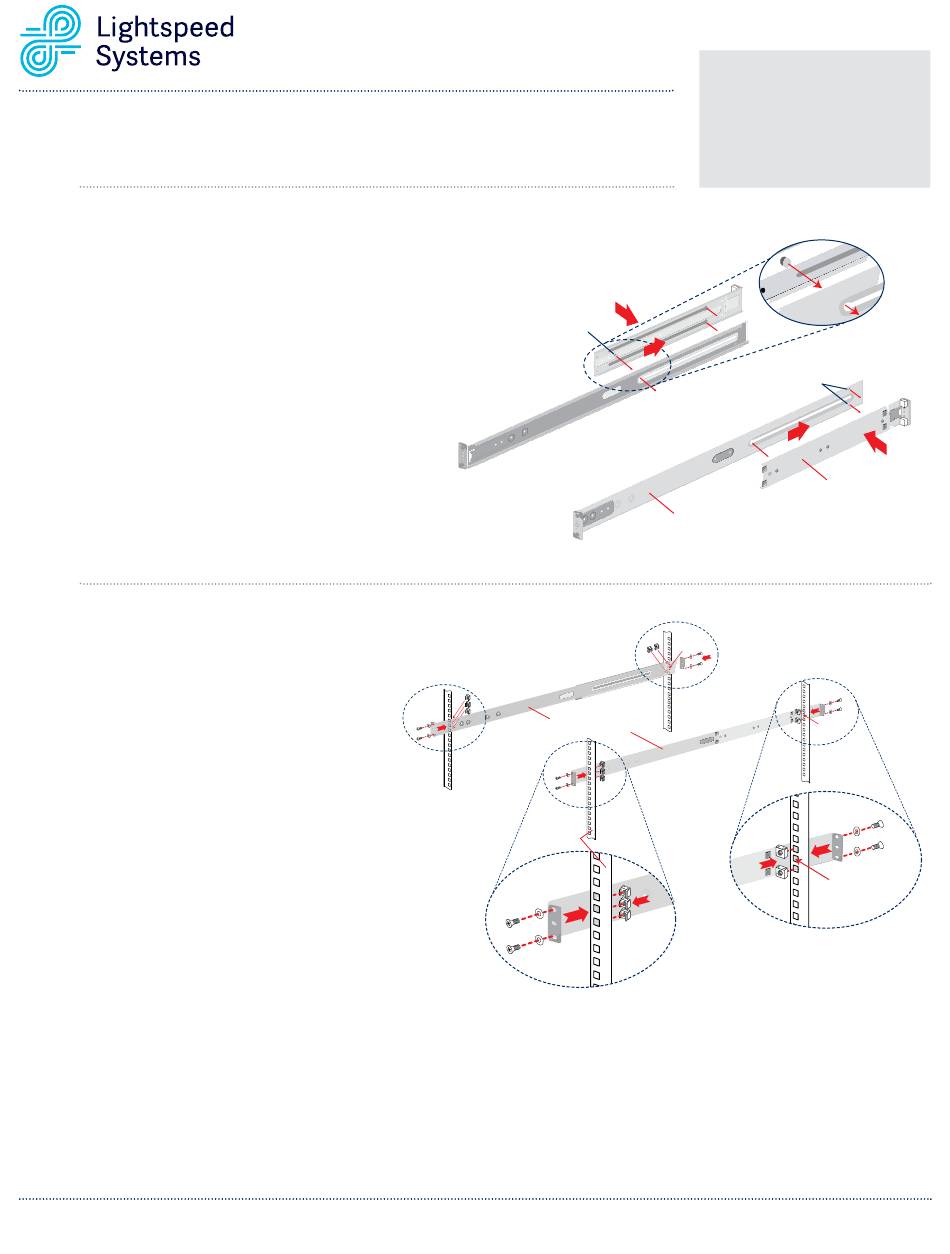

Locate the mounting hardware and rack rail assemblies shown below
Step 1
Locate the two adjustable rack rail assemblies.
• Insert the tabs on the front section of the
adjustable rack rail assembly through the
openings in the rear sections of the
assemblies.
• Check to make sure the adjustable rack rail
assemblies are connected correctly, then
slide the front section forward and the rear
section back to keep them from coming
apart. These assemblies adjust to
accommodate different rack depths.
Step 2
• Insert a cage nut into each of the square
holes in the rack you will be using as
shown (three in the front and two
in the rear). They click into place.
• Attach the rack rail assemblies to the
rack using two M5x 12 flat head screws
and cone washersin the front and back.
The convex side of the cone washers face
toward the rack.
• Make sure the rack rail assemblies and
screws are aligned in the rack not only in
the front and back, but are level in height
on the left and right sides for proper
alignment for appliance installation.
Lightspeed Rocket Hardware Installation Guide
Rack bracket tab
Empty
hole
Adjustable rack rail
assemblies
4-post rack
NOTE: The installation procedures below
are for use with the rails and hardware
provided in your ship kit. If different
style rails are being used, or if your rack
requires different hardware, refer to the
instructions provided with your rail's or
rack's ship kit.
Rack bracket tabs
Rear section of
the adjustable
rack rail assembly
Front section of
the adjustable
rack rail assembly
Empty
hole
Empty
hole
6
