Installing the Appliance in the 2-Post Rack

• Align the inner fixed chassis rails on the appliance with the fixed chassis rack rail assemblies previously
installed in the rack.
• Carefully slide the appliance into the rack rails until you hear the locking tabs on the chassis rails
click into place.
• Push the appliance all the way into the rack until it stops.
• Secure the unit in the rack by inserting and tightening two 10-32 x 3/4" Phillips pan head screws,
one on each side.

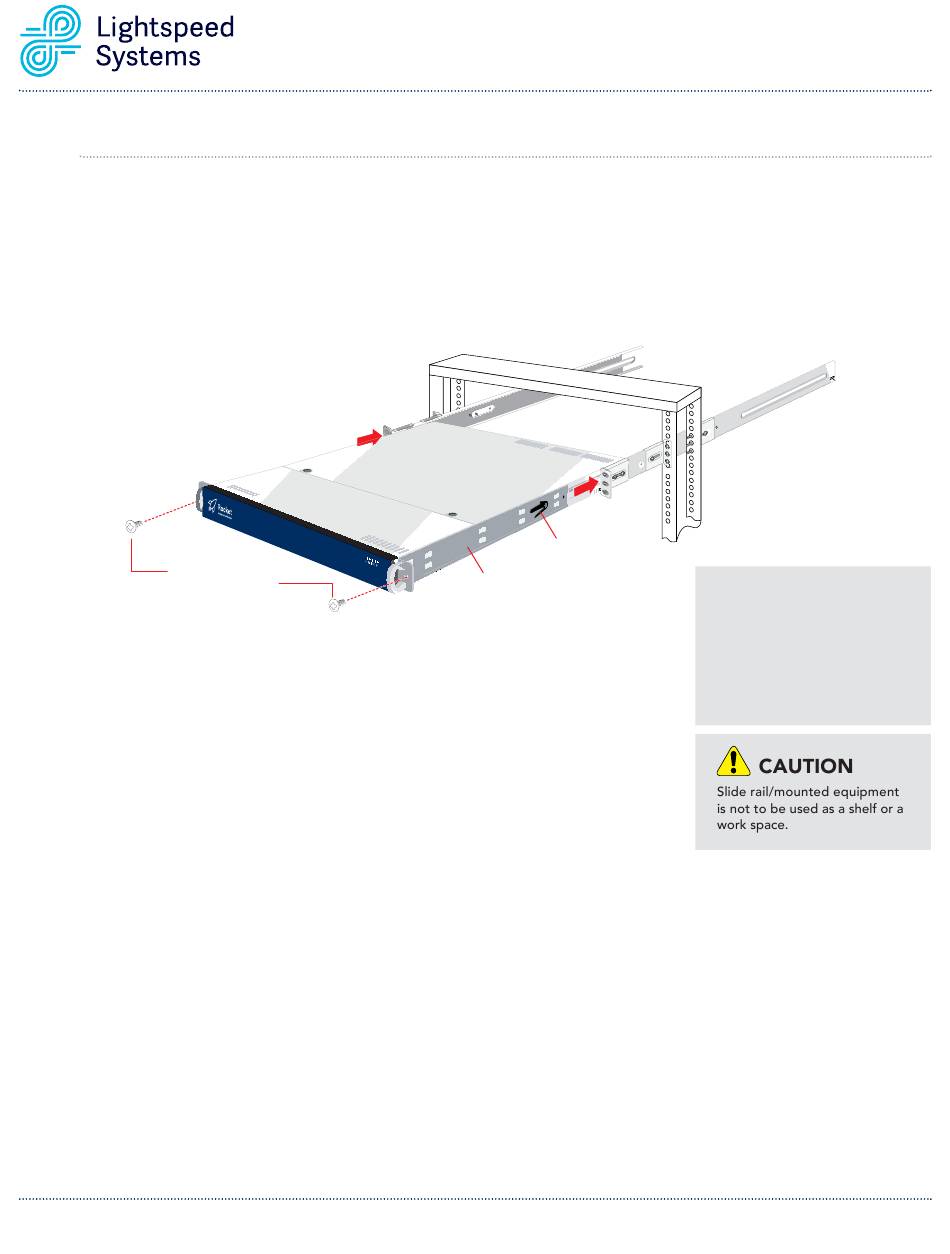

Two 10-32 x 3/4"
Phillips flat-head screws
Lightspeed Rocket Hardware Installation Guide
*
Locking tab
Fixed chassis rail
(attached prior to shipment)
NOTE: When removing the
appliance from your rack, you
will need to press down on the
locking tab in order to release it
from the rack. Carefully slide it
out supporting the unit on both
sides at all times.
