Lightspeed Rocket
Hardware Installation Guide
1800 19th Street
/
Bakersfield, CA 93301
/
Tel: 661.716.7600
/
Toll Free: 877.447.6244
/ www.lightspeedsystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lightspeed Rocket and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lightspeed Systems Lightspeed Rocket

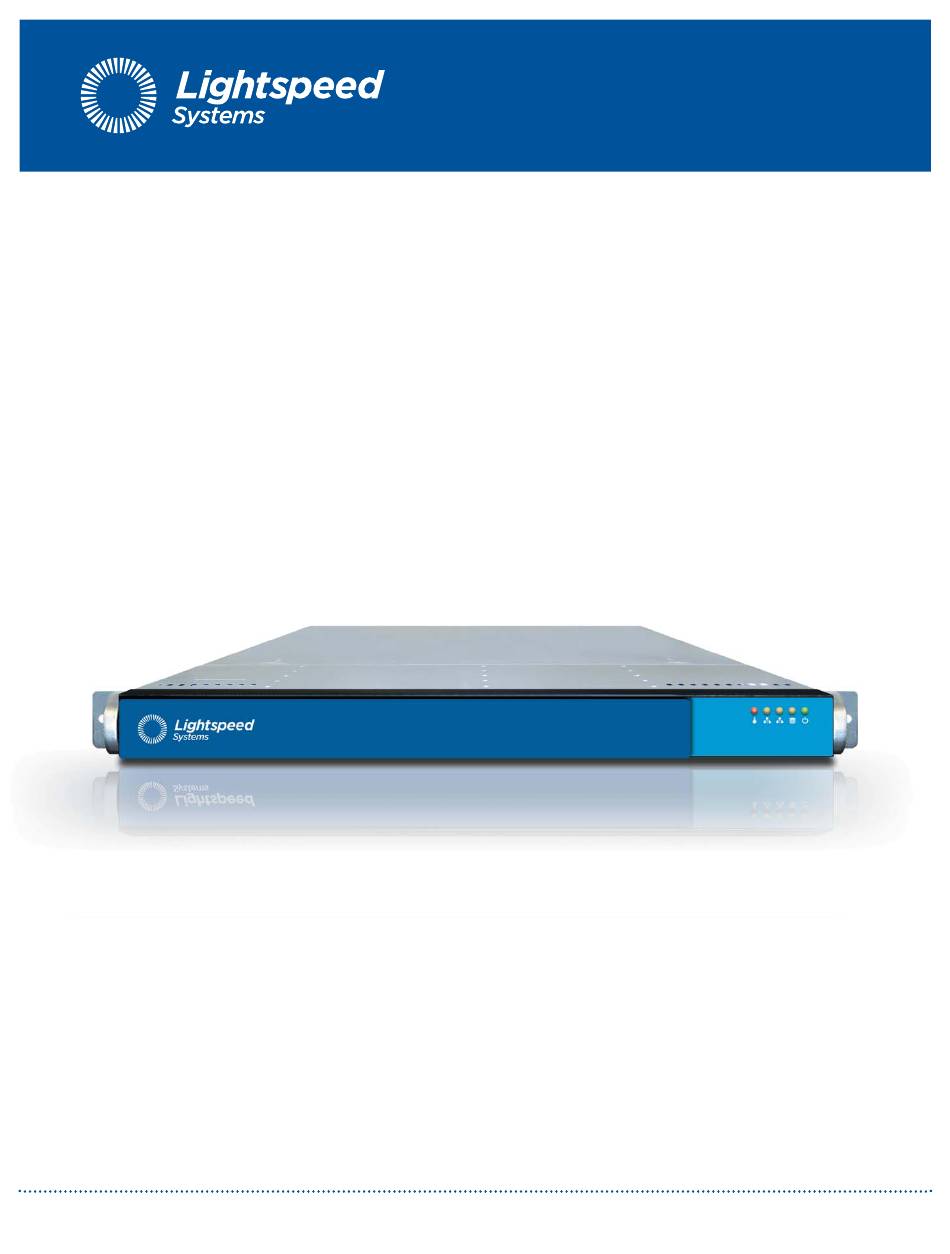

  • Page 1 Lightspeed Rocket Hardware Installation Guide 1800 19th Street Bakersfield, CA 93301 Tel: 661.716.7600 Toll Free: 877.447.6244 / www.lightspeedsystems.com...
  • Page 2: Table Of Contents

    2-Post Rack Installation ........... Section 7A Lightspeed Rocket Email Manager-R Rear Panel Connections ..... Section 7B Lightspeed Rocket Web Access Manager-R Rear Panel Connections .
  • Page 3: Safety Notice And Warnings

    1. Safety Notice and Warnings FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 4: Electrical And General Safety Guidelines

    3. Electrical and General Safety Guidelines CAUTION This appliance is intended for installation in restricted areas only. Initial setup and maintenance should be performed by qualified personnel. CAUTION Power down the appliance following the operating system’s proper power down procedure from the front panel.
  • Page 5 3. Electrical and General Safety Guidelines (continued) WARNING Disconnect the power supply at the circuit breaker before accessing any components. Turning off the system power supply switch does not reduce the risk of electrical shock from the power supply terminal block. CAUTION •...
  • Page 6: Unpacking The Appliance

    4. Unpacking the Appliance Before you begin: Verify that the ship kit includes two power cords, the screws, cone washers and cage nuts (shown below) that you will need to install the appliance in your rack, the 4-post and/or 2-post rack rail bracket assemblies. Hardware Kit: screws, cone washers and cage nuts NOTE: Use the hardware...
  • Page 7: Site Preparation

    5. Site Preparation Setup location, rack and appliance precautions • Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
  • Page 8: 4-Post Rack Installation

    NOTE: The following installation procedures for 6a, 4-post rack and 6b, 2-post rack are for use with the rails and hardware provided 6A. 4-Post Rack Installation in your ship kit. If different style rails are being used, or if your rack requires different hardware, refer to the instructions provided with Unpack the appliance and locate the mounting hardware your rail’s or rack’s ship kit.
  • Page 9: 2-Post Rack Installation

    NOTE 1: The following installation procedures for 6B, are for use with the rails and hardware provided in your ship kit. If different 6B. 2-Post Rack Installation style rails are being used, or if your rack requires different hardware, refer to the instructions provided with your rail’s or rack’s ship kit. Unpack the appliance and locate the mounting hardware NOTE 2: When removing the appliance from the 2-post rack (Step...
  • Page 10: Lightspeed Rocket Email Manager-R Rear Panel Connections

    Connect the other end of the yellow Ethernet cable into an available switch port on your Local Area Network. This port will require Internet access. Step 3 Please review the latest Lightspeed Rocket Email Manager Product Manual on the Lightspeed Wiki at (http://wiki.lightspeedsystems.com/LSREM). Step 4 Connect the power cords.
  • Page 11: Lightspeed Rocket Web Access Manager-R Rear Panel Connections

    It is very important that ONLY the Management NIC is connected at this time. DO NOT connect the External or Internal NIC cards until instructed to do so by a Lightspeed Support Engineer. Step 3 Please review the latest Lightspeed Rocket Web Access Manager Product Manual on the Lightspeed Wiki at (http://wiki.lightspeedsystems.com/LSRWAM). Step 4 Connect the power cords.
  • Page 12: Lightspeed Rocket Web Access Manager-Rq Rear Panel Connections

    It is very important that ONLY the Management NIC is connected at this time. DO NOT connect the External or Internal NIC cards until instructed to do so by a Lightspeed Support Engineer. Step 3 Please review the latest Lightspeed Rocket Web Access Manager Product Manual on the Lightspeed Wiki at (http://wiki.lightspeedsystems.com/LSRWAM). Step 4 Connect the power cords.
  • Page 13: Lightspeed Rocket Web Access Manager-1Gb Rear Panel Connections

    It is very important that ONLY the Management NIC is connected at this time. DO NOT connect the External or Internal NIC cards until instructed to do so by a Lightspeed Support Engineer. Step 3 Please review the latest Lightspeed Rocket Web Access Manager Product Manual on the Lightspeed Wiki at (http://wiki.lightspeedsystems.com/LSRWAM). Step 4 Connect the power cords.
  • Page 14: Lightspeed Rocket Web Access Manager-10Gb Rear Panel Connections

    It is very important that ONLY the Management NIC is connected at this time. DO NOT connect the External or Internal NIC cards until instructed to do so by a Lightspeed Support Engineer. Step 3 Please review the latest Lightspeed Rocket Web Access Manager Product Manual on the Lightspeed Wiki at (http://wiki.lightspeedsystems.com/LSRWAM). Step 4 Connect the power cords.
  • Page 15: Lightspeed Total Traffic Control Rocket-R Rear Panel Connections

    7E. Lightspeed Total Traffic Control Rocket-R Rear Panel Connections Power Cords Mouse Port Network Interface Connectors Management Port Internal External Ethernet Cable Local Area Network Power Good LEDs AC Power Inlets VGA Port Power Supply Locks COM Port Keyboard Port USB Ports Step 1 Connect one end of the yellow Ethernet cable into the Ethernet port labeled MANAGEMENT.
  • Page 16: End User License Agreement (Eula) And Front Panel Operation

    Front Panel Operation Power Button By powering on the appliance you agree to all terms and conditions included in the End User License Agreement (EULA) located at eula.lightspeedsystems.com Power on the appliance • Remove the front bezel by pressing in on the right side of the bezel to release it (see the diagram in Step 3 on page 8 or 9 for the location of the release tab).
  • Page 17: Ship Carton Packing/Repacking Instructions

    Ship Carton Packing/Repacking Instructions PLEASE HOLD ON TO THESE INSTRUCTIONS AND THE BOX To ensure the Lightspeed Systems server a safe return, please follow these steps. Step 1 Bottom foam Side foam sections • Open up the original shipping box.
  • Page 18 1800 19th Street Bakersfield, CA 93301 Corporate Tel: Voice: 661.716.7600 Fax: 661.716.8600 Toll Free: 877.447.6244 Support Phone: 800.444.9267 www.lightspeedsystems.com Lightspeed Systems Europe: Whitegates Alexander Lane Shenfield Essex CM15 8QF Tel: 01277.240.630 Fax: 01277.240.641 www.lseurope.com Copyright ©2010-2011 Lightspeed Systems, Inc. All rights reserved.
