Summary of Contents for Fenix Classique F1 70

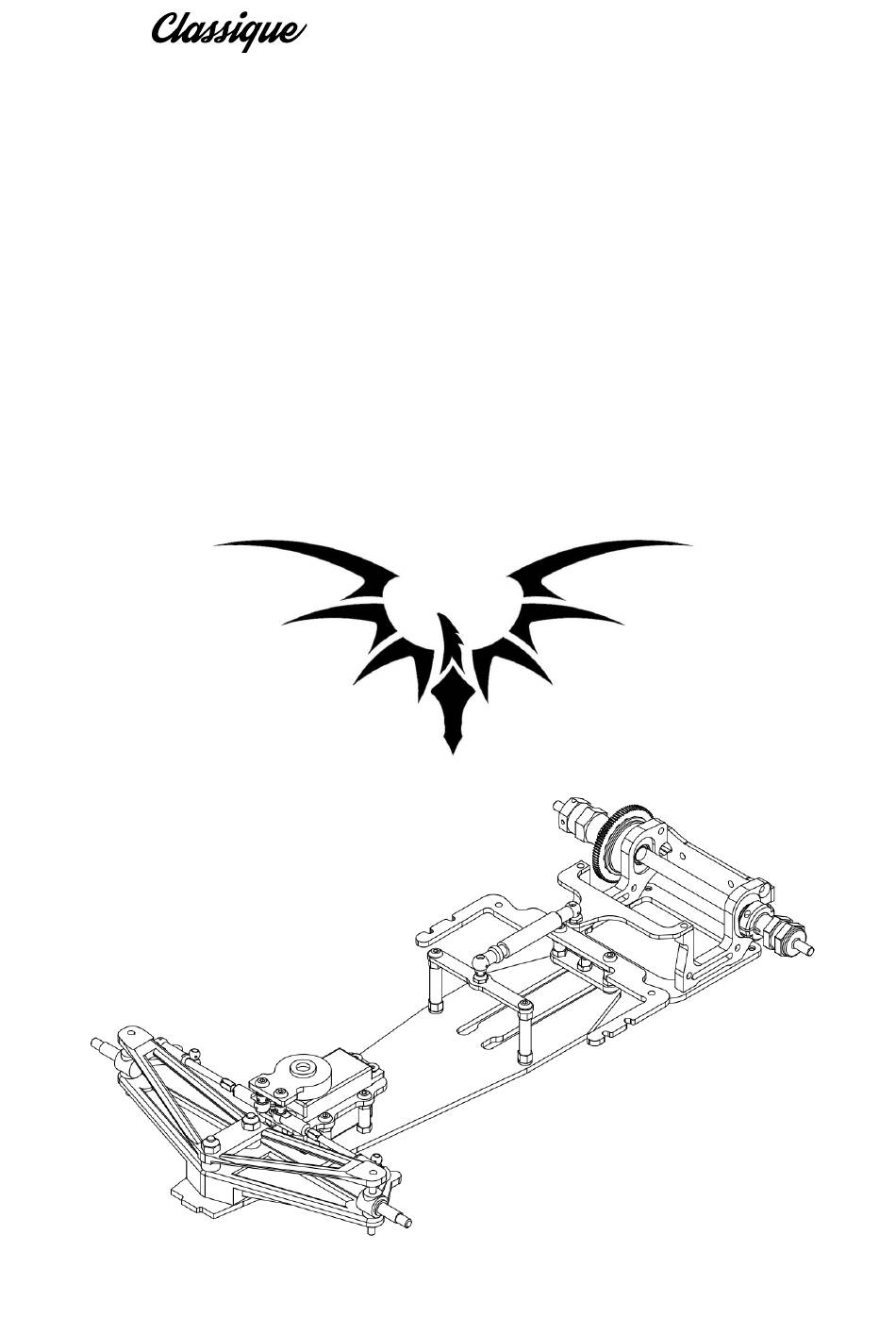

- Page 1 Fenix Fenix F1 70 Fenix F1 70 Rev. 0.6 May 2020 Rev. 0.0...
- Page 2 We have made every effort to make these instructions as easy to understand as possible. However, if you have any difficulties, problems, or questions, please do not hesitate to contact the Fenix support team at racing@fenixwaterjet.com . Also, please visit our Web site at www.
- Page 3 Fenix Fenix F1 70 Bag A Main chassis Rev. 0.0...
- Page 4 Fenix Fenix F1 70 Start with the HW026 M3x12 countersunk and insert it in the central hole of the “T-bar”, slide the o-ring over it. Insert the 2 HW004 M3x10 countersunk in the side holes. Slide the 2 FX0063 1.5mm shims over.
- Page 5 Fenix Fenix F1 70 Bag B Steering ass.y Rev. 0.0...
- Page 6 Fenix Fenix F1 70 Servo is not included, F1-70 need a low profile servo. Note the dimension of the servo suggested Take the HS2 servo holder. Note: the flat area goes to the front of the model Insert the low profile...
- Page 7 Fenix Fenix F1 70 Fix the 4 x FX1049 15mm post to the chassis using HW007 M3x8 countersunk. Install servo group using 4 x HW003 M3x8 Button Open Bag B1 Steering hubs. Use 1 x HW0014 M2x 6 screw 19804495 uniball.
- Page 8 Fenix Fenix F1 70 Bag C Motor holder Rev. 0.0...
- Page 9 Fenix Fenix F1 70 Using the HW012 M3x6 countersunk screw, fix the FX- FU48 male stud to the F2-4 shock holder Assembly the motor holders to the chassis using 4 x HW012 M3x6 countersunk. Fix the F2-5 wing holder to the holders using 4 x HW008 M3x6 button.
- Page 10 Fenix F1 70 Assembly Notes Differential: Please refer to proper manual for Fenix Sphere diff or Gear diff, according your version of F1-70. Chassis: Fenix Classique F1-70 is available with 3 different chassis. Tamiya F103/F104 and Xray X1 are available only as Transformation kit.
