INTRODUCTION
The following information contains operating instructions for the
Sensus FieldLogic® Hand-Held Device [HHD], which is primarily
designed to collect and store utility meter readings with built-in
capability for expanded uses. The HHD interfaces to a personal
computer [PC] through Wi-Fi® or an ethernet-enabled charging
stand used for uploading pre-programmed meter reading route
information. The computer must be equipped with Sensus
FieldLogic System software.
The Model FL6501 accepts meter reading data entered manually
on a built-in keypad or electronically through the TouchRead
System AutoGun, or wirelessly with the CommandLink or FMT.
AutoGun options include cable-connected and RF (no cable
required) styles.
The Model FL6502 includes all features of the Model FL6501,
plus it can read Sensus RadioRead
[MXUs].

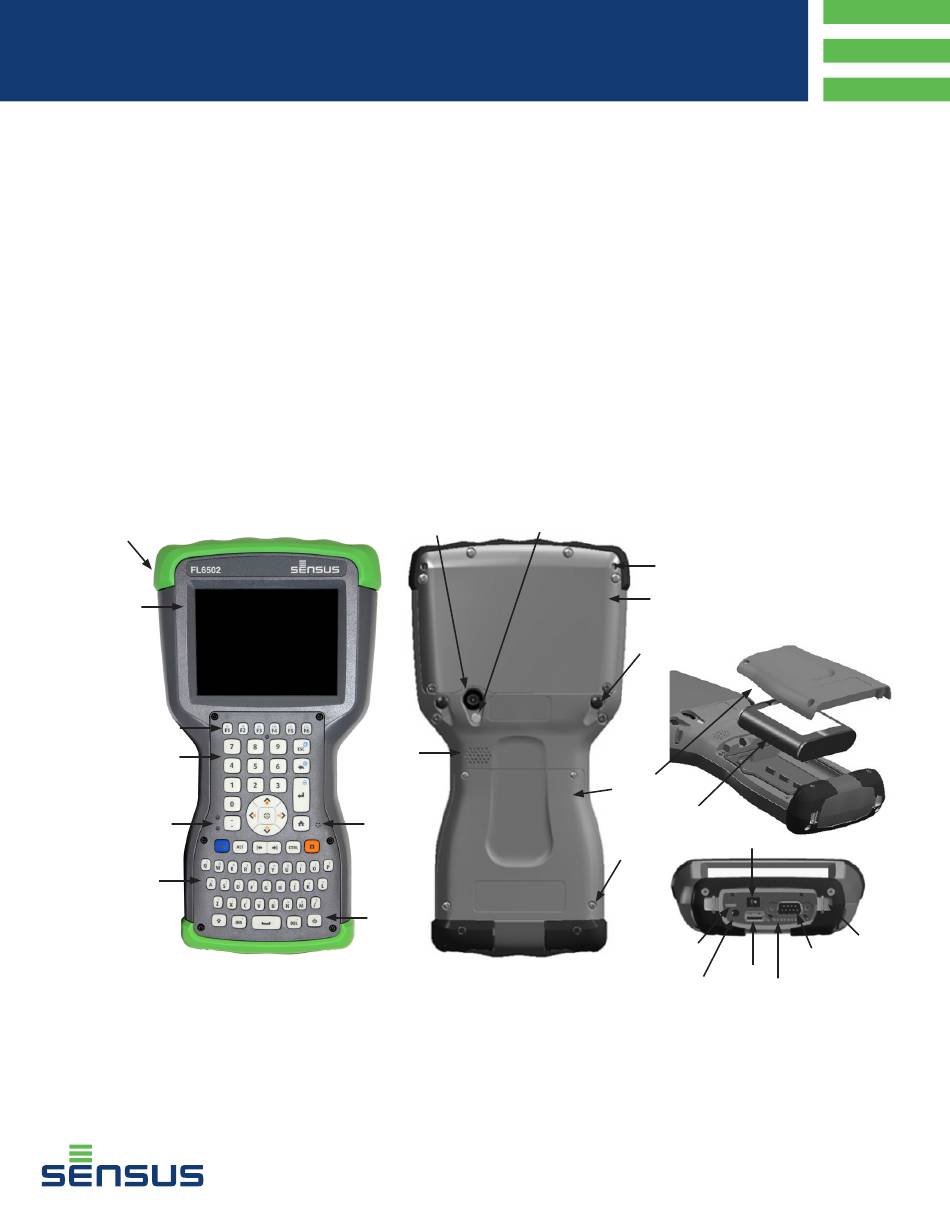

Top Bumper
Touchscreen
Function Keys
Numeric
Keyboard
LED
Indicators
QWERTY
Keyboard
®
Meter Transceiver Units
®
Optional
Camera Lens
Speaker
Microphone
Power
Button
Features include:
•
Ergonomic design with a transflective LCD screen for ease
of viewing
•
A backlit keypad for additional illumination in areas with
insufficient lighting
•
Bluetooth and Wi-Fi enabled
•
A rechargeable, self-contained Lithium Ion battery pack
•
Optional integrated GPS, camera, and barcode scanner
•
A weather-resistant, high impact, UV-stabilized plastic
watertight case
•
User friendly controls and operation
Optional Camera Flash
and Flashlight Window
Stylus/Tether
Attachment
Point
Expansion Door
Hand Strap
Attachment
Point
Battery
Compartment
Door
Battery Pack
Battery Door
Screws
Micro
USB
Port
Microphone/
Speaker Jack
12-24V DC Jack
Hand Strap
Attachment
9-pin Serial
Port Point
USB Port
Docking Pin
Contacts
