- Page 1 ACCUMAG Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
- Page 2 This document contains proprietary information. It is to be used only for the purpose for which it is intended. Information in this document is subject to change without notice and does not represent a commitment on the part of Sensus. No part of this publication may be reproduced, transmitted, stored in a retrieval system, or granulated into any language in any form by any means, without the written permission of Sensus.
-
Page 3: Table Of Contents
3.4.1 IP67 housing (compact and field version) ..................23 3.4.2 IP68 housing (compact version) ....................... 25 4, S HAPTER TART 4.1 Connecting the battery ..........................27 4.2 accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... - Page 4 HAPTER ERVICE 6.1 Spare parts availability ..........................31 6.2 Availability of services ..........................31 7, T HAPTER ECHNICAL 7.1 Dimensions and weights ..........................33 WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
-
Page 5: Chapter 1, Safety Instructions
Remove the battery from device before returning to the manufacturer for service or warranty reasons. • Dispose of battery packs in accordance with local regulations; where possible, recycle used batteries. accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... - Page 6 Chapter 1: Safety Instructions WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
-
Page 7: Chapter 2, Installation
Compact version (the signal converter is mounted directly on the measuring sensor) in aluminium (IP67) or polycarbonate (IP68) housing. • Remote version (measuring sensor with connection box and a signal converter in a remote (field) housing). accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... - Page 8 Chapter 2: Installation Figure 2-2: Device Versions 1. Compact version (aluminium housing, IP 67) 2. Compact version (polycarbonate housing, IP 68) 3. Remote version WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
-
Page 9: Nameplate
Do not lift the device by the signal converter housing. • Do not use lifting chains. • To transport flange devices, use lifting straps. Wrap these around both process connections. accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... -
Page 10: Pre-Installation Requirements
• Do not expose the signal converter to intense vibration. The flow meters are tested for a vibration level in accordance with IEC 68-2-64. WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... -
Page 11: Inlet And Outlet
Figure 2-5: DN25...300 1. Inlet: > 0 DN 2. Outlet: > 0 DN Figure 2-6: DN350...600 1. Inlet: > 5 DN 2. Outlet > 2DN accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... -
Page 12: Vibration
Mount sensor either with converter aligned upwards or downwards. • Install sensor in line with the pipe axis. • Pipe flange faces must be parallel to each other. WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... -
Page 13: T-Section
2.6.5 T-section Figure 2-9: Distance after T-sections 1. DN25...300: > 0 DN 2. DN350...600: > 10 DN 2.6.6 Magnetic field Figure 2-10: Avoid magnetic fields accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... -
Page 14: Open Discharge
Chapter 2: Installation 2.6.7 Open discharge Figure 2-11: Installation before an open discharge 2.6.8 Bends Figure 2-12: Installation in bending pipes WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... -
Page 15: Control Valve
Chapter 2: Installation Figure 2-13: Installation in bending pipes 2.6.9 Control valve Figure 2-14: Recommended installation: before control valve accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... -
Page 16: Air Venting
Chapter 2: Installation 2.6.10 Air venting Figure 2-15: Air Venting 1. > 5 m 2. Air ventilation point 2.6.11 Pump Figure 2-16: Recommended installation: after pump WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... -
Page 17: Ip68

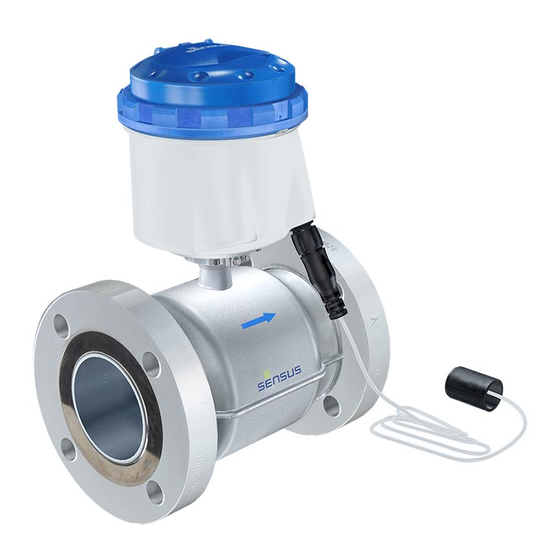

Chapter 2: Installation 2.6.12 IP68 The accuMag 3000 flow sensor is rated IP68 (NEMA 4X/6P). It is suitable for submersion in flooded measurement chambers and for subsurface installation. The compact accuMag 070 signal converter is available in: • an aluminium housing suitable for IP66/67, NEMA 4/4X/6 •... -
Page 18: Torques And Pressures
8 × M 16 PN 16 8 × M 16 PN 10 / PN 16 8 × M 20 PN 10 12 × M 20 WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... - Page 19 12 x 7/8" 12 x 7/8" 12 x 1" 16 x 1" 16 x 1 1/8" 20 x 1 1/8" 20 x 1 1/4" accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
-
Page 20: Mounting Of The Field Housing, Remote Version
1. Fix the signal converter to the pipe. 2. Fasten the signal converter using standard U-bolts and washers. 3. Tighten the nuts. 2.8.2 Wall mounting No special requirements. WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... -
Page 21: Mounting Of The Ip68 Version
1. Before closing the case of the converter, ensure that all surfaces in contact with the seals are clean. 2. Position the upper part of the case and tighten the lock ring. 3. Use the wrench to tighten the ring as shown. accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903... - Page 22 Chapter 2: Installation WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
-
Page 23: Chapter 3, Electrical Connections
Look at the device nameplate to ensure that the device is delivered according to your order. Check for the correct supply voltage printed on the nameplate. accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903... -
Page 24: Grounding
DN25...300: grounding without grounding rings. The flow sensor is equipped with a reference electrode. CAUTION! DN350...600: apply grounding rings if required. For example in case of metal pipes with internal coating and non-conductive pipelines. WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... -
Page 25: Connection Of The Signal Cable
3. 3 Brown + white + violet cable, used for electrode signals (terminals 1, 2, 3) 4. 4 Drain wires Table 3-1: Dimensions of cable inch accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... - Page 26 1. Connect drain wires under screw. 2. Connect shielding under clamp. a. Prepare appropriate cable lengths as shown. b. Connect the wires as shown in the following table. WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
-
Page 27: Connection Of The Output Cable
Yellow No function Drain wires Screws Shielding Connection of the output cable 3.4.1 IP67 housing (compact and field version) Figure 3-5: Removing side cap accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... - Page 28 < 100 Hz; I < 10 mA; U: 2.7...24 VDC (P < 100 mW) • Status output passive: I < 10 mA; U: 2.7...24 VDC (P < 100 mW) WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
-
Page 29: Ip68 Housing (Compact Version)
< 100 Hz; I < 10 mA; U: 2.7...24 VDC (P < 100 mW) • Status output passive: I < 10 mA; U: 2.7...24 VDC (P < 100 mW) accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... - Page 30 Chapter 3: Electrical Connections WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
-
Page 31: Chapter 4, Start - Up
5. Verify the display lights up. 6. Replace the cover. CAUTION! Make sure that the battery cable is not jammed by the cover. 7. Tighten the 4 bolts. accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com... - Page 32 Two interchangeable types of batteries with different capacities are available. Figure 4-2:Batteries and battery holders 1. Single D-cell battery (without / in holder) 2. Dual D-cell battery (without / in holder) WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
- Page 33 3. Reset button (only accessible after removing the housing) 4. Flow direction and counter settings 5. Measured value and measuring unit 6. Optical key to navigate through the menu settings accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
- Page 34 The display shows: ond. 1. all possible symbols for 9 seconds 2. blank screen for 1 second " 00000000" for 1 second 4. main screen WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
- Page 35 The manufacturer offers a range of services to support the customer after expiration of the warranty. These include repair, maintenance, technical support and training. For more information, please contact your local sales office. accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903...
- Page 36 Chapter 6: Service WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
- Page 37 (IP68) b = 161 mm / 6.3" Total height = H + a The value may vary depending on the used cable glands accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
- Page 38 Approx weight [inches] [lb] 5.91 5.83 4.33 1½ 5.91 4.92 7.87 7.05 5.98 7.87 8.03 7.50 9.84 9.49 9.00 9.84 10.55 10.00 11.81 11.69 11.00 WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
- Page 39 13.78 14.25 13.50 15.75 16.30 16.00 19.69 18.78 19.00 27.56 20.67 21.00 31.50 22.95 23.50 31.50 24.72 25.00 31.50 26.97 27.50 31.50 31.38 32.00 accuMAG Meter Quick Guide Software v4.1.2 WQG-10004-01 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
- Page 40 Chapter 7: Technical Data WQG-10004-01 accuMAG Meter Quick Guide Software v4.1.2 | sales@mvandc.com | Phone: 877.566.3837 | Fax: 925.407.2903 www.mvandc.com...
