Sensus iPERL Quick Manual

WQG-10007-01
How to Read the iPERL
Quick Guide

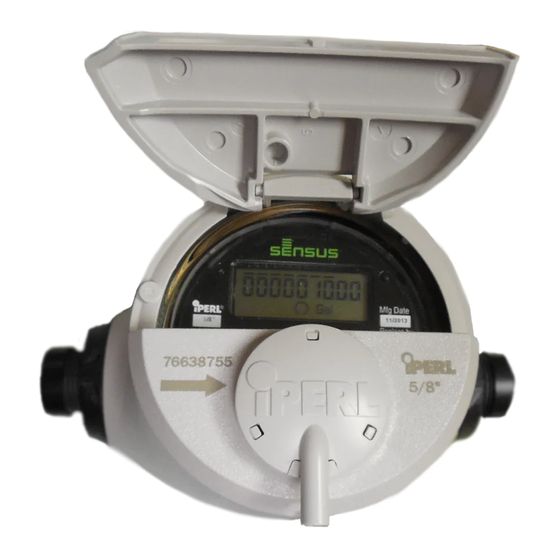

THE SENSUS IPERL SYSTEM
The iPERL water management system offers unparalleled
low flow accuracy with high flow durability. Innovative
magnetic technology allows for the capture of previously
unmeasured low flow, and drives additional revenue for
the utility. The iPERL system maintains its accuracy over a
20-year lifetime through its 100% lead-free design with no
moving parts. Issues experienced in the field are quickly
identified through the use of AMR/AMI connectivity. The
iPERL also provides the ability to report diagnostics and
alarms.
ELECTRONIC REGISTER
The high resolution 9-digit hermetically sealed electronic
register with LCD display was designed to eliminate
problems resulting from dirt, lens fogging and moisture
contamination in pit set environments. The iPERL also
provides built-in tamper protection. The tempered glass
register cover displays readings with the AMR/AMI digits
highlighted. Direction of flow and units of measure are also
easily readable on the register display. The iPERL register
features an AMR/AMI resolution and unit of measure that
are fully programmable, and integral customer data logging
compatible with UniPro software tools. The large, easy
to read display also includes battery life, empty pipe and
forward/reverse flow indicators.
REGISTER DISPLAY
AMR Digit Bar (4 to 8 Digits): The AMR digit bar shows
which digits will be reported when the meter is read through
the communications interface.
Battery Icon: The Battery Icon will turn on when the battery
is low or the meter is near the end of life.
Flow Icon:
Flow Condition
Positive Flow
Negative Flow
Low Flow Cut off
Empty Pipe
Unit of Measure: Gallon (GAL), Cubit Feet (FT³), Cubic
Meter (M³)
Display
Circle with +
Circle with -
No icon displayed
Empty Circle
