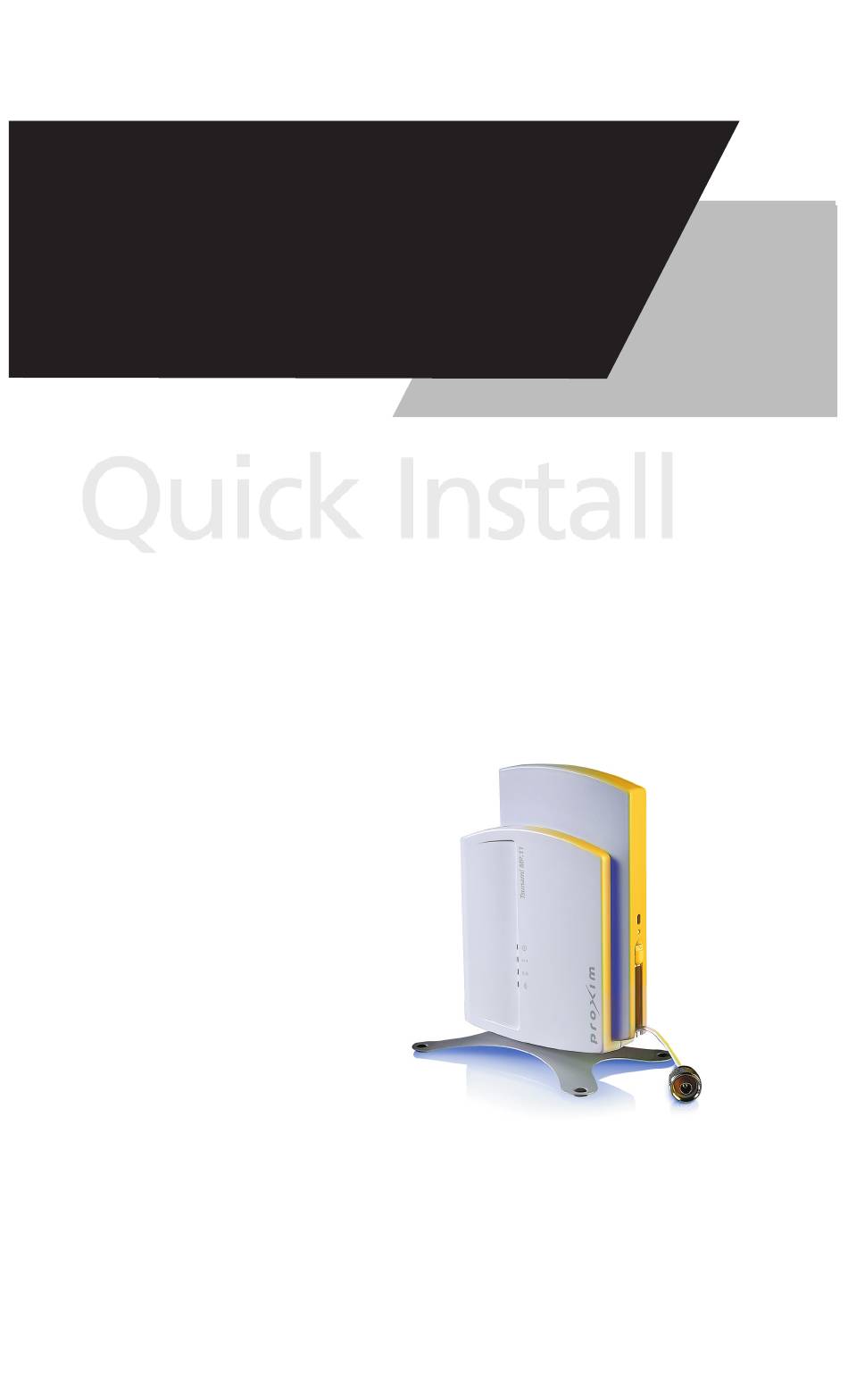

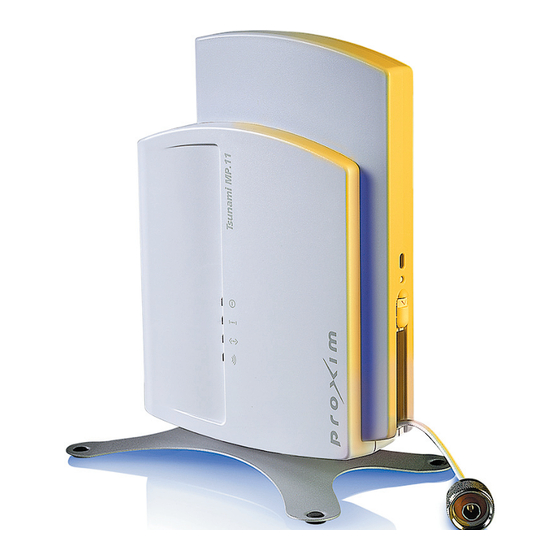

  • Page 1 Quick Install Guide Tsunami MP.11 5054 (MP.11a) Version 4.0 Part Number 73876 (Print version) Part Number 73873 (CD version)
  • Page 2 Proxim Wireless Corporation. trademarks Proxim is a registered trademark, and Tsunami and the Proxim logo are trademarks, of Proxim Wireless Corporation. All other trademarks mentioned herein are the property of their respective owners.
  • Page 3: Table Of Contents

    coNteNts Introduction ..............4 Package Contents ............5 Hardware and Software Installation ....... 7 Step 1: Choose a Location ..............8 Step 2: Unpack the Shipping Box ............9 Step 3: Attach Base (for Desktop or Ceiling Mounting only) ...... 10 Step 4: Remove Covers ............... 11 Step 5: Connect the Cables ..............
  • Page 4: Introduction

    Outdoor placement, close to the antenna, for significantly improved range and ease of installation ▪ Optional integrated antenna ▪ VLAN support This document shows the basics of setting up the units. For detailed information, see the Installation and Management manual. Page  Copyright © 007 Proxim Wireless...
  • Page 5: Package Contents

    Each 5054 (MP.11a) shipment includes the items in the following table. Verify that you have received all parts of the shipment. Note: Unless listed here, cables are not included with the unit. Tsunami MP.11 5054 (MP.11a) unit Power Adaptor Mounting Stand Mounting Hardware Qty.
  • Page 6 1 ea Outdoor Mounting Configuration Flyer Indoor Antenna Qty. Description Mounting Hardware and 2 ea. Screw Documentation (included with 5054-RSU-xx-WA) 2 ea. Washer 2 ea. Suction Cup/Rotation Bar 1 ea. Indoor Mounting Configuration Flyer Page 6 Copyright © 007 Proxim Wireless...
  • Page 7: Hardware And Software Installation

    Hardware aNd soFtware iNstallatioN IMPORTANT! IMPORTANT! Before installing this product, see Safety and Regulatory Compliance Before installing this product, see Safety and Regulatory Compliance Information on the product CD for important information. Information on the product CD for important information. IMPORTANT! IMPORTANT! All units must be installed by a suitably trained professional installation All units must be installed by a suitably trained professional installation technician or by a qualified installation service.
  • Page 8: Step 1: Choose A Location

    To make optimal use of the 5054, you must find a suitable location for the hardware. The range of the unit largely depends upon the position of the antenna. Proxim recommends you do a site survey, observing the following requirements, before mounting the 5054 hardware.
  • Page 9: Step 2: Unpack The Shipping Box

    Note the Ethernet and MAC addresses of the unit, as well as the serial number. The addresses may be used when configuring the unit. The serial number is required to obtain support from Proxim. Keep this information in a safe place.
  • Page 10: Step 3: Attach Base (For Desktop Or Ceiling Mounting Only)

    Insert the posts in the metal base into the holes on the bottom of the 5054 unit. Using a Phillips-head screwdriver, tighten the screws on the bottom of the metal base to securely attach the base to the unit. Page 10 Copyright © 007 Proxim Wireless...
  • Page 11: Step 4: Remove Covers

    step 4: remove covers In order to cable the unit for operation, you must first remove the front, back, and cable covers. Unlock the unit’s cable cover by pressing down on the cable cover lock located on the side of the unit. Pull the thin arm of the cable cover away from the unit and upward to remove the cable cover.
  • Page 12: Step 5: Connect The Cables

    Ethernet cable. If you are not using Active Ethernet, or you want to connect the 5054 to Active Ethernet and AC power simultaneously, attach the AC power cable to the unit’s power port. Page 1 Copyright © 007 Proxim Wireless...
  • Page 13: Step 6: Mount The Unit

    step 6: Mount the unit Choose from the following mounting options: ▪ Desktop Mount ▪ Wall Mount ▪ Ceiling Mount desktop Mount Fit the radio inside the back cover, with the serial connection and LED indicators facing out. Replace the front cover, threading the cables through the opening at the lower right side of the cover.
  • Page 14 Fit the radio inside the back cover, with the serial connection and LED indicators facing out. Replace the front cover, threading the cables through the opening at the lower right side of the cover. Page 1 Copyright © 007 Proxim Wireless...
  • Page 15 Replace the cable cover (figure A), ensuring that the release latch clicks upwards to the closed position (figure B). All rights reserved Page 1...
  • Page 16 Step 3: Attach Base (for Desktop or Ceiling Mounting only). Feed a mounting screw through each of the four rubber feet. The 5054 comes with four 3.5 mm x 40 mm pan-head screws. Page 16 Copyright © 007 Proxim Wireless...
  • Page 17 Remove the screws from the rubber feet. With the 5054 turned upside down, position the base against the ceiling where you want to mount the unit. Mark the center of the four mounting holes in the rubber feet. Set the 5054 aside and drill a hole at each of the locations you marked. Each hole should be wide enough to hold a mounting plug (6 mm x 35 mm).
  • Page 18: Step 7: Power On The Unit

    If connected to a PoE hub and an AC power supply simultaneously, the radio draws power from PoE. ▪ The cable length between the PoE hub and the radio should not exceed 100 meters (approximately 325 feet). Page 18 Copyright © 007 Proxim Wireless...
  • Page 19: Step 8: View Leds

    step 8: View leds When the unit is powered on, the 5054 performs startup diagnostics. When startup is completed, the LEDs show the operational state of the 5054 (see the following figure). The following table shows the status of the LEDs when the 5054 is operational (the fourth LED is only used during Dynamic Frequency Selection on a BSU).
  • Page 20 Blinking Data is Amber being sent at 100 Mbps. A fatal error in An error There is a the unit. in data fatal error on transfer. the wireless interface. Page 0 Copyright © 007 Proxim Wireless...
  • Page 21: Step 9: Align The Antenna

    step 9: align the antenna Antenna alignment is the process of physically aligning the antenna of the radio receiver and transmitter to have the best possible link established between them. The antenna alignment process is usually performed during installation and after major repairs. Antenna Alignment Display (AAD) provides a measurement of signal quality in an easy-to-interpret manner—a numeric printed signal value at the CLI and serial ports.
  • Page 22: Step 10: Attach Kensington Security Lock (Optional)

    The Kensington Security Slot is shown in the following figures. Figure A shows the slot with the unit’s covers attached; figure B shows the slot with the unit’s covers removed). For information about Kensington security solutions, go to http://www.kensington.com. Page  Copyright © 007 Proxim Wireless...
  • Page 23: Step 11: Install Documentation And Software

    step 11: install documentation and software To install the documentation and software on a computer or network: Place the CD in a CD-ROM drive. The installer normally starts automatically. (If the installation program does not start automatically, double click setup.exe on the installation CD.) The following documentation and software products are installed: ▪...
  • Page 24: Initialization

    To set the IP address manually, ensure that Static is selected as the IP Address Type and fill in the IP Address and Subnet Mask suitable for the LAN subnet to which the unit is connected. Page  Copyright © 007 Proxim Wireless...
  • Page 25: Accessing The Web Browser

    To set the IP address dynamically, ensure that Dynamic is selected as the IP Address Type. The unit will request its IP address from a DHCP server on your network. Enter the Read/Write Password (the default value is public) and click OK to confirm your changes.
  • Page 26 You still need the CLI password of the unit. Proxim recommends you power off the radio and the computer before connecting or disconnecting the serial cable.
  • Page 27: Basic Configuration

    Basic coNFiguratioN System Configuration The System configuration page lets you change the unit’s System Name, Location, and so on. In addition, this page provides a selectable Country field that automatically provides the allowed bandwidth and frequencies for the selected country. Units sold only in the United States are pre-configured to scan and display only the outdoor frequencies permitted by the FCC.
  • Page 28: Ip Configuration

    VLAN implementation in the Tsunami MP.11 products includes: ▪ Letting the BSU and SU be used in a VLAN-aware network ▪ Processing IEEE 802.1Q VLAN-tagged packets Network resources behind the BSU and SU can be assigned to logical groups. Page 8 Copyright © 007 Proxim Wireless...
  • Page 29: Security Settings

    Proxim Web site. Note: Not all software releases support all Tsunami MP.11 products. Proxim recommends that you always refer to the Release Notes to determine whether the version of software to which you want to upgrade is supported on your product.
  • Page 30: Default Settings

    Enabled Telnet Management Interface Enabled HTTP Management Interface Enabled HTTP Port Telnet Port Telnet Login Timeout Telnet Session Timeout Password public Maximum Satellites (per BSU) MAC Authentication Disabled Radius Authentication Disabled Encryption Disabled Page 30 Copyright © 007 Proxim Wireless...
  • Page 31 Feature Default Static MAC Address Filter Disabled / No Entries Ethernet Protocol Filtering All Filters Disabled Announcement Period (when 100 ms roaming enabled) Multi-Frame Bursting Enabled Storm Threshold Broadcast/Multicast Unlimited Broadcast Protocol Filtering All Protocols Allowed Dynamic Data Rate Selection Disabled Roaming Disabled...
  • Page 32: Technical Services And Support

    If you are having trouble utilizing your Proxim product, please review the Installation and Management manual and the additional documentation provided with your product. If you require additional support, please refer to the “Technical Services and Support” chapter in the Installation and Management manual for details about the information you will need to gather before using the Support Options listed below.
